• Model NO.：KQ 100L -30000
• Application：Milk, Dairy, Milk, Juice, Beverage
• Customized：Accept
• Name：5000L 10000L Dounce 250 Bar Milk Juice Homogenize
• Material：Stainless Steel 304,316
• Homogenizer Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Capacity：50L,H-10000L,H
• Pressure：250 Bar to 700bar

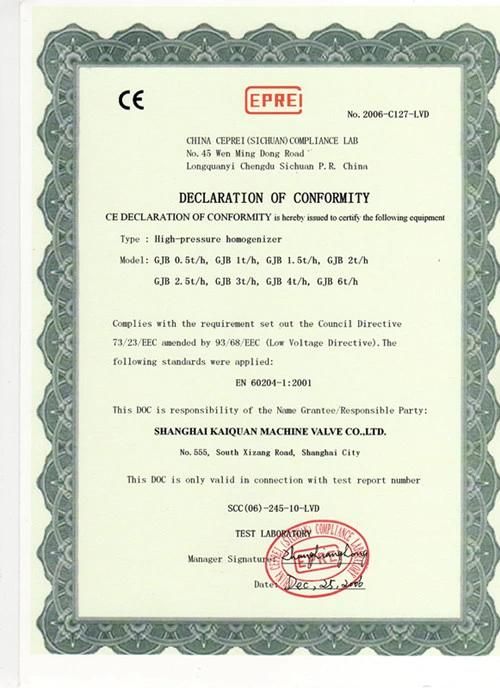

• Homogenizer Certificate：CE, ISO
• Motor Brand：Siemens ,ABB ,China Brand
• High Pressure Homogenizer：Customized Electricity Motor
• Homogenization Effect：to 2 Um Liquid
• Homogenizer Working Life：More Than 10years
• English Manual Instruction：Provide
• Packing：Wooden Box
• Voltage ,Hz ,Phase：Make It to Your Order
• MOQ：1set
• Spare Parts：Available
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ 100L -30000 Application Milk, Dairy, Milk, Juice, Beverage Customized Accept Name 5000L 10000L Dounce 250 Bar Milk Juice Homogenize Material Stainless Steel 304/316 Homogenizer Appication Milk , Juice, Beverage, Butter, Honey, Cream Capacity 50L/H-10000L/H Pressure 250 Bar to 700bar Homogenizer Certificate CE, ISO Motor Brand Siemens /ABB /China Brand High Pressure Homogenizer Customized Electricity Motor Homogenization Effect to 2 Um Liquid Homogenizer Working Life More Than 10years English Manual Instruction Provide Packing Wooden Box Voltage ,Hz ,Phase Make It to Your Order MOQ 1set Spare Parts Available Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

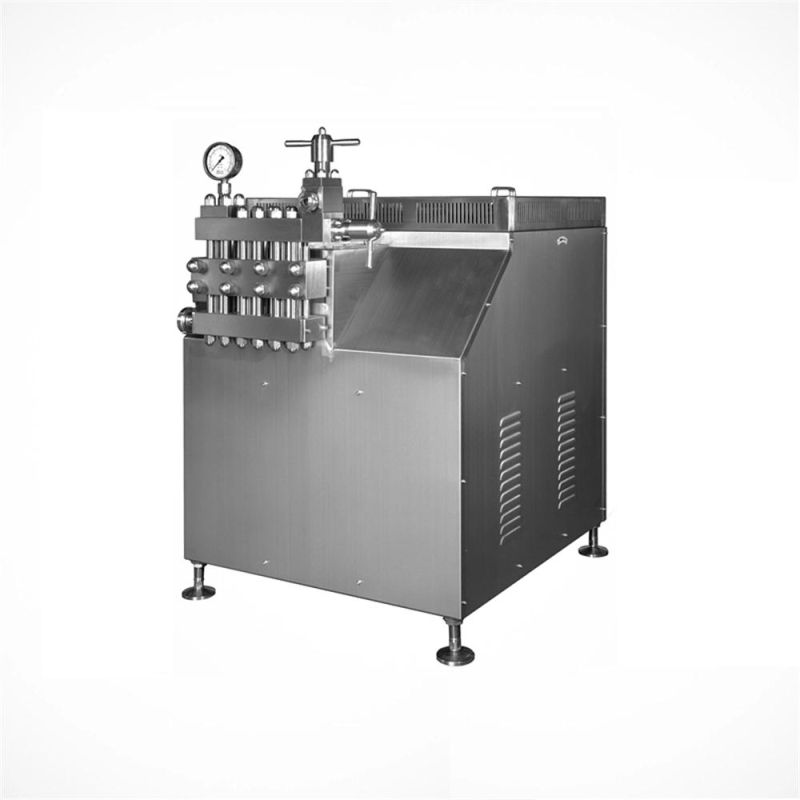

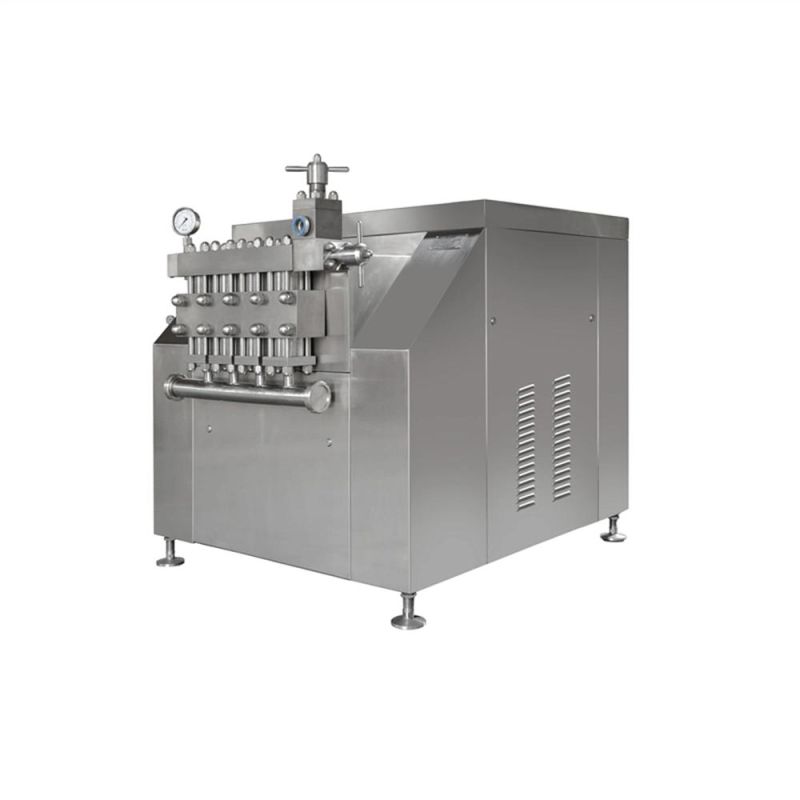

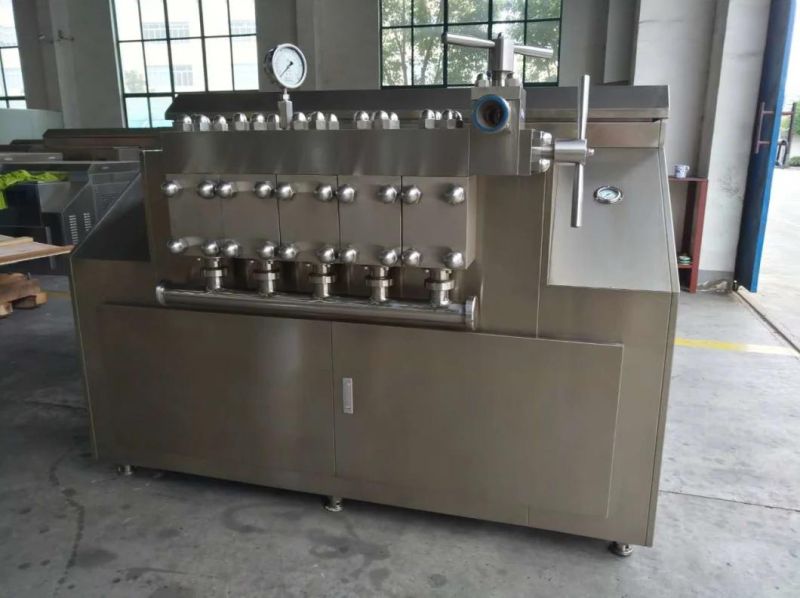

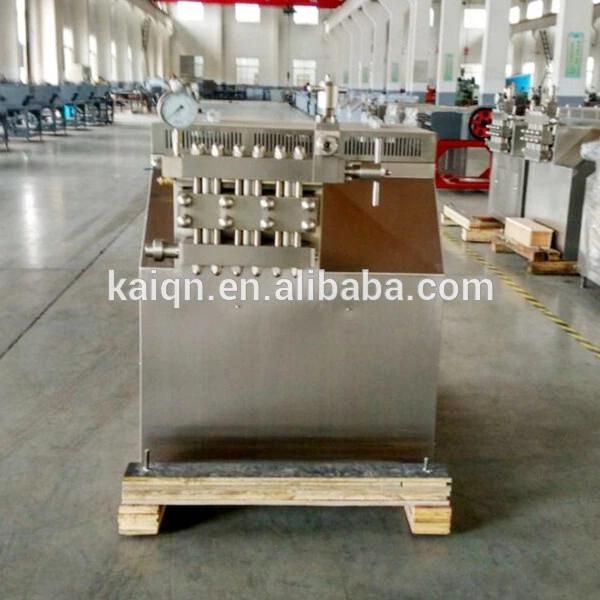

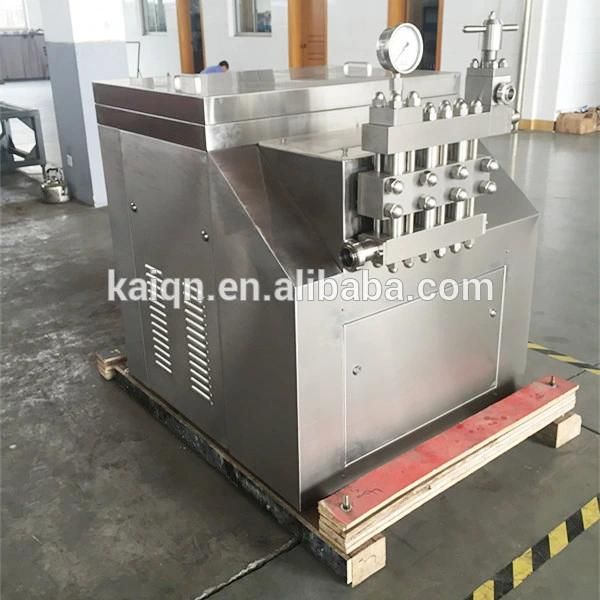

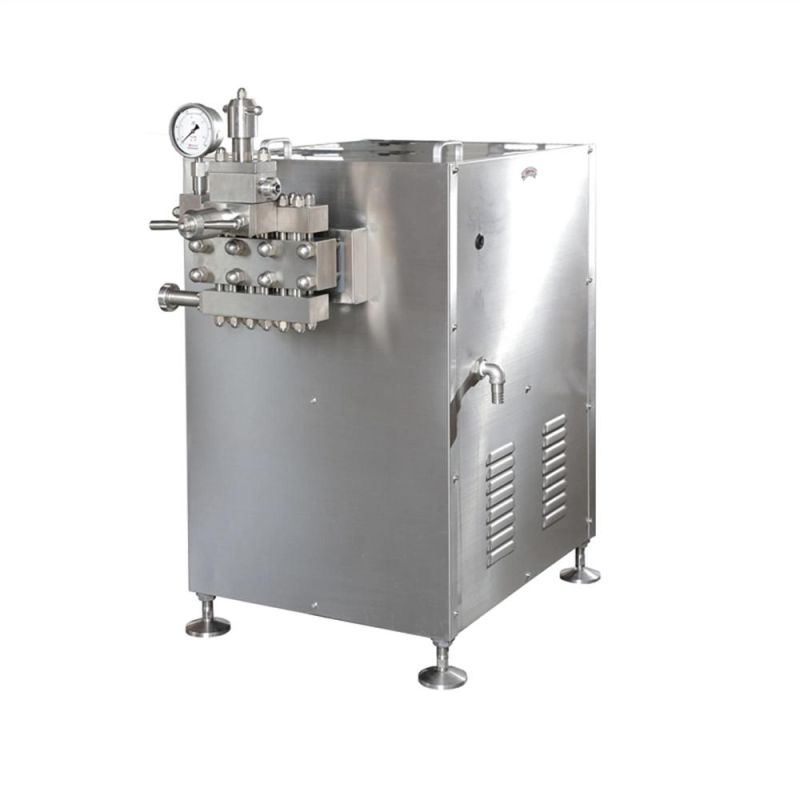

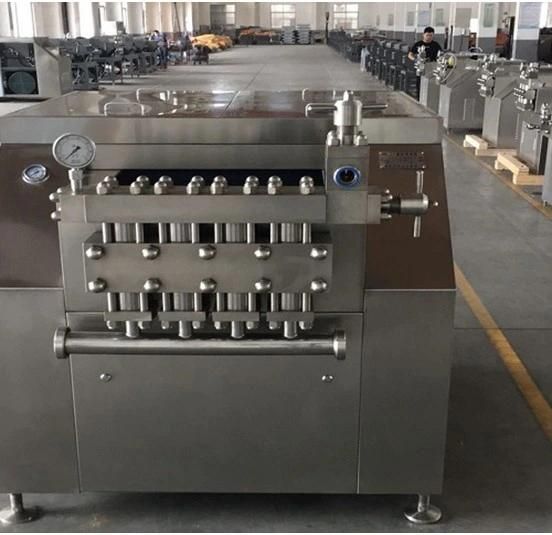

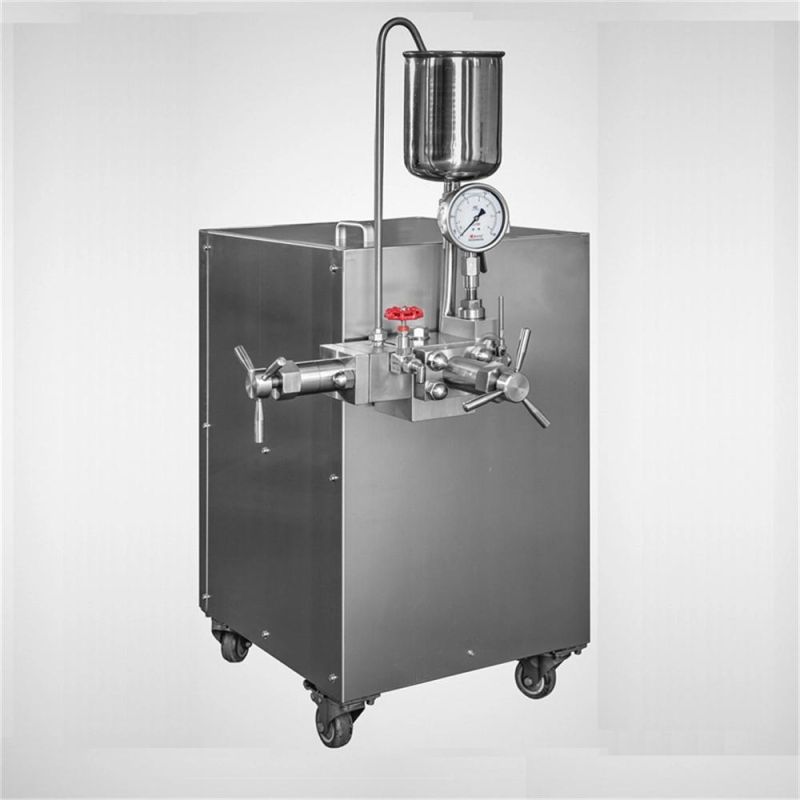

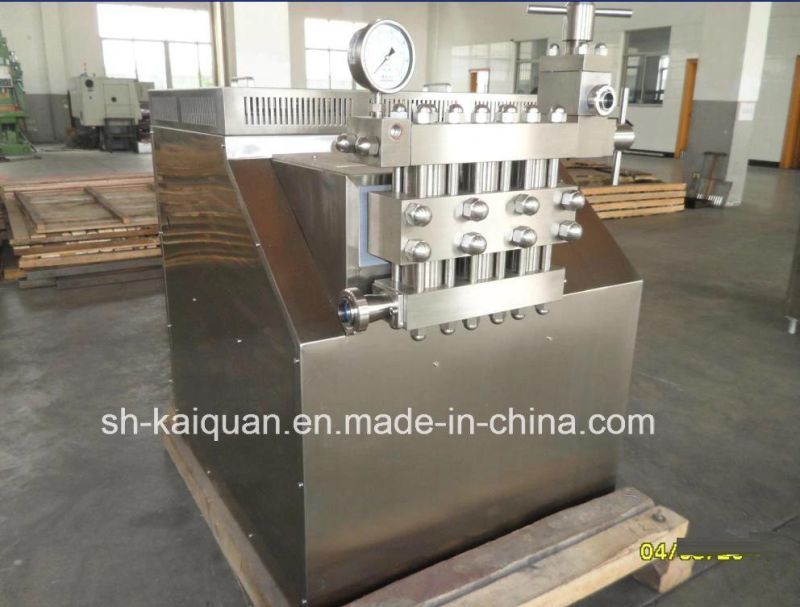

5000L 10000L Dounce  250 Bar Milk Juice Homogenizer Supplier





series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7
