Chiller Storage Chilling Milk Cooling Vat 1000L 2000L 3000L 4000L
Shanghai Kaiquan Machine Valve Co., Ltd.- Process：Thermal Processing
- Power Source：Electric
- Certification：CE, MET, CSA, UL, SA8000, ISO9001
- Automatic Grade：Automatic
- Application：Milk
- Customized：Customized
Base Info
- Model NO.：KQ1000; KQ 2000; KQ 3000
- Name：Chiller Storage Chilling Milk Cooling Vat 1000L 2
- Milk Cooling Tank Compressor：USA Copeland
- Refrigerant：R404
- Milk Tankapplication：Cooling and Storage Fresh Milk
- Milk Transportation Tank：Also Provided
- Milk Cooling Tank Inside and Outside：Mirror Polished
- Tank Material：Ss 304,316
- Mixer Speed：36rpm
- CIP Cleaning Ball：Provided
- Delivery：10days After Get Your Advance Payment
- Motor：Siemens
- Working Life：More Than 10 Years .
- Warranty：One Year
- OEM：Yes
- Voltage /Hz /Phase：Make It to Your Order
- Transport Package：Wooden Box
- Specification：SANITARY, FOOD GRADE
- Trademark：Kaiqncn
- Origin：Shanghai, China
- HS Code：8479820090
- Production Capacity：1000 to 10000L
Description
Basic Info.
Model NO. KQ1000; KQ 2000; KQ 3000 Name Chiller Storage Chilling Milk Cooling Vat 1000L 2 Milk Cooling Tank Compressor USA Copeland Refrigerant R404 Milk Tankapplication Cooling and Storage Fresh Milk Milk Transportation Tank Also Provided Milk Cooling Tank Inside and Outside Mirror Polished Tank Material Ss 304/316 Mixer Speed 36rpm CIP Cleaning Ball Provided Delivery 10days After Get Your Advance Payment Motor Siemens Working Life More Than 10 Years . Warranty One Year OEM Yes Voltage /Hz /Phase Make It to Your Order Transport Package Wooden Box Specification SANITARY, FOOD GRADE Trademark Kaiqncn Origin Shanghai, China HS Code 8479820090 Production Capacity 1000 to 10000LProduct Description

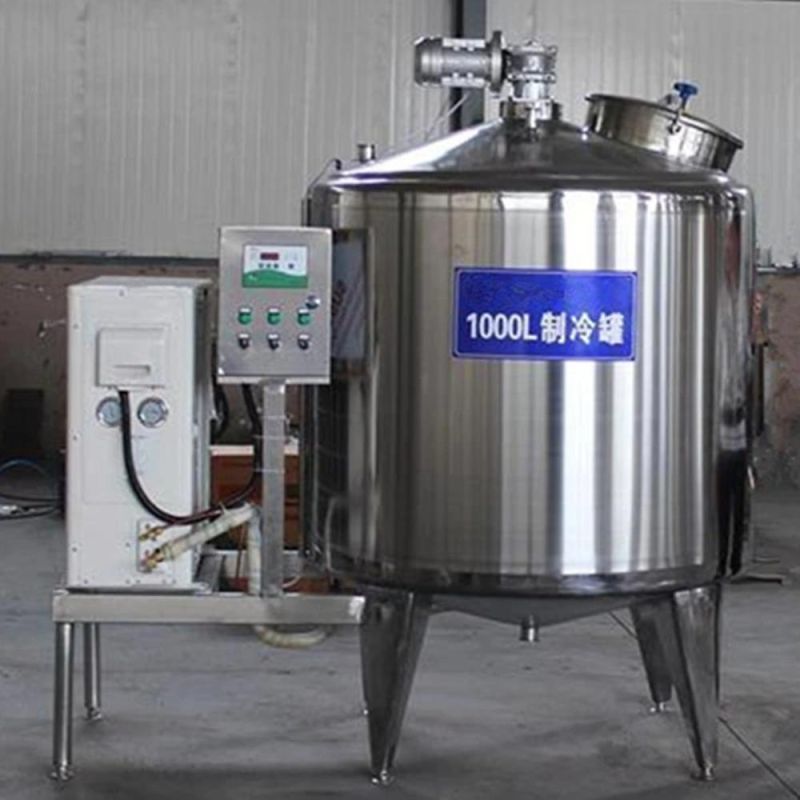

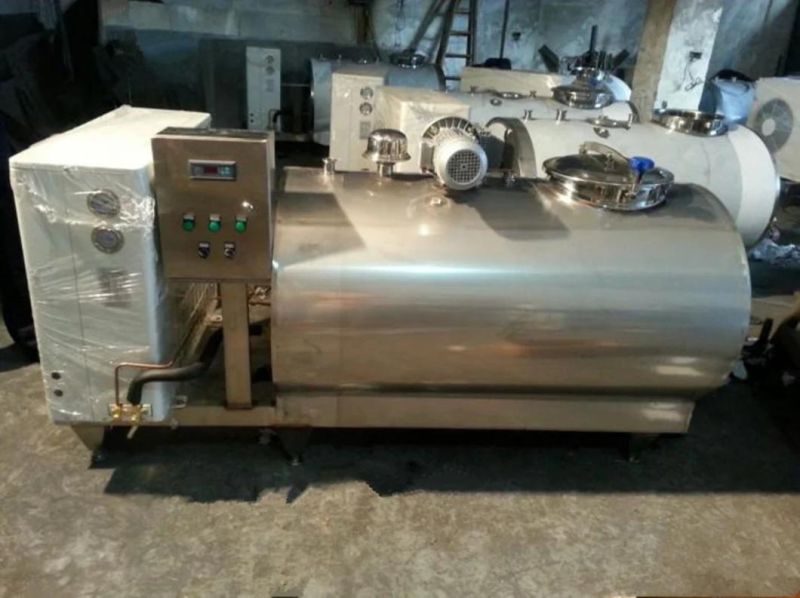

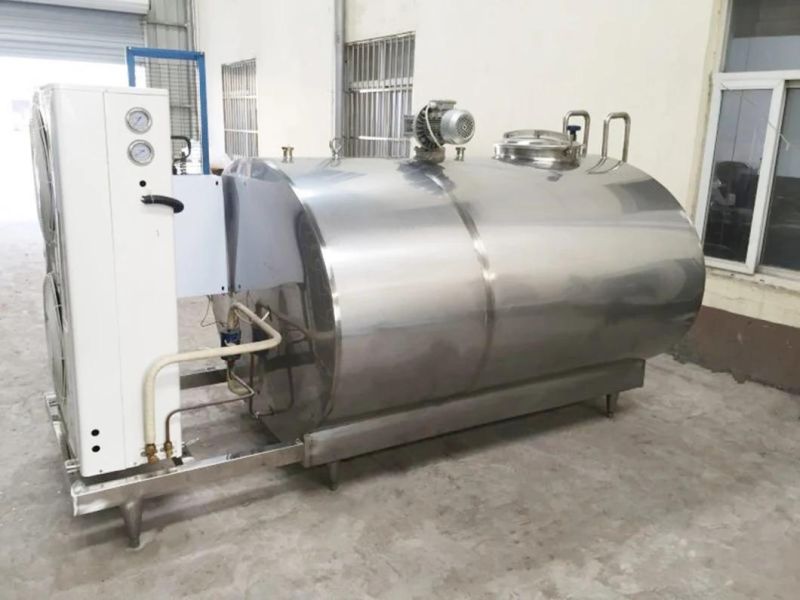

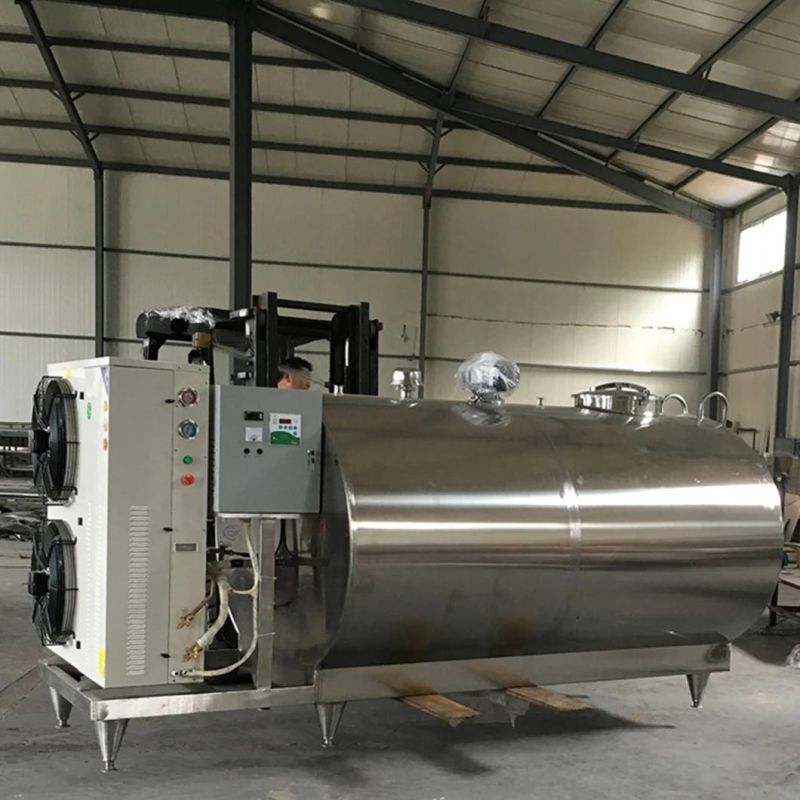

Chiller Storage Chilling Milk Cooling Vat 1000L 2000L 3000L 4000L
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.
| Type | KQ-1T Vertical type | KQ-2T Laying type | KQ-3T Laying type | KQ-5T Laying type | KQ-6T Laying type | KQ-8T Laying type | KQ-10T Laying type |
| Capacity( L) | 1000 | 2000 | 3000 | 5000 | 6000 | 8000 | 10000L |
| Refrigerating Output (W) | 9000 | 15000 | 22000 | 37000 | 38000 | 55000 | 74000 |
| Refrigerating Fluid(R) | R404/R22 | R404/R22 | R404/R22 | R404/R22 | R404/R22 | R404/R22 | R404/R22 |
| Insulating Property | ≤ 1C/4h | ≤1C/4h | ≤1 C /5h | ≤1 C /5h | ≤1 C /5h | ≤1 C /5h | ≤1 C /6h |
| Agitator Speed | 36r/min | 36r/min | 36r/min | 36r/min | 36r/min | 36r/min | 36r/min |
| Power (Kw) | 3.8 | 5.9 | 7.5 | 10.5 | 11 | 13 | 19.2 |
| Voltage | 380V/50Hz,3phases | 380V/50Hz,3phases | 380V/50Hz,3phases | 380V/50Hz, 3phases | 380V/50Hz, 3phases | 380V/50Hz, 3phases | 380V/50Hz, 3phases |
| Dimension(mm) | 1800*1200*1500 | 3400*1550*1750 | 3600*1700*1900 | 3900*2050*2150 | 4500*2050*2150 | 6300*2050*2250 | 8000 * 2100 * 2400 |
| Weight(Approximately) | 0.6T | 0.75T | 0.9T | 1.1T | 1.3T | 1.8T |
