High Quality Stainless Steel Tank Tank Price Tank Supplier
Shanghai Kaiquan Machine Valve Co., Ltd.- Process:Mild Processing
- Power Source:Electric
- Certification:CE, MET, CSA
- Automatic Grade:Automatic
- Application:Milk, Yogurt, Milk Powder, Cheese
- Customized:Customized
Base Info
- Model NO.:KQ100L-30000L
- Name and Description:High Quality Stainless Steel Tank Tank Price Tank
- Material:Stainless Steel 304,316
- Tank Capacity Model Number:200L~10000L
- Ice Cream Tank Polish:Mirror Polish, Sub-Light
- Place of Origin:Shanghai China
- Voltage:220V,380V,50Hz
- Product Application:Liquid, Viscous Fluid, Liquid with Suspended Solid
- Heating and Cooling Tank Application:Milk Pasteurizer, Yogurt Fermentation, Icecream
- Tank Construction:Inside Wall, Jacket Wall, Outside Wall
- Delivery:10 Days
- Transport Package:Standard
- Specification:ISO
- Trademark:KQ
- Origin:China
- HS Code:8479820090
- Production Capacity:1000
Description
Basic Info.
Model NO. KQ100L-30000L Name and Description High Quality Stainless Steel Tank Tank Price Tank Material Stainless Steel 304/316 Tank Capacity Model Number 200L~10000L Ice Cream Tank Polish Mirror Polish, Sub-Light Place of Origin Shanghai China Voltage 220V/380V,50Hz Product Application Liquid, Viscous Fluid, Liquid with Suspended Solid Heating and Cooling Tank Application Milk Pasteurizer, Yogurt Fermentation, Icecream Tank Construction Inside Wall, Jacket Wall, Outside Wall Delivery 10 Days Transport Package Standard Specification ISO Trademark KQ Origin China HS Code 8479820090 Production Capacity 1000Product Description
High Quality Stainless Steel Tank Tank Price Tank SupplierHigh Quality Stainless Steel Tank Price
1). SUS316L or SUS304
2). Can mix the liquid, fluid
3), Capaciy: 100L~10000L
4), application: Food, beverage, pharmaceutical, chemical, etc.
1 | sugar mixing tank |
TankCapacity(L) | 200, SS304 | 300, SS304 | 500, SS304 | 1000,SS304 |
REV | 36r/min | 36r/min | 36r/min | 36r/min |
Electric motor of the agitator | 0.55KW,380v,50hz | 0.75KW,380v,50hz | 0.75KW,380v,50hz | 1.1KW,380v,50hz |
Heating Area(M2) | 0.9 | 1.1 | 1.9 | 4.5 |
Material Input/output(DN MM) | 38 | 38 | 38 | 50 |
OUTSIDE DEMENSION(L*W*H)MM | 900*900*1600 | 1000*1000*1500 | 1100*1100*1700 | 1400*1 |
Brief description

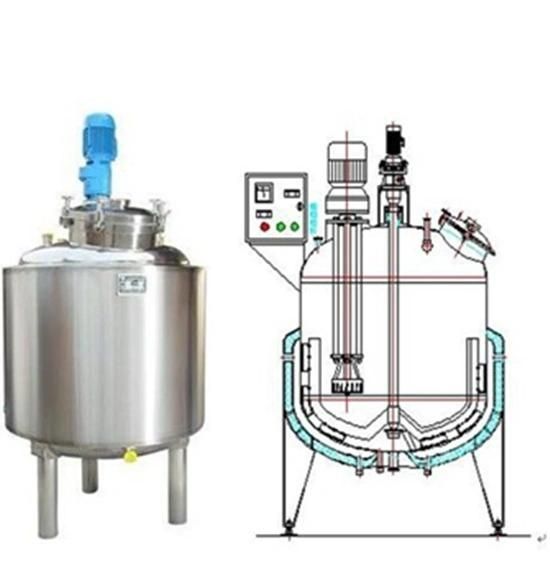

This liquid mixing tank with agitator combines the function of mixing, blending, dissolving, heating, cooling, circulation, etc. Suit for mixing and blending various materials.
Application:
The liquid mixing and blending tank is applied to reaction agitating of liquid scrubbing, textile assistant, medicine chemistry, food, beverage, perfume, perfumery compound, etc
Also applied to the products of homogenization, emulsifying, particle dispersion, etc
Feature:
1: Blending system adopts single-direction or double-direction wall scraping blending to satisfy different technological requirement
2: Frequency conversion speed adjustment.
3: Material can be heated or cooled according to tech stand mixer nological requirements
4: Electric heating or steam heating
5: Various forms of blending vanes are suitable for production of different types of products.
6: Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing
7: Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
8: The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed, etc
9: High-speed disperse (homogenizer) strongly mixed decentralized thick, solid, liquid.
Cosmetic producing machine; Cosmetic producing machine; Cosmetic producing tank; Daily chemical stirring vessel; Detergent agitator boiler; Detergent agitator pot; Stainless steel blending pot; Stainless steel blending machine; Stainless steel blending tank; Stand mixer; Static mixer
