• Model NO.：HT-LZ0.5
• Wattenty Perid：2 years
• Material：Stainless Steel
• Capacity：0.5 T,H
• Spiral Diameter：φ88mm
• Stainer Aperture：φ0.6mm
• Weight：85KG
• Transport Package：Fumigation-Free Wooden Case
• Specification：780*320*860mm
• Trademark：Hento
• Origin：Henan, China
• Production Capacity：300sets,Month

Basic Info.

Model NO. HT-LZ0.5 Wattenty Perid 2 years Material Stainless Steel Capacity 0.5 T/H Spiral Diameter φ88mm Stainer Aperture φ0.6mm Weight 85KG Transport Package Fumigation-Free Wooden Case Specification 780*320*860mm Trademark Hento Origin Henan, China Production Capacity 300sets/Month

Product Description

Industrial Commercial Fruit / Sugar Cane / Orange Juicer


1. Machine introduction of Juice Machine:
This machine is applicable to be juicing various fruits,such as tomato,pineapple,apple and orange etc.It has the following features:

(1).screw propelling and extruding;
(2).Slag discharge part improved,suitable for pressing high-fiber materials such as leaf vegetables etc;
(3).Automatically finish the processes of juicing and slagging for fruits and vegetables,such as berries and pome fruits etc.

Main structure principle
The main component is to nuclear pulp, juice, leather through a pipe into the spiral juice machine, by screw, screw diameter along the bottom slag is expected to export direction gradually increase and pitch gradually reduce, when the material being spiral propulsion for spiral cavity volume shrinking, form for material crushing. Screw spindle rotation direction from the feed hopper to slag trough direction, as the clockwise direction. Raw material add to the feed hopper, under the propulsion of spiral compression, the squeezing the juice through a filter at the bottom of the gravy, while the waste and the conical part of the surge tank by screw formed between the annular gap discharge, pressure regulating head along the axial movement of adjustable gap size. From the slag trough of equipment used in clockwise (to the feed hopper depending on the rotation handwheel bearing seat, regulating the head to the left, the gap is narrowing, conversely gap bigger.) Change the size gap, changing the resistance of slag discharge, can change the rate of slag, but if the gap is too small, the strong pressure, part of slag particles with juice by filter out, although the juice increased, but the quality of juice relative decline, the size of the gap should be depending on the user's specific technical requirements. Achieve the goal of separatingjuice and residueautomatically.

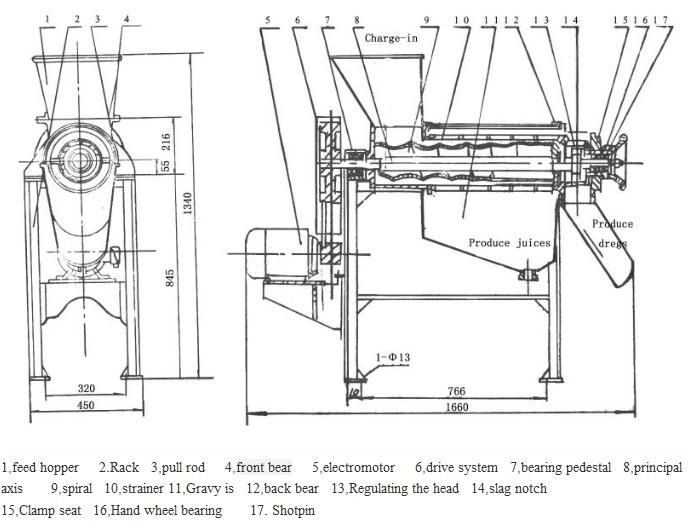

The structure diagram

Installation operation and maintenance
1, The machine must be installed level, and the ground screw fixation.
2, Operation: when the device is started, should adjust head make the annular gap, gap decreases, after meet the process requirements, with a fixed wheel brake bearing seat position.
3 And feed must be uniform, absolutely rigid foreign body into the hopper, so as not to damage the screen
4, Bearing: regular replacement of filling embellish clean grease, bearing normal temperature is less than 75 °C
5, Maintenance: after each class job must wash with water and brush filter. If the juice of the fiber is more fine filtration, must according to the condition of production, increase a wash between net, when pressing after all cleaning machine with hot water.

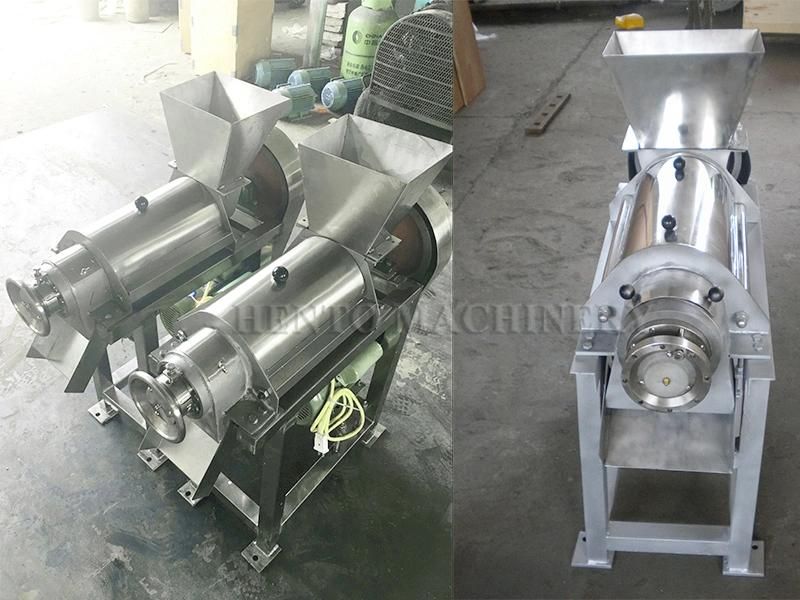

2.Machine Photos:

3.Technical Parameter:

Model	HT-LZ0.5	HT-LZ1	HT-LZ1.5	HT-LZ2.5	HT-LZ5
capacity	0.5 T/H	1T/H	1.5 T/H	2.5 T/H	5 T/H
Spiral diameter	φ88mm	φ125	φ175	φ250mm	φ400mm
Stainer aperture	φ0.6mm	φ0.6mm	φ0.5mm	φ0.6mm	φ0.6mm
Motor power	1.5 KW	2.2KW	4KW	15KW	30KW
weight	85KG	114KG	240KG	440KG	1300KG
Dimension	780×320×860mm	880×330×900mm	1300×700×1300mm	1540×700×1300mm	2530×944×1870mm

4.Company Certificate:


5.Our Customer:


6.Contact us:
If you need further information, please contact us freely, we will do our best to cooperate with you.
