• Model NO.：HT-TZJ30B
• Material：Stainless Steel
• Bowl inner：400mm
• Bowl speed：6500r,min
• Product：2000-3000L,H
• Separate factor：9120
• Sludge：PLC
• Power：7.5kw
• Weight：680kg
• Transport Package：Fumigation-Free Wooden Case
• Specification：1100*650*1550mm
• Trademark：HENTO
• Origin：Henan, China
• Production Capacity：300sets,Month

Basic Info.

Model NO. HT-TZJ30B Material Stainless Steel Bowl inner 400mm Bowl speed 6500r/min Product 2000-3000L/H Separate factor 9120 Sludge PLC Power 7.5kw Weight 680kg Transport Package Fumigation-Free Wooden Case Specification 1100*650*1550mm Trademark HENTO Origin Henan, China Production Capacity 300sets/Month

Product Description

Low Price High Quality Milk Separator In Dairy Equipment


1.Machine Introduction:
The milk cream separator is the most important equipment in dairy industry. Mainly used in the skim milk, butter, casein, cheese production, anhydrous butter production process, removing cream and foreign impurities in the milk. Similar materials can also be used for clarification and purification, such as coconut milk, fish oil, lemon oil.
 This product absorbs the advantage of the same kind foreign .Product in Germany and Russia. All the parts that may contact the feedstock are made of stainless steel. Available reduce the chemical effect of the feedstock and the machine spare parts.
  Power drive adopts the friction clutch, Transfer power by the fluid, start reliably, prevent overland. The bearings are SKF grade in Sweden, guarantee working precision of the machine.
The separator adopts the PLC automatic control system, can carry out automatic de-slugging, ability of fitness is stronger, automatic degree is high. Easy to adjust, worker labor strength is opposite to ease, the solids content ratio in the mixture fluid is widely.

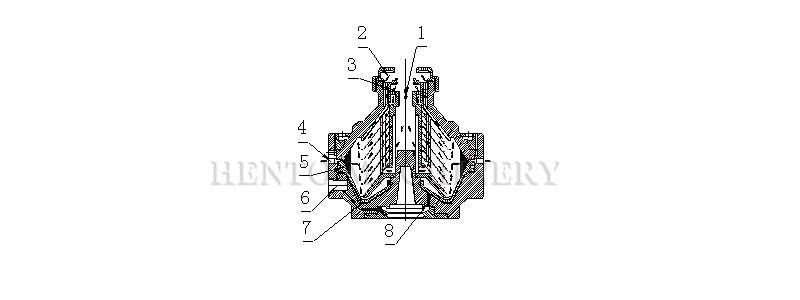

When working, the sealing water 8 is bumped into the sealing room 7, rising the sliding piston 5,and sediment ejection
hole 4 is shut down, then milk to be processed are fed to the bowl from feeding pipe 1, Under he effects of centrifugal force, the solids which has heavier density is collected on the bowl wall, After a while, the opening water 8 is bumped into the opening room 6, falling the sliding piston 5,open the sediment ejection hole 4, impurities are de-sludged from the bowl. The lighter liquid (cream) flow along the inner side of the discs into the passage in the upper distributor, the lighter product is discharged from the machine by the lower.centripetal pump 3.The heavier liquid(skim milk) flow along another passage, discharged from the machine by the upper centripetal pump 2.Thus the milk is separated well. The separator adopts self de-slugging and centripetal pump. Thus the machine can work continuously for a long time, attain good separation effects in.


2. Technical Parameters:

Model	HT-TZJ30B
Bowl inner	400mm
Bowl speed	6500r/min
Product	2000-3000L/H
Separate factor	9120
Fat output	Centripetal pump
Skim milk output	Centripetal pump
Sludge	PLC
Power	380v/7.5kw
Temperature	35-55 ºC
Fat in skim milk	0.015-0.04%
Weight	680kg
Dimension	1100*650*1550mm

3.Company Certificate:

4.Packing&Delivery:

5.Our Customer:

6.Contact us:
If you need further information, please contact us freely,  we will do our best to cooperate with you.
