• Model NO.：HT-T12
• Output Voltage：220V, Customized
• Co0lor：as Your Request
• Name：Food Dehydrator
• Application：Food Dehydrator
• Transport Package：Fumigation-Free Wooden Case
• Specification：CO
• Trademark：HENTO
• Origin：Henan, China
• Production Capacity：200sets,Month

Basic Info.

Model NO. HT-T12 Output Voltage 220V, Customized Co0lor as Your Request Name Food Dehydrator Application Food Dehydrator Transport Package Fumigation-Free Wooden Case Specification CO Trademark HENTO Origin Henan, China Production Capacity 200sets/Month

Product Description

                            Leaf Processing Line Tea Leaf Drying and Packing Machine

1. Machine introduction:

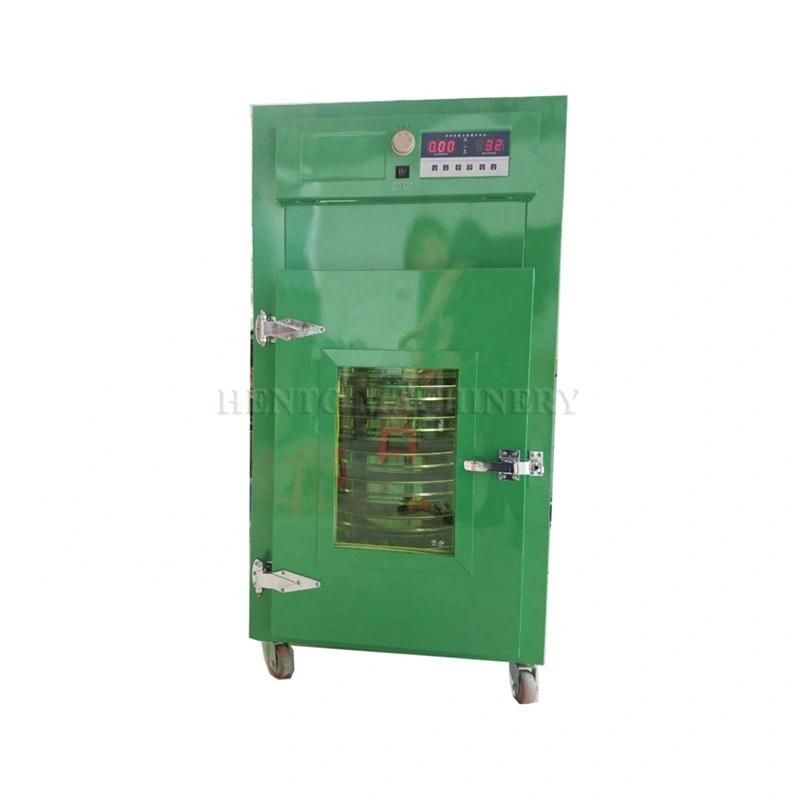

Leaf Dring Machine
1)Adopting hot air recycle system, each layer has wind outlet to keep uniform temperature.
2) Adjustable temperature control,thermostat settings and timer function.
3) With Ceramic fiber as insulation material, largely reduced power consumption.
4) Widely used for drying tea leaf, mushroom,dates,logan,medicine,seeds,sea food etc.

Model	HT-T09	HT-T12	HT-T16
Motor power	0.55KW	0.55KW	0.55KW
Heating power	4KW	6.55KW	12KW
Capacity	40-60kg/batch	70-90kg/batch	80-100kg/batch
Dimension	710*670*1370mm	960*818*1855mm	1180*1100*2080mm
Baking tray layers	9	12	16
Chamber Dimension	560*540*810mm	760*790*1085mm	990*960*1350mm
Voltage	220V	220V	380V
Weight	120kg	177kg	320kg

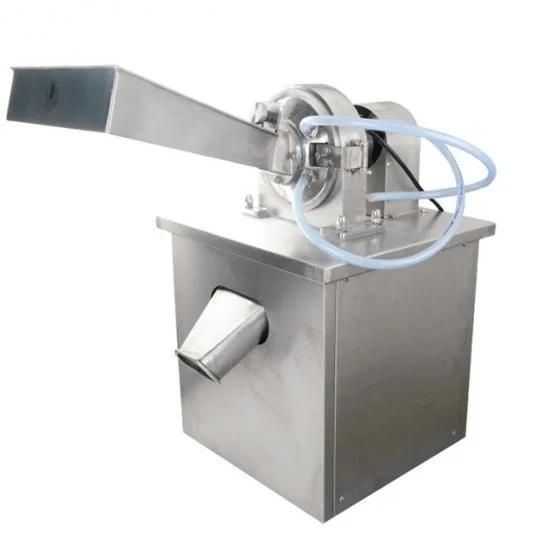

Leaf Grinding Machine
This machine is suitable for pharmaceutical, food, chemical, metallurgy, geology, agriculture, scientific research and other units, and is used for crushing and processing a variety of Chinese herbal medicines, precious herbs, ores and chemical raw materials.
The product uses 304 stainless steel and the fineness can reach 20-120 mesh. The working principle is that the motor drive machine spindle rotates at high speed, and the movable plate and the fixed plate collide with each other and rub against each other to obtain crushing. The pulverized material is subjected to the centrifugal force of rotation, and is filtered through the sieve hole and then enters the collecting bag.

Model	HT-MFJ180	HT-MFJ250	HT-MFJ350
Capacity	40-75kg/h	80-250kg/h	250-550kg/h
Power	3kw	5.5kw	7.5kw
Voltage	380V/50HZ	380V/50HZ	380V/50HZ
Mesh	10-120μm	10-120μm	10-120μm
Spindle speed	4500r/min	3400r/min	3800r/min
Dimension	556*450*900mm	765*575*1180mm	1167*630*1150mm
Weight	110kg	200kg	280kg

Powder Packing Machine
This Machine is used for packing the tea into small bags.
1.Automatic weighting,2-50g can be adjustment.
2.Automatic feeding, rotary button control speed, accurate and fast delivery of materials.
3.Automatic cutting, can be customized bag width, to meet the specifications of various bags.

Machine model	HT-BZC50	HT-BZC50
Function	weighing,filling,sealing and cutting (can add date coding machine)	weighing,filling,sealing and cutting (can add date coding machine)
Capacity	15-30 times/min	15-30 times/min
Sealing type	Trilateral seal	back seal
Packing accuracy	0.1-0.3g	0.1-0.3g
Formed Size	30-100mm	30-100mm
Film Width	60-200mm	60-200mm
Dimension	430*510*1400mm	430*510*1400mm
Weight	57kg	57kg
Voltage	220V 50HZ	220V 50HZ
Power	450w	450w
Material	Stainless steel	Stainless steel

3.Photo of Machine:


4.Company Certificate:


5.Packing&Delivery:


6.Our Customer:


7.Contact information:
If you need further information, please contact us freely, we will do our best to cooperate with you.
