• Model NO.：corn flour mill
• Press Series：Second
• Condition：New
• Customized：Customized
• Capacity：According to Customers′ Need
• Place of Origin：Henan, China (Mainland)
• Machine Test：Supported
• Transport Package：Seaworthy Wood Case
• Specification：CE, SGS, CCC, ISO
• Trademark：LY
• Origin：Jiaozuo of Henan Province
• HS Code：8437800000
• Production Capacity：5000 Sets Per Month

Basic Info.

Model NO. corn flour mill Press Series Second Condition New Customized Customized Capacity According to Customers′ Need Place of Origin Henan, China (Mainland) Machine Test Supported Transport Package Seaworthy Wood Case Specification CE, SGS, CCC, ISO Trademark LY Origin Jiaozuo of Henan Province HS Code 8437800000 Production Capacity 5000 Sets Per Month

Product Description

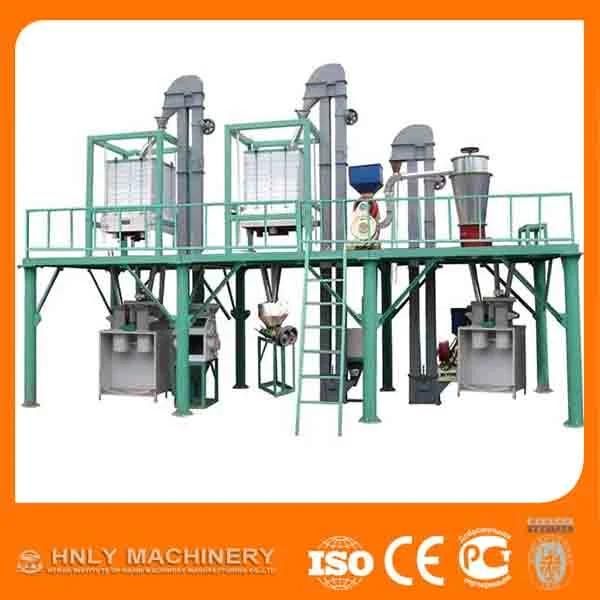

China supplier maize flour mill/small scale flour mill machinery/corn flour milling machine


Product Description

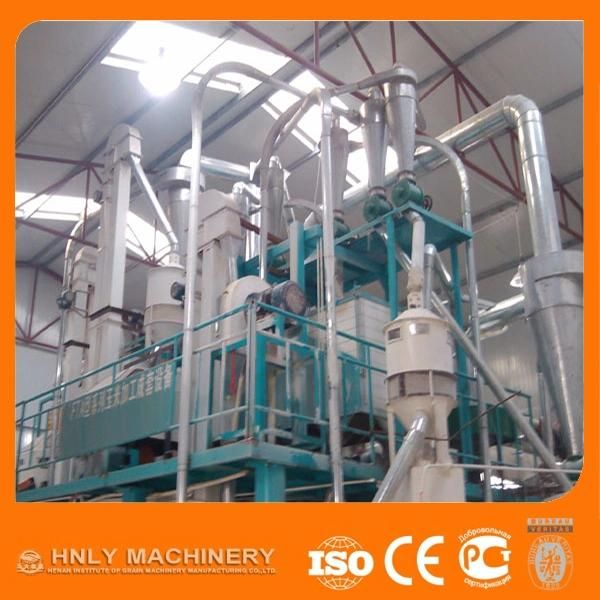

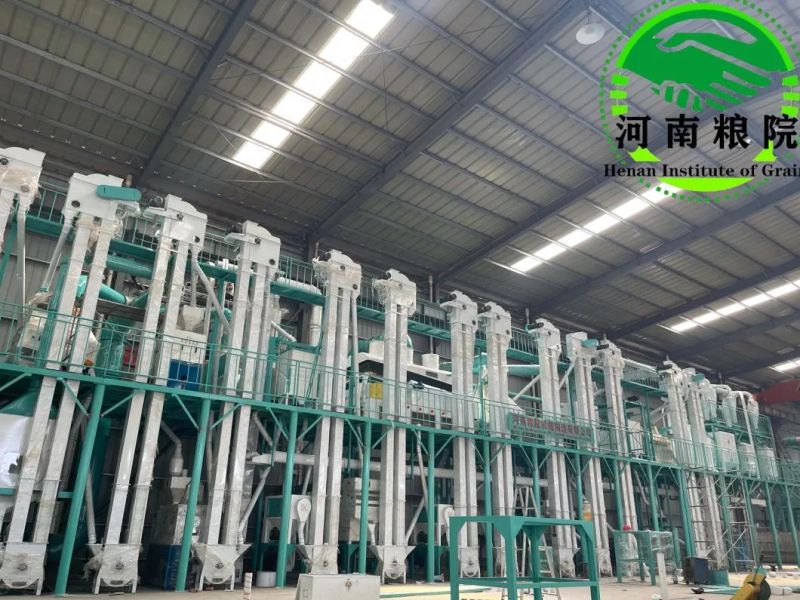

We can supply 5-500ton/day maize mill, maize flour mill and wheat flour milling machine complete line . The line consists of wheat/maize cleaning---wheat/maize milling---flour packing etc.

1. Roller Mills
1)The partitioned paneling and swingout feed module guarantee ideal access to the feeding and grinding rolls. This makes residue-free cleaning possible.
2) a pulse generator automatically adjust the feed material at the entrance door
3) temperature monitor (option)

2. Roller: Two different alloys with a mixing ratio allow the perfect balance to be achieved between hardness and roughness.

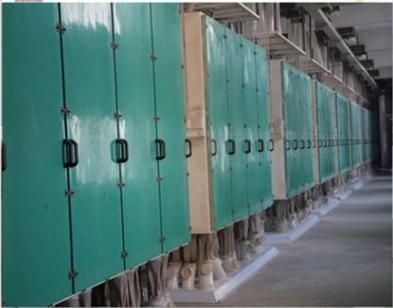

3. Plansifter
1) Material: High-strength alloy steel
2)up and down sifter circles with steel plate overall by bending
3)Transmission system using spring force component institutions
4)Sieve frames of wood coated with synthetic resin, without backwire
5)All the inside walls as well as the doors are provided with high-grade insulation
6)Vertical and horizontal clamping system

4. Degerminator: Dry degermination with low fat content. Combined with Europe, Asia and Africa Technology. Multi-faceted sieve tube design, the screen. The high-quality stainless steel nitriding treatment6FTF-50

Production Capacity: 50T/24H
Milling techniques and main machines:
4Break 4Reduction 1scratch 1 bran brushing
6-6F2235 Roller Mill, 4-6F2240 Roller mill, 4-83double section plansifter, 1-conveyor, 1-bran brusher.

Cleaning Techniques:
1 sifting-2 scouring-2 destoning-2 magnetic separating- 1 washing-1 air separating
2 sifting-2 scouring-2 destoning-3 magnetic separating-1 washing-1 air separating
Products and extraction rate(%): Grade 1 flour: ≥ 65%
Grade 2 flour: ≥ 75%
Standard flour: ≥ 80%
Flour Quality: Better than GB 1355-88(National Standard of China)
Power required(KW): Around 110
Size of Workshop(L*W*H, m): 30*7*7
