Fresh Milk Tank Raw Milk Tank Milk Tank Milk Storage Tank
Shanghai Kaiquan Machine Valve Co., Ltd.- After-sales Service：Online Service
- Warranty：One Year
- Process：Frozen and Chilled
- Power Source：Electric
- Certification：CE, MET, CSA, SA8000, ISO9001
- Automatic Grade：Automatic
Base Info
- Model NO.：KQ-10000L
- Application：Milk
- Customized：Customized
- Name & Description：Fresh Milk Tank Raw Milk Tank Milk Tank Milk Stora
- Material：Stainless Steel 304 ,316
- Cooling Temperature：-4 Degree
- Milk Cooling Tank Compressor：USA Copeland Compressor
- Refrigerant：R22,R404
- Milk Cooling Tank：Working Life More Than 10years
- Working Electricity：3phases
- Inside Polishe：Mirror Polished
- Delivery：10 Days
- Spare Parts：Avaiable
- MOQ：1set
- Packing：Wooden Box
- Control Box：Yes
- Capacity：100L-10000L
- OEM：Yes
- Transport Package：Standard Wooden Box
- Specification：ISO
- Trademark：KQ
- Origin：Shanghai, China
- HS Code：8479820090
Description
Basic Info.
Model NO. KQ-10000L Application Milk Customized Customized Name & Description Fresh Milk Tank Raw Milk Tank Milk Tank Milk Stora Material Stainless Steel 304 /316 Cooling Temperature -4 Degree Milk Cooling Tank Compressor USA Copeland Compressor Refrigerant R22/R404 Milk Cooling Tank Working Life More Than 10years Working Electricity 3phases Inside Polishe Mirror Polished Delivery 10 Days Spare Parts Avaiable MOQ 1set Packing Wooden Box Control Box Yes Capacity 100L-10000L OEM Yes Transport Package Standard Wooden Box Specification ISO Trademark KQ Origin Shanghai, China HS Code 8479820090Product Description

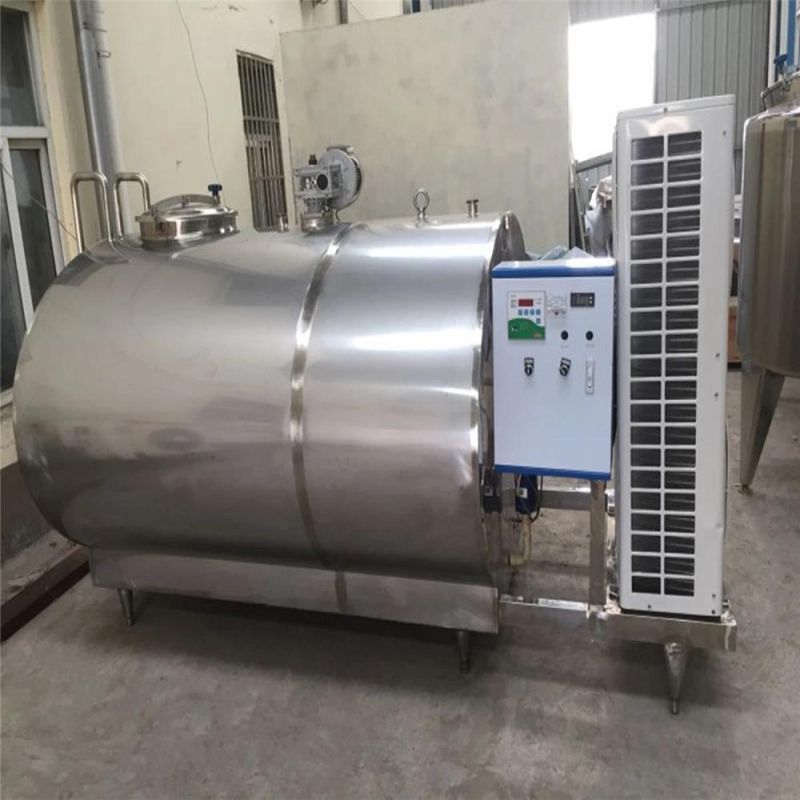

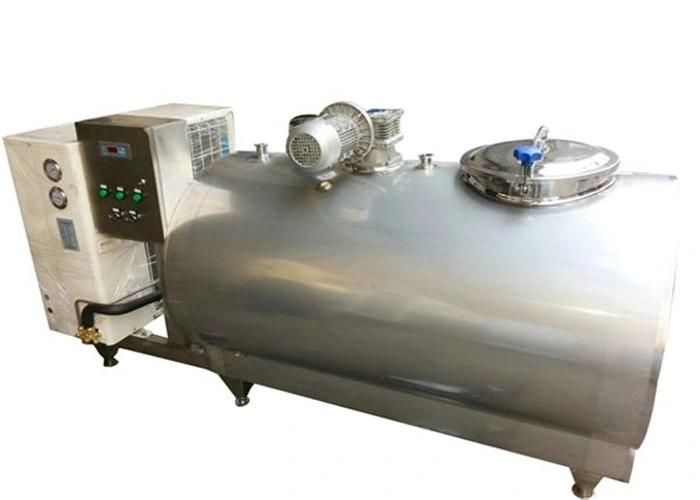

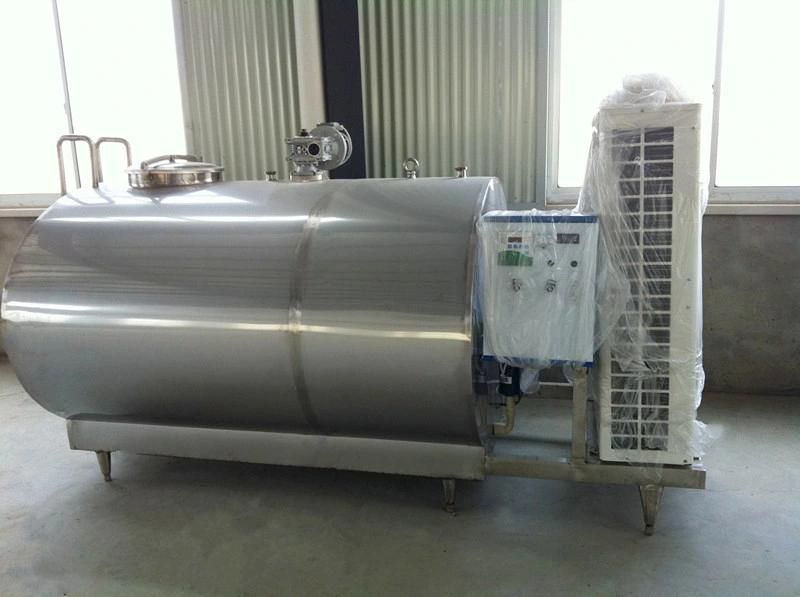

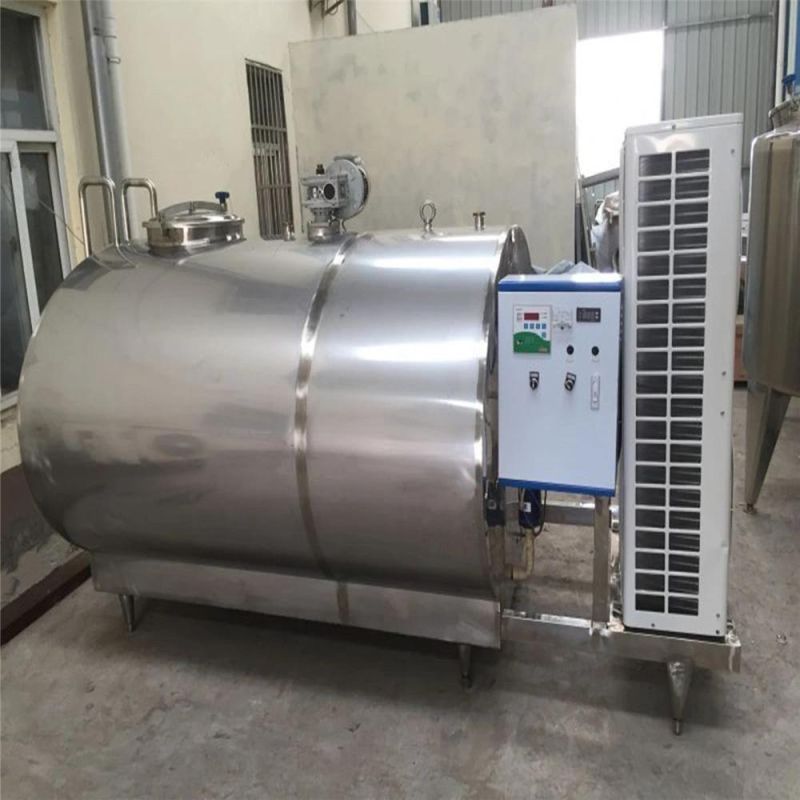

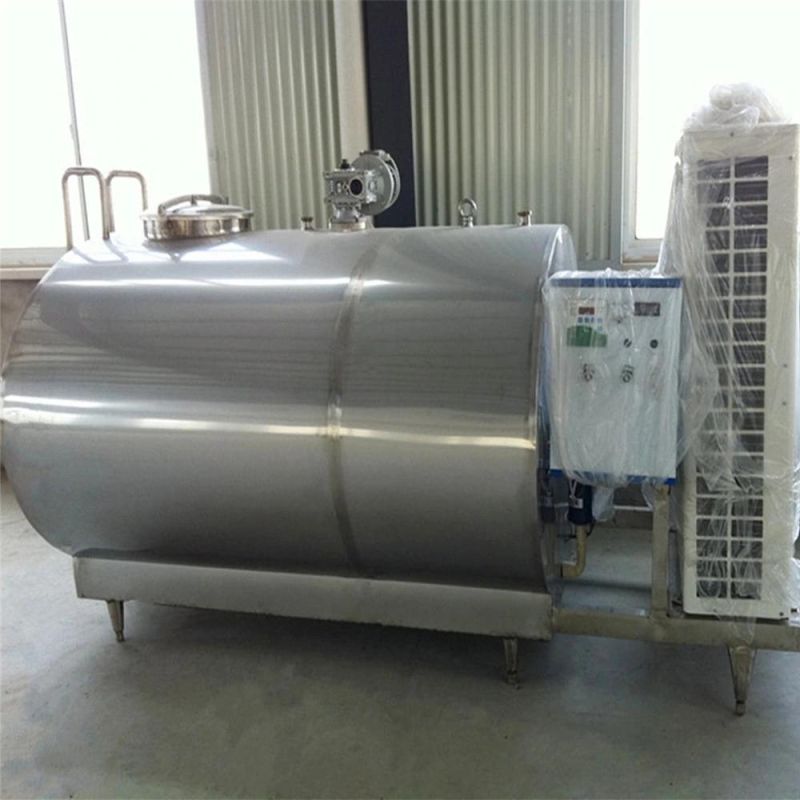

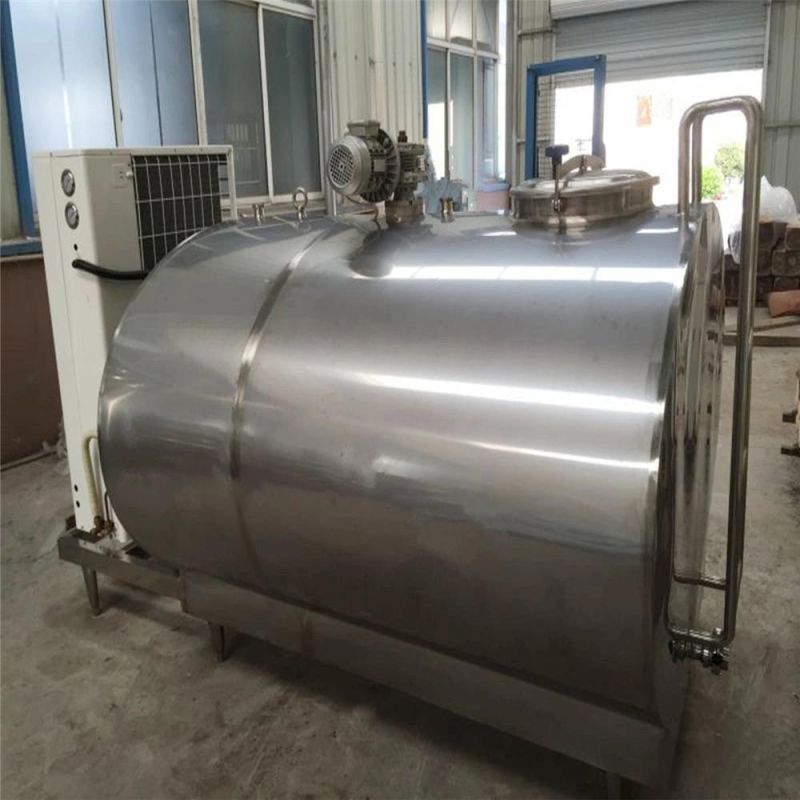

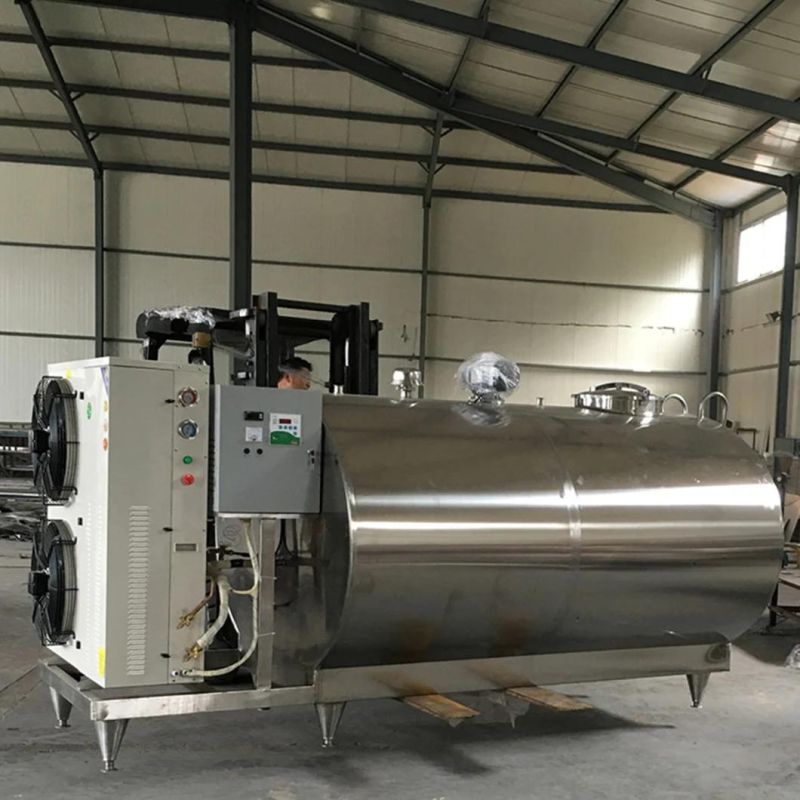

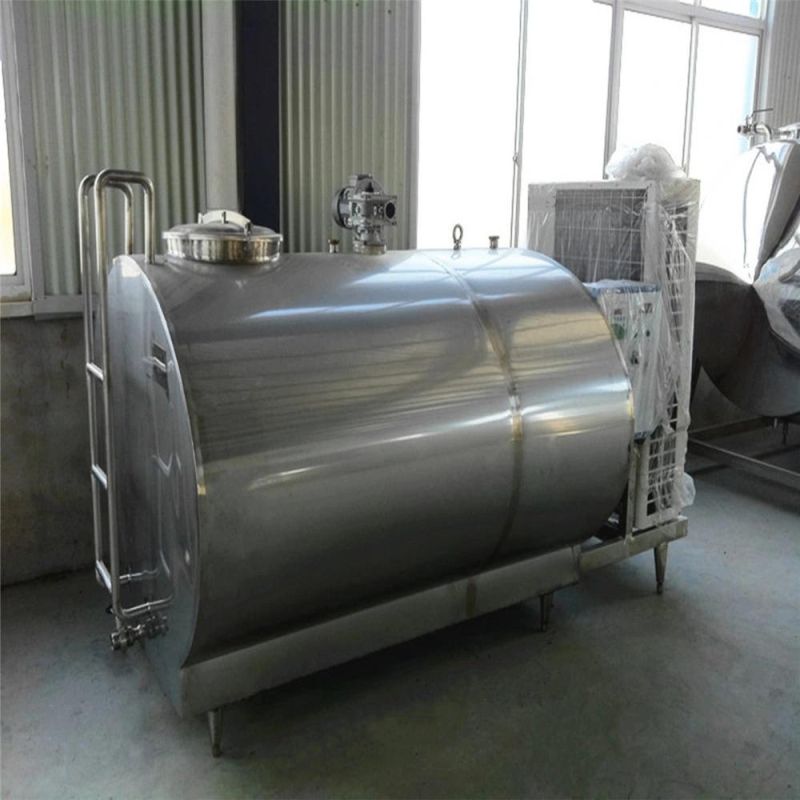

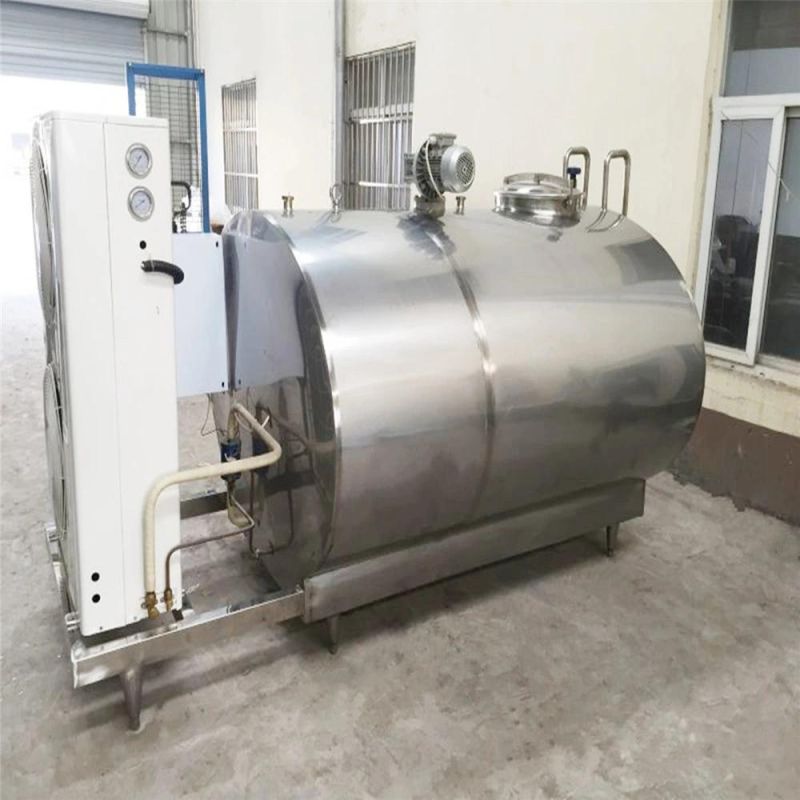

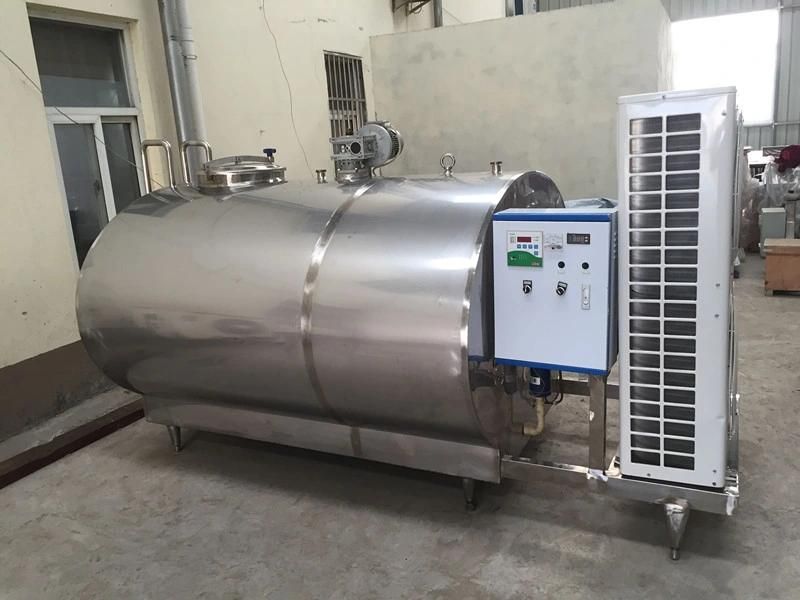

Fresh Milk Tank Raw Milk Tank Milk Tank Milk Storage TankBest Equipment for storage the fresh milk

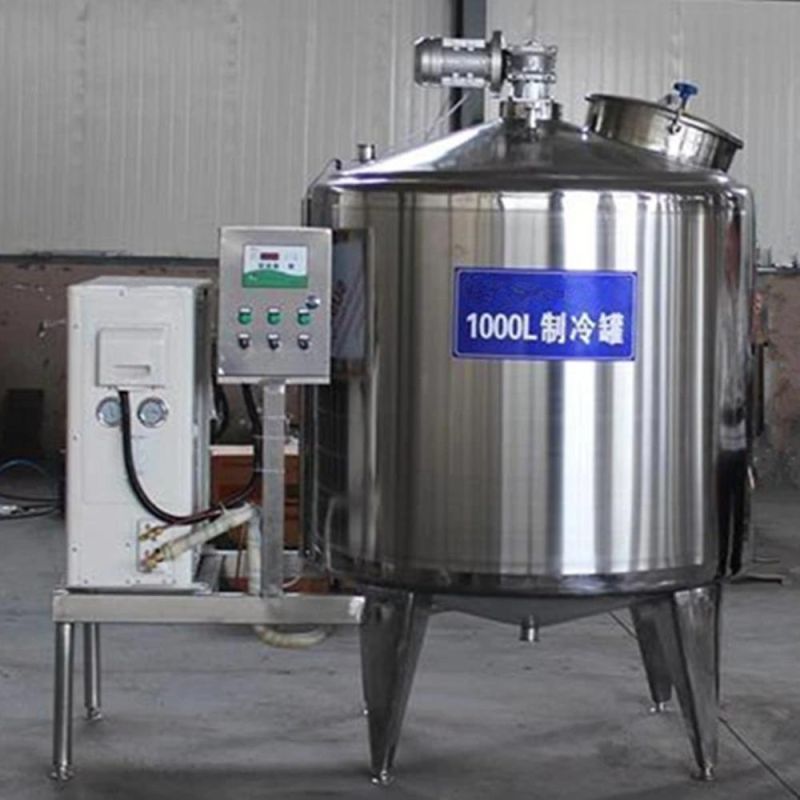

| Type | KQ-1T Vertical type | KQ-2T Laying type | KQ-3T Laying type | KQ-5T Laying type | KQ-6T Laying type | KQ-8T Laying type | KQ-10T Laying type |
| Capacity( L) | 1000 | 2000 | 3000 | 5000 | 6000 | 8000 | 10000L |
| Refrigerating Output (W) | 9000 | 15000 | 22000 | 37000 | 38000 | 55000 | 74000 |
| Refrigerating Fluid(R) | R404/R22 | R404/R22 | R404/R22 | R404/R22 | R404/R22 | R404/R22 | R404/R22 |
| Insulating Property | ≤ 1C/4h | ≤1C/4h | ≤1 C /5h | ≤1 C /5h | ≤1 C /5h | ≤1 C /5h | ≤1 C /6h |
| Agitator Speed | 36r/min | 36r/min | 36r/min | 36r/min | 36r/min | 36r/min | 36r/min |
| Power (Kw) | 3.8 | 5.9 | 7.5 | 10.5 | 11 | 13 | 19.2 |
| Voltage | 380V/50Hz,3phases | 380V/50Hz,3phases | 380V/50Hz,3phases | 380V/50Hz, 3phases | 380V/50Hz, 3phases | 380V/50Hz, 3phases | 380V/50Hz, 3phases |
| Dimension(mm) | 1800*1200*1500 | 3400*1550*1750 | 3600*1700*1900 | 3900*2050*2150 | 4500*2050*2150 | 6300*2050*2250 | 8000 * 2100 * 2400 |
| Weight(Approximately) | 0.6T | 0.75T | 0.9T | 1.1T | 1.3T | 1.8T |
Fresh Milk Tank Raw Milk Tank Milk Tank Milk Storage Tank
