• Model NO.：CT-C-O
• English User Manual：Yes
• Warranty Time：1 Year
• Delivery：Within 10 Days After Receive The Paid Deposit
• Certifications：CE
• Transport Package：Wooden Box
• Specification：CE, SGS
• Trademark：VIC
• Origin：China
• Production Capacity：1000 Sets Per Year

Basic Info.

Model NO. CT-C-O English User Manual Yes Warranty Time 1 Year Delivery Within 10 Days After Receive The Paid Deposit Certifications CE Transport Package Wooden Box Specification CE, SGS Trademark VIC Origin China Production Capacity 1000 Sets Per Year

Product Description

Introduction:
The hot air circulation oven for heat curing of the materials and products in the pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry, and desiccation. Such as Raw material drug, Crude drug, Chinese Herbal Medicine, Extract, Album dose, Grain, Granules, Water pills, Packaging bottle, pigment, dyestuff, dehydration vegetable, dried fruit, sausages, plastic resin, electric elements, drying varnish and so on.


Features:
1Heating source: Steam, electricity, electricity steam dual-use.
2. Temperature: Steam heating 50-140 ° C, up to 150 ° C; Electric heating to 50-300 ° C
3. The temperature can be controlled automatically and automatic alarm.
4. Full welding of Box inner wall, the transition at the arc transition, no dead ends
5. The unique rail sealing device ensures the tightness of the machine.
6. With Air inlet filter; The dehumidifying mouth filters.
7. Double-door oven double door mechanical interlock
8.Various parts of the oven can be assembled and disassembled quickly installed to facilitate cleaning

Main date

Model	Capacity of each batch  (kg)	Electrical Power (KW)	Air volume (m3/h)	Number of plates	Machine size (mm)	Number of Trolley
CT-C-O	50-60	9	3450	24	1380*1200*2000	1
CT-C-I	100-120	15	3450	48	2300x1200x2300	2
CT-C-II	200-240	30	9020	96	2300x2200x2300	4
CT-C-N	300-360	45	13800	144	2600*2100*2300	6
CT-C-IB	400-480	60	6900	192	4000*2000*2300	8

More picture

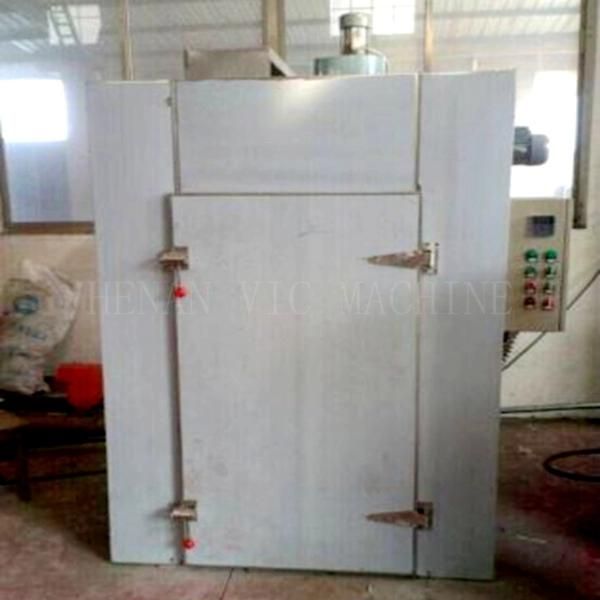

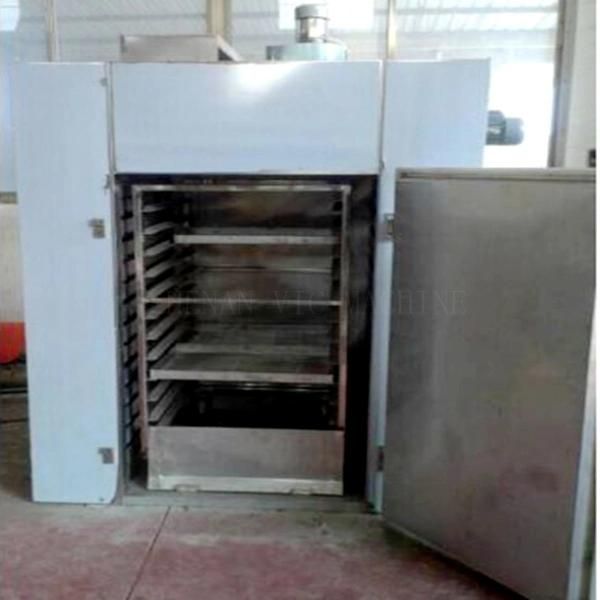

Single room

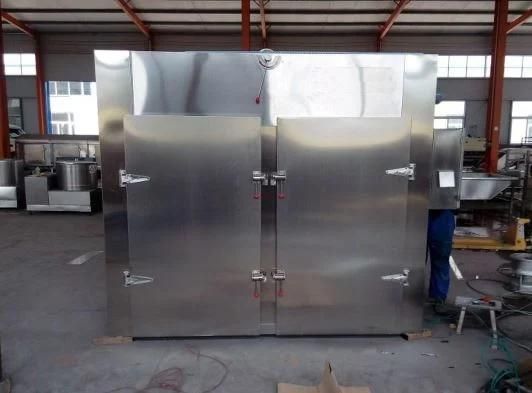

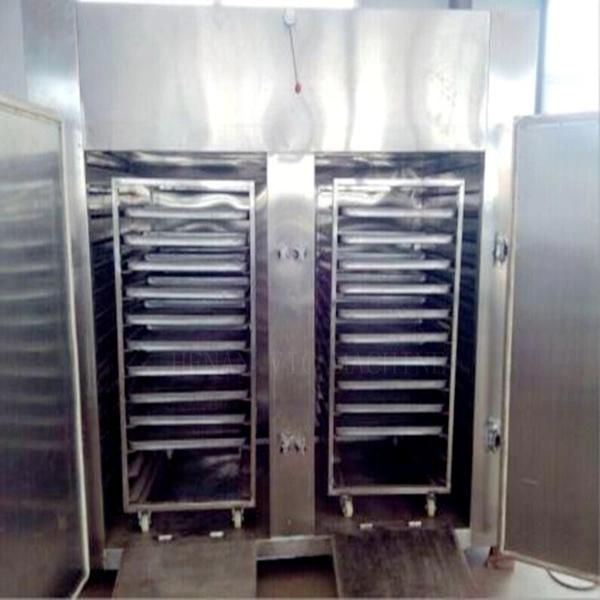

Double rooms


Package

Our factory
