Pasteurization Tank
Wenzhou Longwan Wanyuan Food Machinery Factory- Process:Thermal Processing
- Power Source:Electric
- Automatic Grade:Semi-Automatic
- Application:Milk
- Customized:Customized
- Voltage:380V,220V,110V
Base Info
- Model NO.:WY-500
- Usage:Milk
- Power(W):0.75 Kw
- Material:Ss304,Ss316L
- Capacity:500-5000litres
- Applicable Range:Liquid Storage Tank
- Transport Package:Wooden Case
- Origin:Wenzhou China
Description
Basic Info.
Model NO. WY-500 Usage Milk Power(W) 0.75 Kw Material Ss304/Ss316L Capacity 500-5000litres Applicable Range Liquid Storage Tank Transport Package Wooden Case Origin Wenzhou ChinaProduct Description

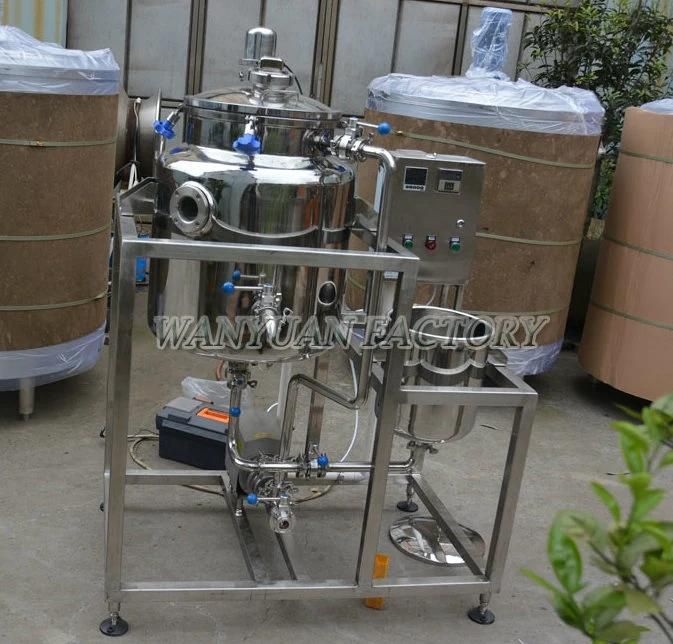

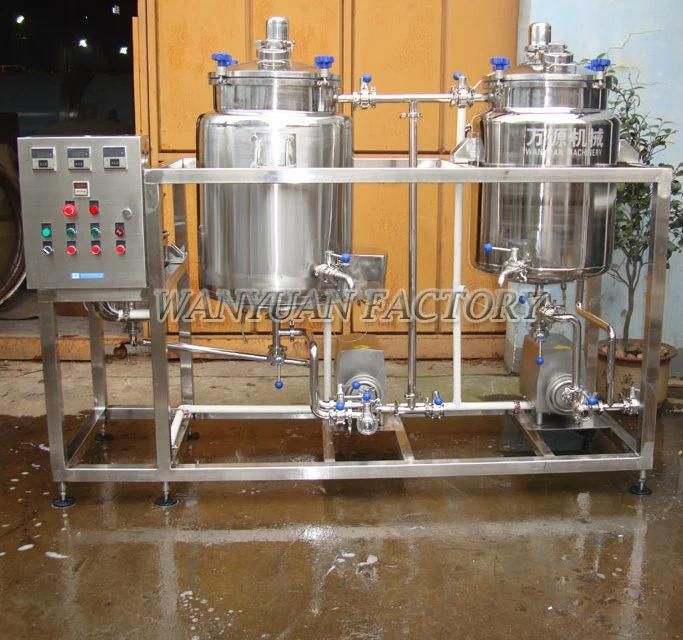

Name: Pasteurization tankCapacity: 60L-300L
With Agitator and jacket
Material: SS304 and SS316
Pasteurization tank Applicable range:
1. Used as liquid storage tank, liquid composing tank, liquid blending tank, temporary storage tank and hot water tank etc.
2. Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Pasteurization tank Structure characteristics:
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Material are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank:
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements ).
8. Liquid level meter and level controller (According to customer requirements ).
9. Eddy-proof board.
Wenzhou wanyuan food machinery factory- - Pasteurization Machine
Here below is Pasteurization Machine specifications:
Effective volume | Dimension of tank | Total height | Diameter of inlet&outlet | Heat preservation layer |
(L) | (mm) | (mm) | (mm) | (mm) |
500 | 840*1000 | 2250 | 38 | 60 |
600 | 920*1000 | 2300 | 38 | 60 |
700 | 990*1000 | 2300 | 38 | 60 |
800 | 950*1220 | 2500 | 38 | 60 |
900 | 1010*1220 | 2500 | 38 | 60 |
1000 | 1060*1500 | 2850 | 51 | 60 |
1500 | 1160*1500 | 2850 | 51 | 60 |
2000 | 1340*1500 | 2900 | 51 | 60 |
3000 | 1410*2000 | 3400 | 51 | 60 |
4000 | 1620*2000 | 3450 | 51 | 60 |
5000 | 1810*2000 | 3500 | 51 | 60 |
6000 | 1980*2000 | 3550 | 51 | 60 |
7000 | 1930*2440 | 4000 | 51 | 60 |
8000 | 2060*2440 | 4000 | 51 | 60 |
9000 | 2180*2440 | 4050 | 51 | 60 |
10000 | 2300*2440 | 4050 | 51 | 60 |
12000 | 2270*3000 | 4600 | 51 | 60 |
15000 | 2530*3000 | 4700 | 51 | 60 |
20000 | 2640*3660 | 5400 | 51 | 60 |
