• Model NO.：WY-100
• Heating Method：Electric Heating and Steam Heating
• Material：Ss304,316L
• Agitator Type：Anchor Frame Impeller Magnetic etc
• Structure：3 Layer, 2 Layer or 1 Layer
• Mixing Speed：36,60,120,2800rpm
• Transport Package：Wooden Case
• Specification：CE ISO
• Origin：Wenzhou China

Basic Info.

Model NO. WY-100 Heating Method Electric Heating and Steam Heating Material Ss304/316L Agitator Type Anchor Frame Impeller Magnetic etc Structure 3 Layer, 2 Layer or 1 Layer Mixing Speed 36/60/120/2800rpm Transport Package Wooden Case Specification CE ISO Origin Wenzhou China

Product Description

1500L Stainless Steel Steam Heating Cosmetics Mixing Tank Emulsification machine

Name: Stainless Steel Mixing Tank
Automation: Manual, semi-automatic, full-automatic
Capacity: 100-1000L
Suitable Temp.: 0-100 ºC or higher upon requirement
Power: 380V/50HZ/3Phase or customized
Control System: Push button/PLC/touch screen; Optional
Material: SUS 304/316L optional
Structure: 3 layers(inner bladder, jacket, insulation layer), 2 layers, 1 layer upon requirement
Surface: Inner/outer polished, outer: Drawbench polished
Stirring method: One direction mixing or two direction(optional)

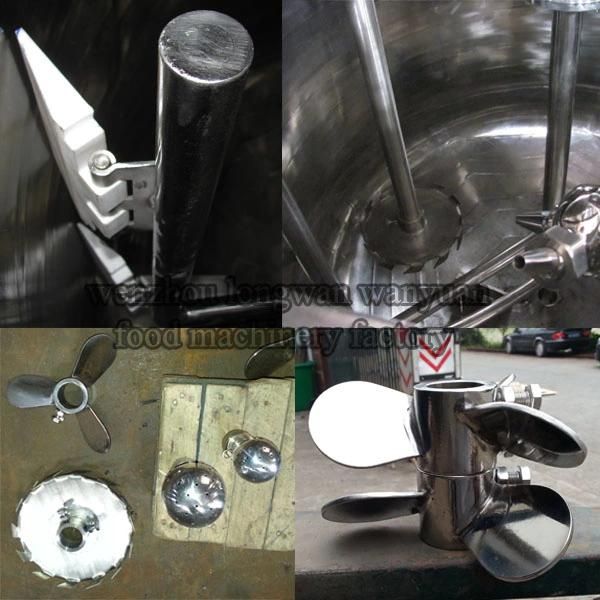

Stirrer type: Can be selected from anchor type, impeller type, frame type, high speed shear, magnetics type and etc.
Application: Can be used to mix and melt all kinds of materials in industries like pharmacy, cosmetics, chemicals, resins, paintings, confectionary, pigments and etc.,

Mixing tank Machinery Range
Stainless steel mixing/melting/storage tank series
Homo and vacuum mixing tank
Softgel capsule production line supportive machinery
Pharmaceutical CIP&SIP system
Herbal Extraction and concentration/evaporation machinery


Mixing tank Features
A full range of products to specifically meet client production need
With high technology and advanced automation
Fully meet the standard of GMP and CGMP
Overall service from consultation, design, manufacturing, installation, operation and training

Our Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.

volume (L)	Dimension (D× h ) (mm)	Total height (mm)	Diameter Of inlet & outlet	Heat preservation layer (mm)
500	840 × 1000	2250	38	60
600	920 × 1000	2300	38	60
700	990 × 1000	2300	38	60
800	950 × 1220	2500	38	60
900	1010 × 1220	2500	38	60
1000	1060 × 1220	2550	51	60
1500	1160 × 1500	2850	51	60
2000	1340 × 1500	2900	51	60
3000	1410 × 2000	3400	51	60
4000	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60
