• Model NO.：KQ1000
• Name：Gas Cooking Pot Jacketed Pot Steam Pot Commercial
• Function：Heating and Mixing
• Capacity：300L ,500L, 600L, 1000L

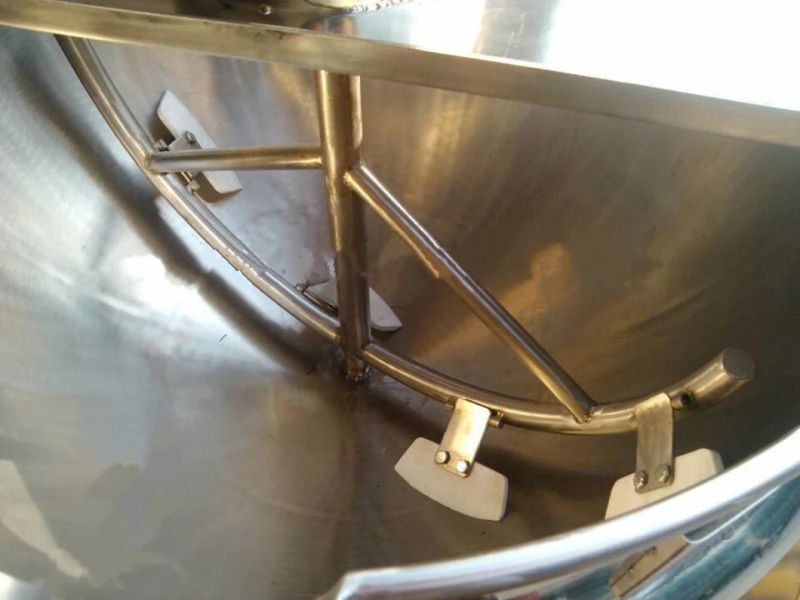

• Mixer：Scrapper Mixer, Normal Mixer
• Kettle Material：Food Grade 304,316
• Temperature：Above 90 Degree
• Kettle Type：Vertical ,Tilting
• Jacket Kettle：Heating by Electricity, Steam
• Delivery：10 Days
• Orign：Shanghai China
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：2000set ,Year

Basic Info.

Model NO. KQ1000 Name Gas Cooking Pot Jacketed Pot Steam Pot Commercial Function Heating and Mixing Capacity 300L ,500L, 600L, 1000L Mixer Scrapper Mixer, Normal Mixer Kettle Material Food Grade 304/316 Temperature Above 90 Degree Kettle Type Vertical /Tilting Jacket Kettle Heating by Electricity, Steam Delivery 10 Days Orign Shanghai China Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai, China HS Code 8479820090 Production Capacity 2000set /Year

Product Description

Sanitary stainless steel jacketed kettle(steam/electrical heating)

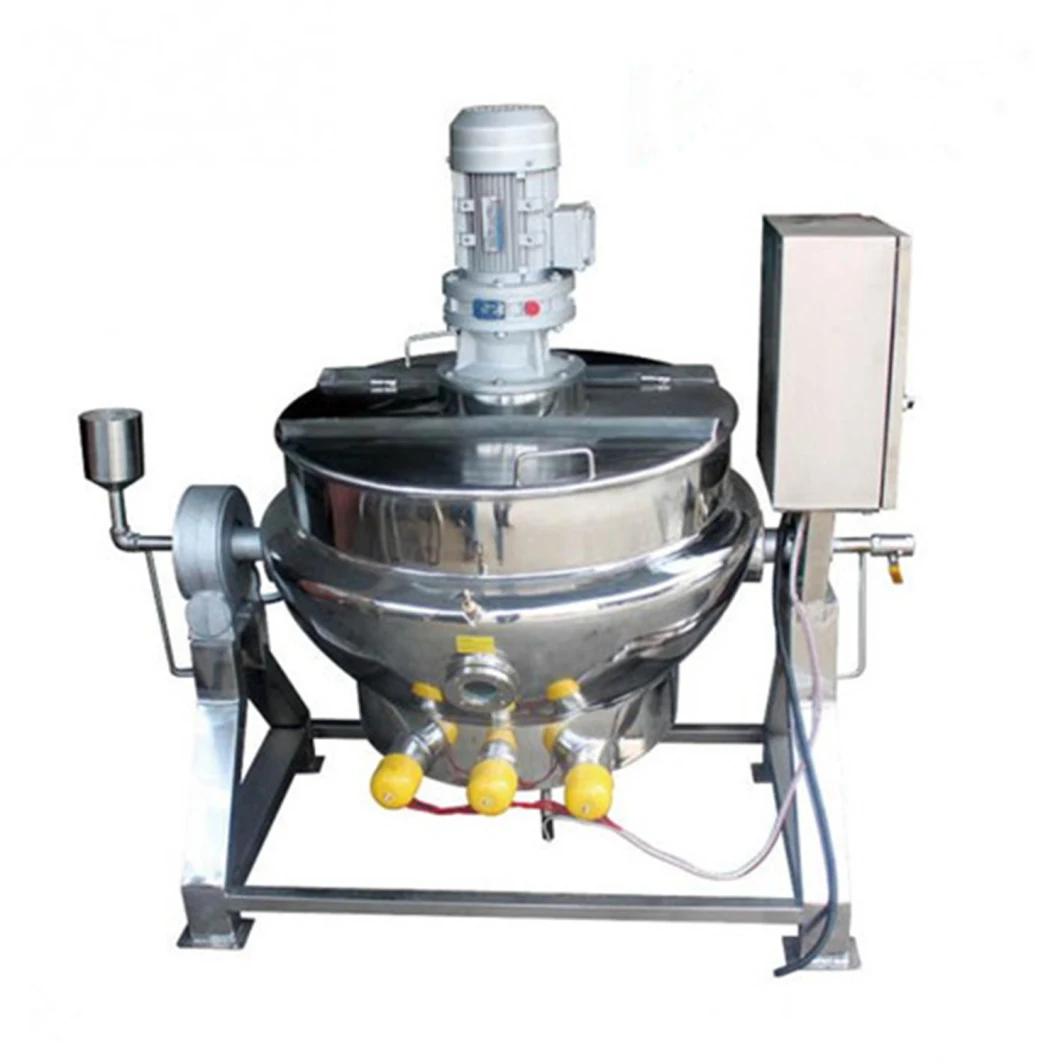

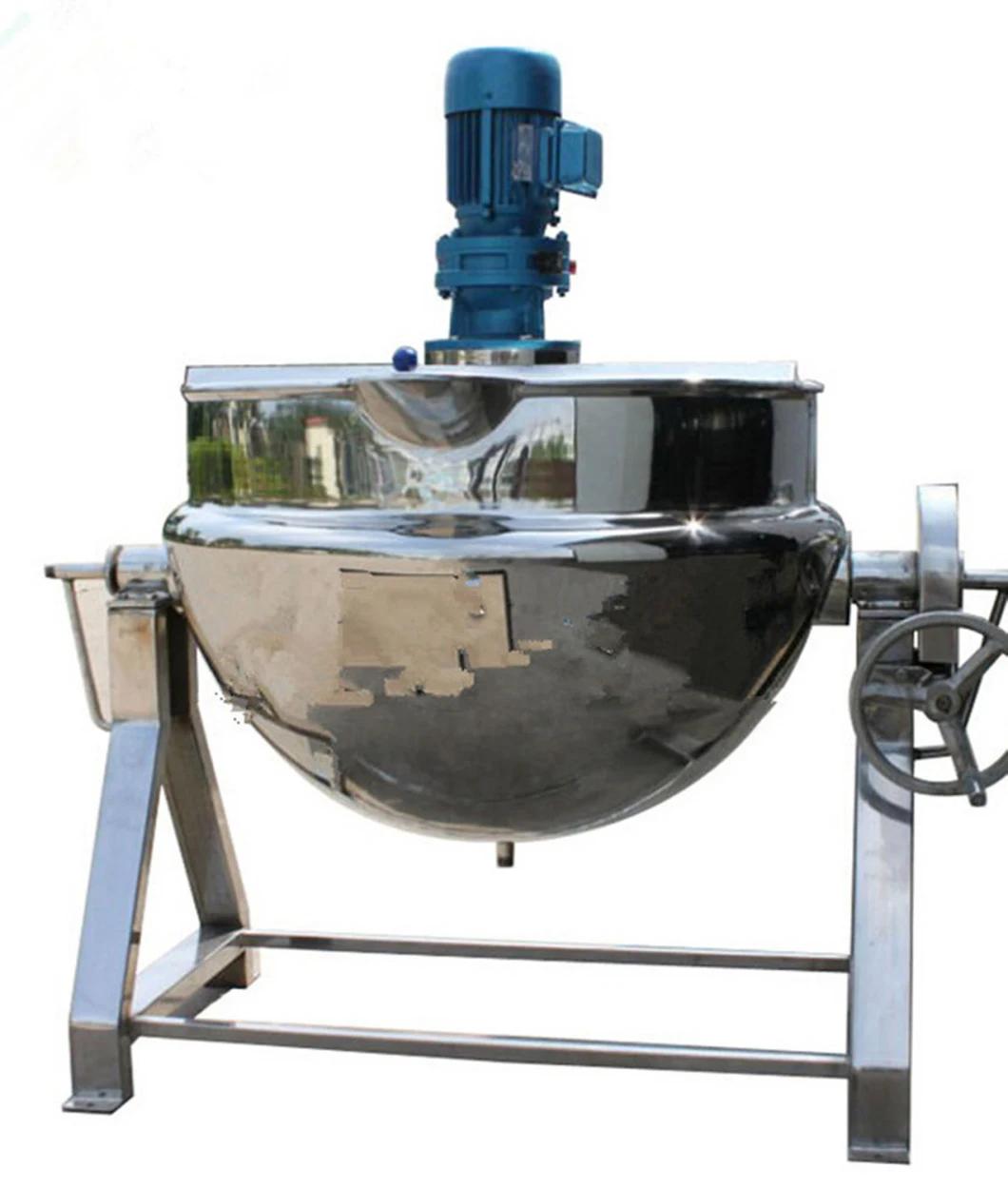

Gas Cooking Pot Jacketed Pot Steam Pot Commercial Heating Pot

Material: SS304/316
600 L Electric Heating Jacketed kettles
Stainless steel double-layered boiler/kettle ,used for heating, pasteurizing, cooking, mixing juice, sauce, fruit jam and processing meat, food, Candy, pharmacy, dairy , liquor, cake, drink, candied fruit, etc
Material: SS304
Heating by Electricity
* Type: with Jacketed wall
* Internal shell thickness: 3 or 4 mm, SS304
* Jacket thickness: 3 or 4mm, SS304


Capacity: 300L~1000L
Application
Vertical steam jacketed kettle also named Steam boiler, it's widely used for Candy, pharmacy, dairy, liquor, cake, drink, candied fruit, can etc. Food processing, may be used for large-scale dining hall for cooking a soup, cooking the dish, the fricassee, cooking gruel and so on, it's good equipment for food processing which can improve quality, shortens the time, improves work conditions.
Gas Cooking Pot Jacketed Pot Steam Pot Commercial Heating Pot

TankCapacity(L)	200	300	400	500
REV	36r/min, 0.55KW, 380V, 50HZ,  3PHAZE	36r/min, 0.55KW, 380V, 50HZ, 3PHAZE	36r/min, 0.75KW, 380V, 50HZ, 3PHAZE	36r/min, 0.75KW, 380V, 50HZ, 3PHAZE
Heating Area(M2)	1.0	1.4	2.0	2.0
Vertical Product Dimension(CM)	100*90*155	110*100*160	120*130*165	120*130*165
Material	SS304	SS304	SS304	SS304
WEIGHT GW/NW(KGS)	100	120	180	180
Package	Wooden box	Wooden box	Wooden box	Wooden box

Gas Cooking Pot Jacketed Pot Steam Pot Commercial Heating Pot
