• Model NO.：2900RPM
• Emulsifier：for Milk , Juice, Dairy Industry,Ice Cream
• Homogenizer：Homogenizing Mixer in The Tank
• Customize：Motor
• Processing Capacity：100L to 10000L
• High Speed Mixer：for Mixing Liquid and Powder, Liquid and Liquid
• Inline High Shear Homogenizing Agitator：2900rpm
• Homogeniztator：Work with Tank
• Delivery：10 Days
• MOQ：1 Set
• Country：Shanghai China
• Transport Package：Standard
• Specification：Customized
• Trademark：KAIQUAN
• Origin：China
• HS Code：8479820090
• Production Capacity：100

Basic Info.

Model NO. 2900RPM Emulsifier for Milk , Juice, Dairy Industry,Ice Cream Homogenizer Homogenizing Mixer in The Tank Customize Motor Processing Capacity 100L to 10000L High Speed Mixer for Mixing Liquid and Powder, Liquid and Liquid Inline High Shear Homogenizing Agitator 2900rpm Homogeniztator Work with Tank Delivery 10 Days MOQ 1 Set Country Shanghai China Transport Package Standard Specification Customized Trademark KAIQUAN Origin China HS Code 8479820090 Production Capacity 100

Product Description

High Shear Emulsifier

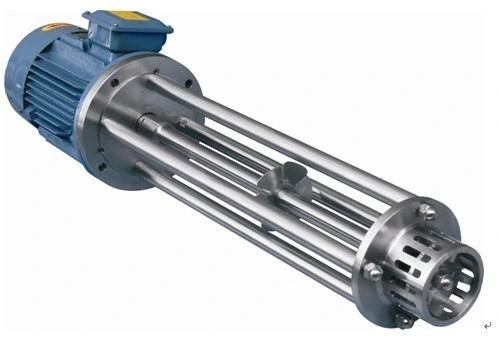

Inline High Shear Homogenizing Agitator
Stainless Steel High Shear Emulsifier, You Can Buy Various High Quality Stainless Steel High Shear Emulsifier Products from us
2900RPM high speed emulsifier,
homogenizer agitator
HIGH SHEAR EMULSIFIERS ... multi-functional high shearSanitary stainless steel high shear mixer



Primary functions:

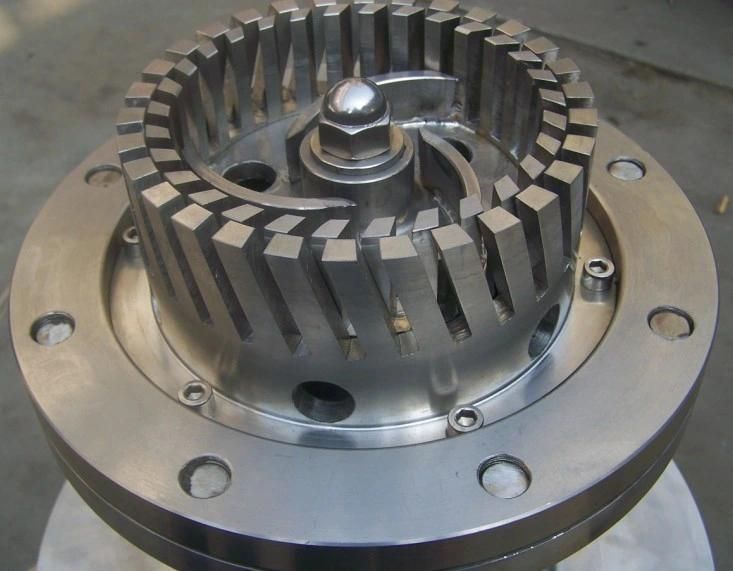

The WRL series of intermittent type high-shearing homogenization emulsion machine are high-powered stirring systems. Lower part has particular stator-rotor structure to make the material be high-shearing dispersed, homogenized and emulsified intensively. Middle has high speed dispersed propeller-blade to assist with blending and homogenization. Upside has liquid flow under press type dispersed propeller-blade to control flow fluid effectively and process more thoroughly.
The equipment is applicable to blending, dispersing, homogenization and emulsification of fluid liquid material.

Application scope:
Food industry: Edible coloring matter, chocolate coating, filling food, syrup, flavoring, various additive, etc;
Medicine industry: Medical ointment, ointment, lotion, cream, various vitamin, etc
Chemical industry concerned with product of daily use: Shampoo, detergent, cream, tooth paste, paraffin liquor, hair dye, etc.
Adhesive industry: Rubber liquor, polyester sulfured, silicone, hot-melt adhesive, polyurethane, etc.

Type	Power (Kw)	Voltage	Revolution (RPM)	Length ( Mm )	Processing capacity   ( L/H )	Material
WRL-90	1.5	380V/50Hz	2900	430	5-50	SS304
WRL-100	2.2	380V/50Hz	2900	650	50-100	SS304
WRL-120A	3	380V/50Hz	2900	750	100-200	SS304
WRL-120	4	380V/50Hz	2900	750	100-300	SS304
WRL-140A	5.5	380V/50Hz	2900	850	200-600	SS304
WRL-140	7.5	380V/50Hz	2900	900	200-800	SS304
WRL-160	11	380V/50Hz	2900	1000	300-1000	SS304
WRL-170	15	380V/50Hz	2900	1100	400-1200	SS304
WRL-180	18.5	380V/50Hz	2900	1150	500-1500	SS304
WRL-200	22	380V/50Hz	1170	1200	800-2000	SS304
WRL-220	30	380V/50Hz	1170	1350	1000-3000	SS304
WRL-240	37	380V/50Hz	1470	1400	1500-5000	SS304
WRL-270	55	380V/50Hz	1470	1650	2000-8000	SS304

Inline High Shear Homogenizing Agitator
