800kg Per Hour Soybean Oil Press Machine-C

Sichuan Guangxin Machinery of Grain & Oil Processing Co., Ltd.
  • Type：Spiral Oil Press
  • Application：All
  • Voltage：380V
  • Appearance：Horizontal
  • Press Materials：Soybean
  • Press Series：Fourth

Base Info

  • Model NO.：YZYX168
  • Condition：New
  • Customized：Non-Customized
  • Size：2670*1000*1726mm
  • Name：China The Biggest Screw Oil Expeller
  • Color：Can Be Customized
  • Transport Package：Solid Wooden Box
  • Specification：ISO, SGS, BV
  • Trademark：Guangxin
  • Origin：Mianyang, Sichuan, China
  • HS Code：8479200000
  • Production Capacity：400PCS Per Month

Description

Items
Oil PlantsProcessing CapacityOil content of
Dry cakes (%)Oil Yield Efficiency (t/24h)Electricity Consumption (kw.h/t)Rapeseed≥20≤8.0≥80≤35Cotton seeds≥20≤7.5≥75≤55Soybean≥17≤7.0≥65≤52Peanut≥20≤8.0≤91≤35sunflower≥20≤8.0≤88≤35
       The series YZYX168 spiral oil press produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.

800kg Per Hour Soybean Oil Press Machine-C
Working principle:
1.  Transferred by the triangle belt, the electromotor drives the spiral shaft.
2.  Oil plants being carried toward to the end of the machine by rotating squeeze spirals.
3.  With the space between spirals and loops becoming smaller,the pressure in the chest is bigger.
4.  During this process, oil plants are smashed and the tissue cells are destroyed, then oil is separated from oil plants.
5.  After extracted, oil plants turns to be cakes containing low oil and is discharged in thin slices from the end.

YZYX168 FOUR stage oil press  from Guangxin is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc.
The product conforms to the "Technology Standard of Agricultural Spiral Oil Press" under JB/T9793·1-1999 of the People's Republic of China.

Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.
Main technique featuresItems
Oil PlantsProcessing CapacityOil content of
Dry cakes (%)Oil Yield Efficiency (t/24h)Electricity Consumption (kw.h/t)Rapeseed≥20≤8.0≥80≤35Cotton seeds≥20≤7.5≥75≤55Soybean≥17≤7.0≥65≤52Peanut≥20≤8.0≤91≤35sunflower≥20≤8.0≤88≤35800kg Per Hour Soybean Oil Press Machine-C

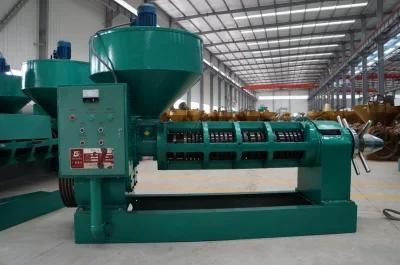

Working state

 800kg Per Hour Soybean Oil Press Machine-C

Company Information

800kg Per Hour Soybean Oil Press Machine-C



FAQ

1. Delivery time.
---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.
2. If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
3. What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm.

4. What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.)
