• Model NO.：MC
• Application：Milk
• Customized：Non-Customized
• Name and Description：Milk Vat with Refrigerating System Milk Cooling V
• Milk Chilled Tank：1000L to 12000L
• Milk Cooling Tank Compressor：USA Copeland
• Milk Tankapplication：Cooling and Storage Fresh Milk
• Milk Transportation Tank：Also Provided
• Milk Vat：with Air Compressor
• Milk Cooling Tank Agitator：0.75kw
• Material：SS304
• Milk Tank Life Span：More Than 10 Years
• Milk Cooling Tank：Vertical, Horizontal
• Packing：Wooden Box
• Spare Parts：Available
• Motor Brand：Siemens ,ABB ,China Brand
• Control Box：Yes
• Cleaning：CIP Spray Ball
• Transport Package：Wooden Box
• Specification：SANITARY, FOOD GRADE
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100sets One Month

TypeKQ-0.5T
Vertical typeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)50010002000300050006000800010000LRefrigerating Output(W)90009000150002200037000380005500074000Refrigerating  Fluid(R)R22R22R22R22R22R22R22R22Insulating Property≤1ºC/4h≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.83.85.97.510.5111319.2Voltage220V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15001800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T0.6T 0.75T0.9T1.1T1.3T1.8T2.05TUnit Price: FOB SHANGHAIUSDUSDUSDUSDUSD10200USD14700 USD18200USD



Milk Chilling Tank, You Can Buy Various High Quality Milk Chilling TankProducts from
Milk cooling & storage. Milk cooling & storage cooling tank and control unit. Rapid and efficient milk cooling is essential for preserving milk qualityrefrigerant tank
 Milk Vat from Milk Cooling Tank
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.

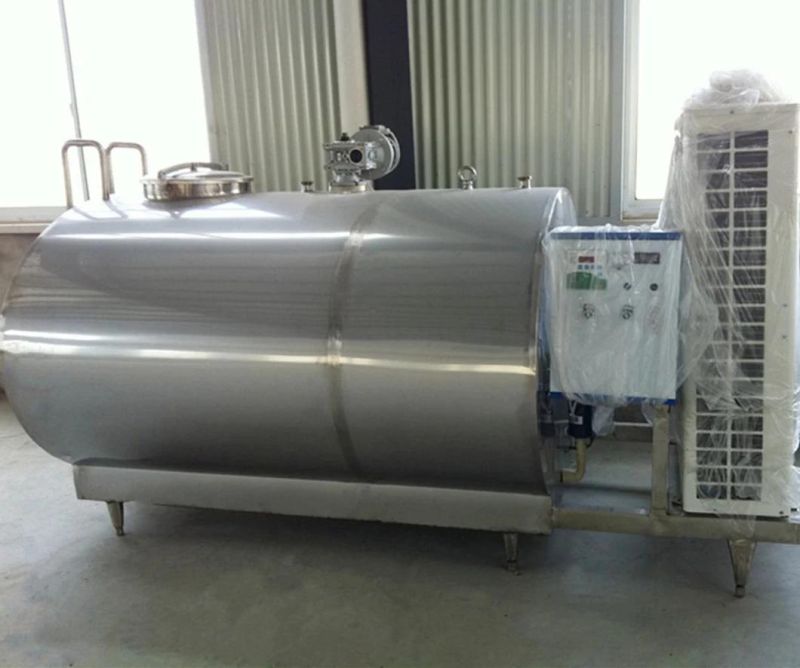

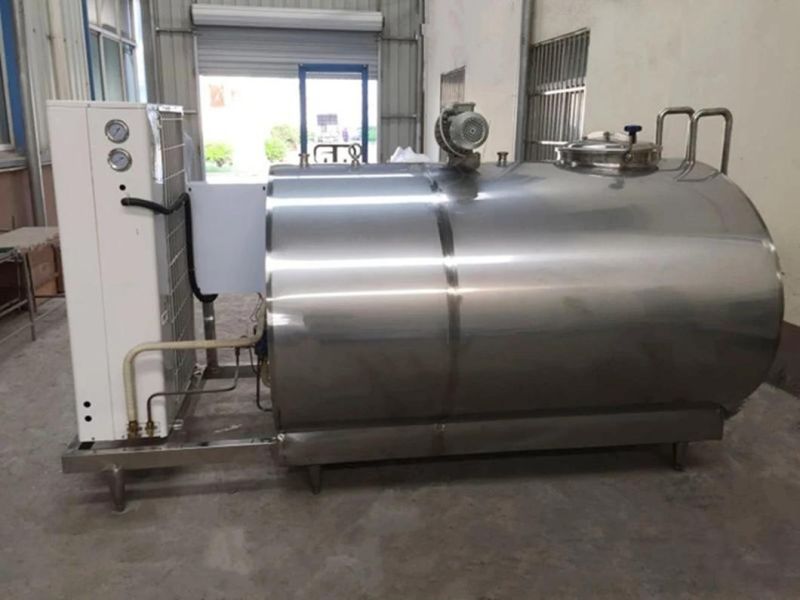

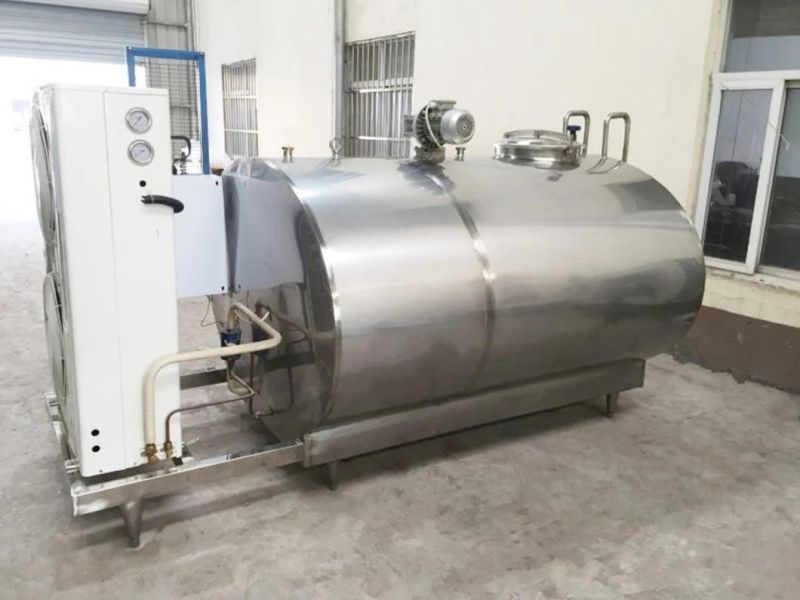

Milk Vat with Refrigerating System Milk Cooling Vat
