• Model NO.：VIC-50A
• Press Series：Fourth
• Condition：New
• Customized：Customized
• Performance：Automatic
• Structure：Fixed
• Mechanical Principle：Pressure Filtration
• Usage：Oil Refinery
• Raw Materials：Be Made of Stainless Steel
• English manual：Yes
• Delivery Time：7-10days
• Power：7.47KW
• Transport Package：Wooden Fumigated Box

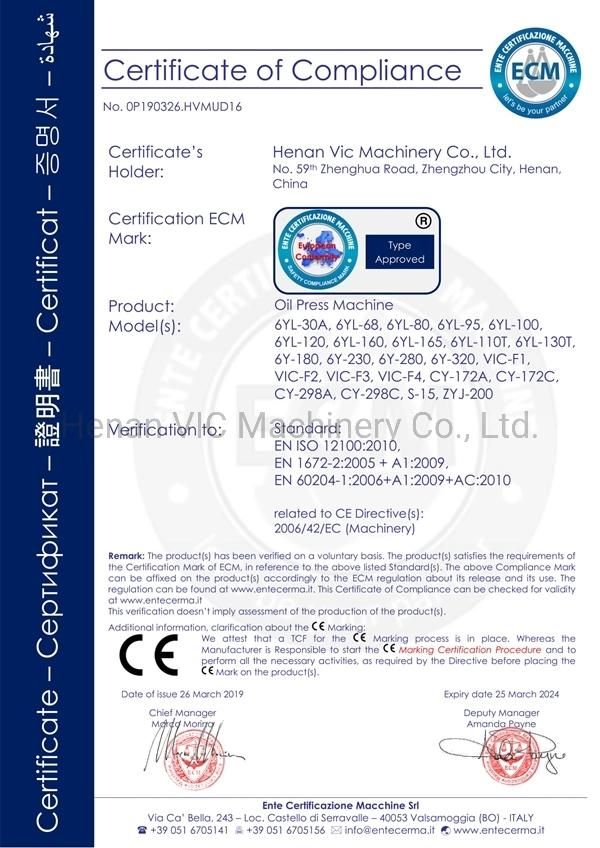

• Specification：CE, ISO
• Trademark：VIC
• Origin：China
• Production Capacity：100set,Month

Basic Info.

Model NO. VIC-50A Press Series Fourth Condition New Customized Customized Performance Automatic Structure Fixed Mechanical Principle Pressure Filtration Usage Oil Refinery Raw Materials Be Made of Stainless Steel English manual Yes Delivery Time 7-10days Power 7.47KW Transport Package Wooden Fumigated Box Specification CE, ISO Trademark VIC Origin China Production Capacity 100set/Month

Product Description

                        Newest  Design Stainless Steel Crude Oil Refinery Machine

Application:
This is mini oil refinery have the decolorizing port, refinery port, refined oil pot, with the auto temperature equipment, can achieve crude oil degumming, deacidification, drying and decolorization function.
The final oil reach national edible oil standard, directly filling to sale for small-scale processing and oil processing plant.

Advantages:
1.The machine is made of stainless steel, can achieved, dealkalization, dehydration function, according to user needs can also be heated bleaching.
2.Work continuity, machine reasonable design, compact cohesion, midway don't need to stop.
3.Work efficiency, increase the air pressure tank, powerful, oil processing speed is fast.
4.Product effect is good, oil clear and bright, no phosphorus precipitation, the pot doesn't foam.
5.Simple and convenient operation,  button only after operation, no cumbersome manual operation.

Technical data:

Model	VIC-50A	VIC-75B	VIC-75C
Capacity/ time	80kg	200kg	200kg
Required time/batch	3.5hours	3hours	2.5hours
Heating Power	2kwX3/6kw	3kwX6/18kw	3kwx9/27kw
Size	1.5x0.58x1.35m	3.12x0.83x1.55m	3.9x0.83x1.550m
Weight	140kg	300kg	350kg
Gas pump power	1.1kw	1.1kw	1.1kw
Mixer power	0.25X1/0.25kw	0.25X2/0.5kw	0.25X3/0.75kw
Oil pump power	0.37kw	0.75kwx2	0.75kwx3

Product structure:

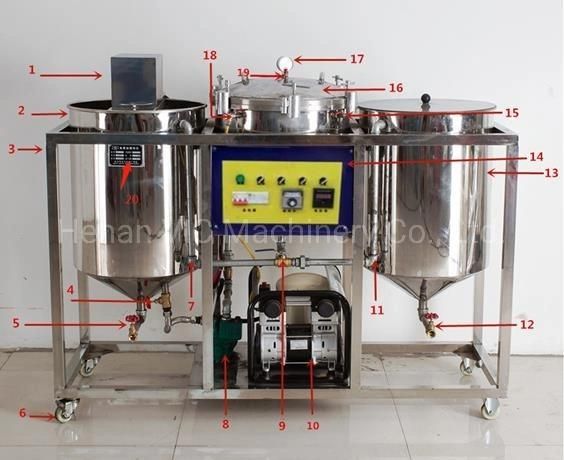

VIC-50A

1, stirring Motor,   2, stirring tank,   3, frame,   4, oil pump inlet valve,  5, dumping valves,  6, moving wheel,
7, filtering tank return pipe,  8, gear oil pump,  9, 3-way valve,   10, air pump,  11, refined oil inlet pipe,
12, refined oil outlet valve,  13, refined oil tank, 14, control panel,15, exhaust valve,16, filtering tank,
17, pressure gauge 18, inlet air valve, 19, safety relief valve, 20, product identification

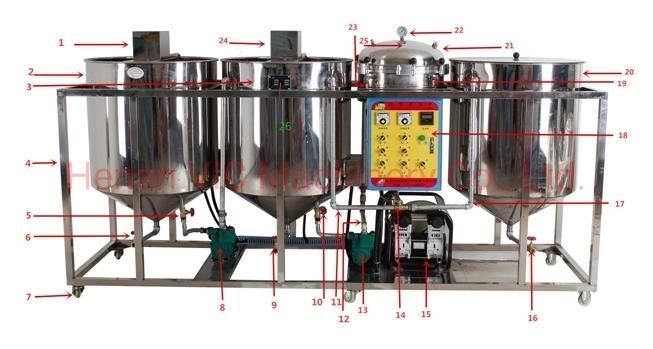

VIC-75B

1,1# stirring Motor,  2, 1#stirring tank,  3,2#stirring tank,  4, frame, 5.1#tank oil outlet valve,  6, dumping valves,
7, moving wheel,   8, 1#stirring tank oil pump,  9. dumping valves , 10,2#tank oil outlet valve,11,pipe to 2# tank
12,filtering tank inlet pipe, 13, 2#stirring tank oil pump, 14 ,3-way valve,  15, air pump,  16, refined oil outlet valve,
17, refined oil inlet pipe,  18, control panel, 19, exhaust valve,  20, refined oil tank,  21, filtering tank,
22, pressure gauge , 23, inlet air valve,  24, 2# stirring Motor, 25, safety relief valve,  26, product identification

VIC-75C

1,1# stirring Motor, 2, 1#stirring tank, 3,1#stirring tank dumping valve, 4, moving wheel,5,1#tank oil outlet valve,
6, 1#stirring tank oil pump,  7,2#stirring tank dumping valve,   8,2#tank oil outlet valve,  9, 2#stirring tank oil pump,
10, control panel ,  11,3#stirring tank dumping valve, 12, 3#tank oil outlet valve , 13,filtering tank inlet pipe,
14 , 1#stirring tank oil pump, 15, air pump, 16, 3-way valve,17,refined oil outlet valve, 18, refined oil inlet pipe,
19, refined oil tank, 20,exhaust valve, 21, pressure gauge,22, inlet air valve,23, 3# stirring Motor,
24, 3# stirring motor,25,2#filtering tank, 26, 2# stirring Motor,27, safety relief valve, 28,3#tank control panel,
29, filtering tank inlet pipe,30, product identification

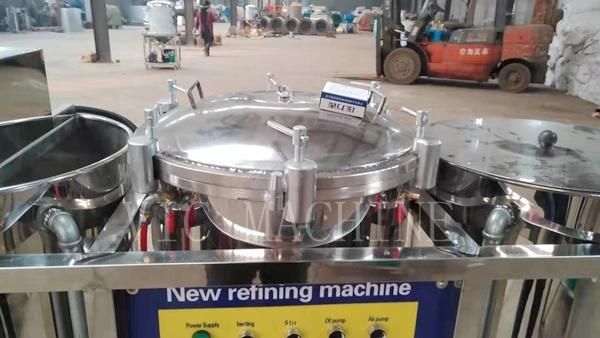

More pictures about VIC-50A:

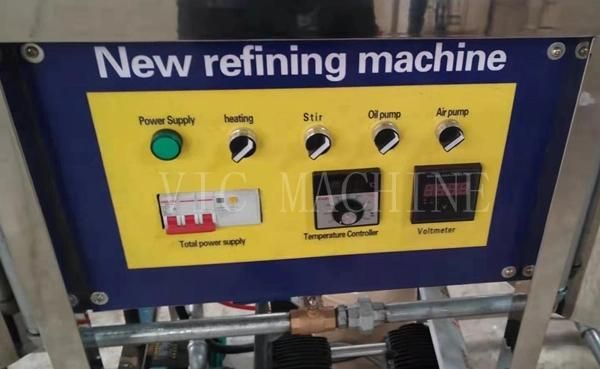

Control  system

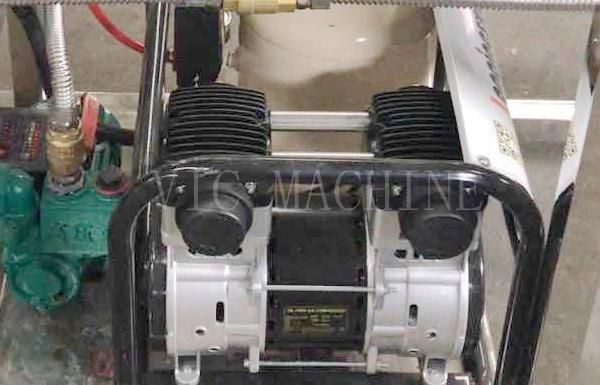

Air pump

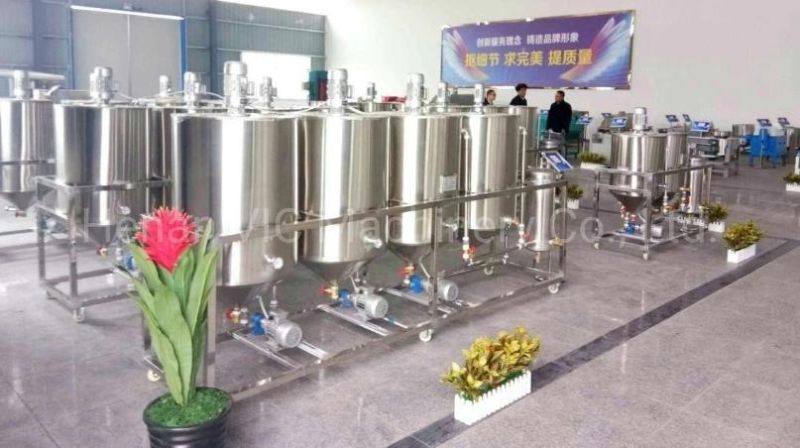

Workshop corner

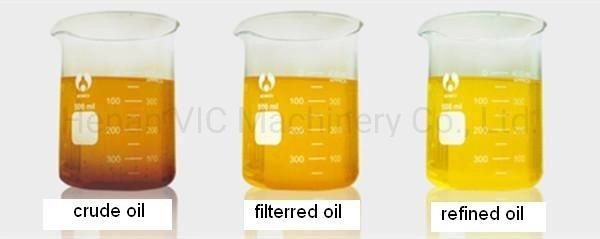

Final oil:


Package picture

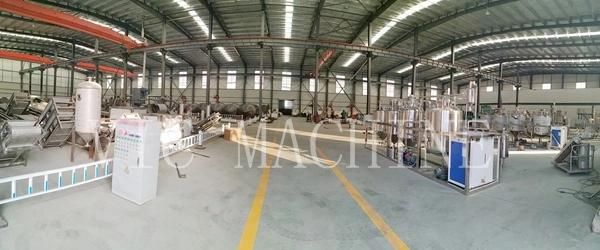

Our factory
