• Model NO.：HTB-30
• Condition：New
• Customized：Customized
• Transport Package：Suitble for Shipping
• Specification：30*12*6m
• Trademark：HUATAI
• Origin：Henan
• HS Code：84792000
• Production Capacity：30sets,Month

Basic Info.

Model NO. HTB-30 Condition New Customized Customized Transport Package Suitble for Shipping Specification 30*12*6m Trademark HUATAI Origin Henan HS Code 84792000 Production Capacity 30sets/Month

Product Description

Mechanical extraction of oil, The dried coconut with moisture of 10% - 12% is transferred to an automatic scale, and the iron impurity is removed through a magnetic chamber and ground into particles having a diameter of approximately 0.3 mm. The granules are pressed into flakes to enlarge the surface area. The preform was steamed and tempered in a cooker at 115 ° C for 20 min. Under these conditions, the phospholipid precipitated due to rupture of the fat cells, and the moisture decreased to 3%. The preforms which have been uniformly sized and steamed are sent to an oil press, and the oil is continuously pressed. Along the inner section of the press to the outlet of the tapered end, the grease is mostly discharged according to the uniform decreasing characteristic curve. In general, the processed coconut cake residual oil is 7%

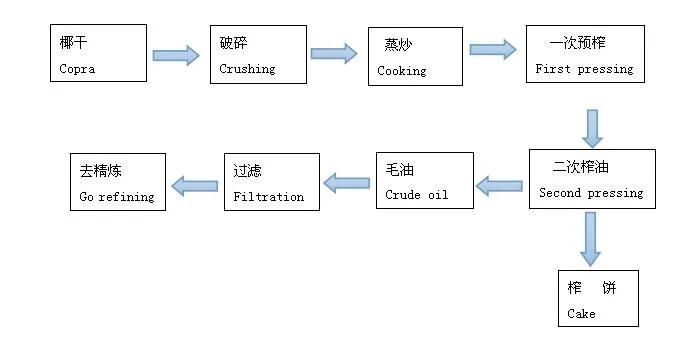

copra oil preprrocessing flow chart

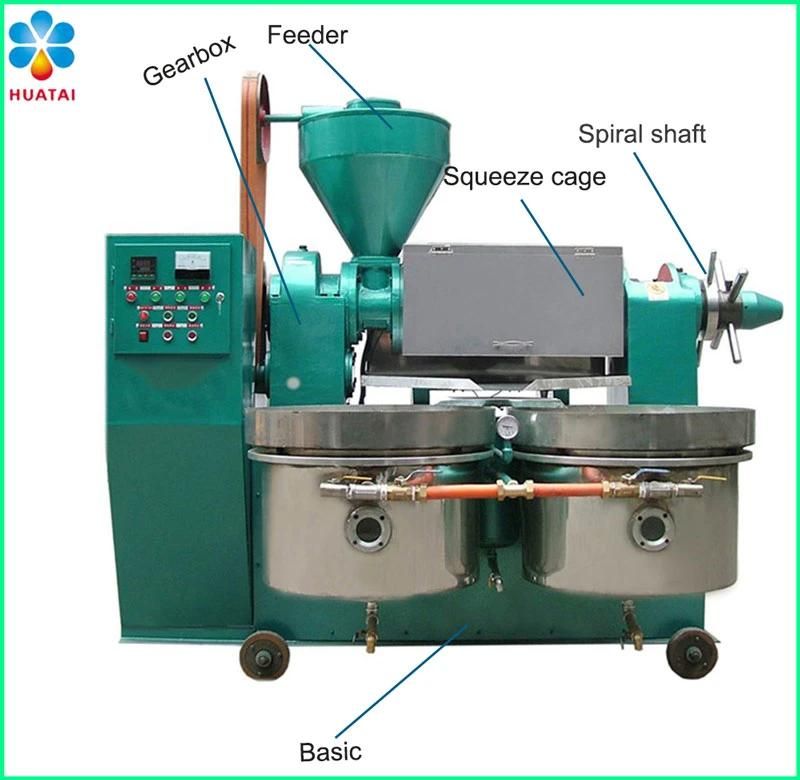

The YZYX130WZ series automatic temperature controlling combined oil press made by our company are suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, big capacity, strong oil material compatibility, auto feeding and high oil output, etc. It is widely used in middle & small oil refinery and rural enterprise.

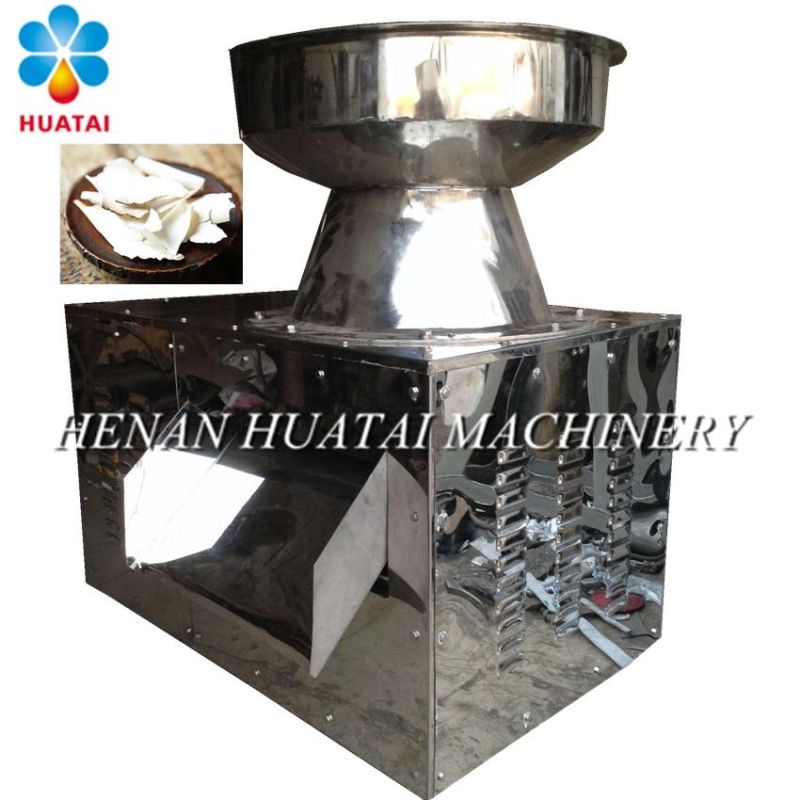

Crusher                                                                                                                                                   Use crusher to crush copra into pieces so as to get smaller particle size for flaking

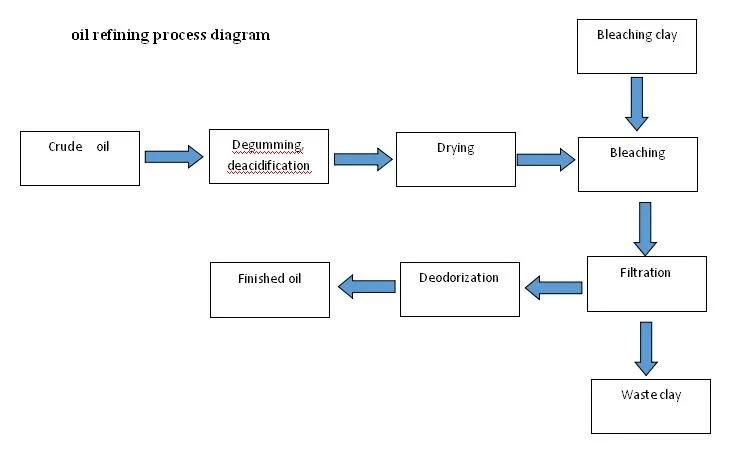

Refinery process flow chart

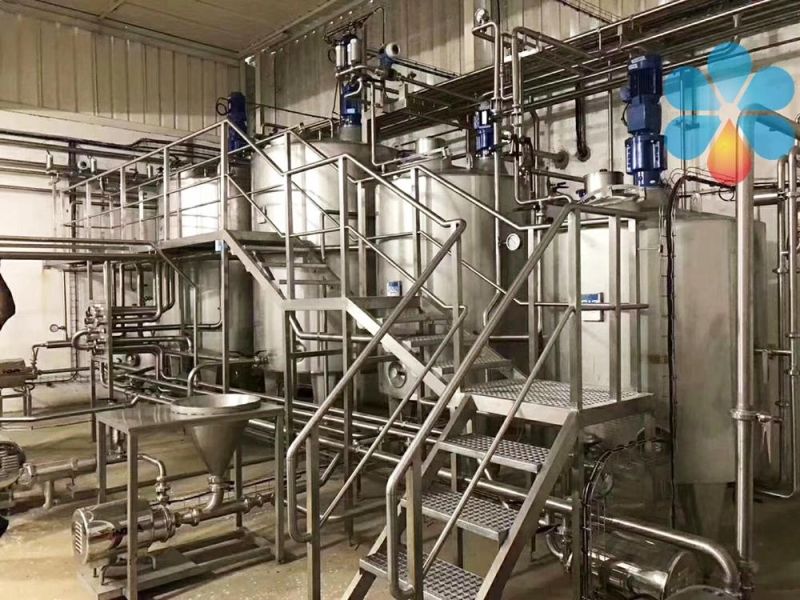

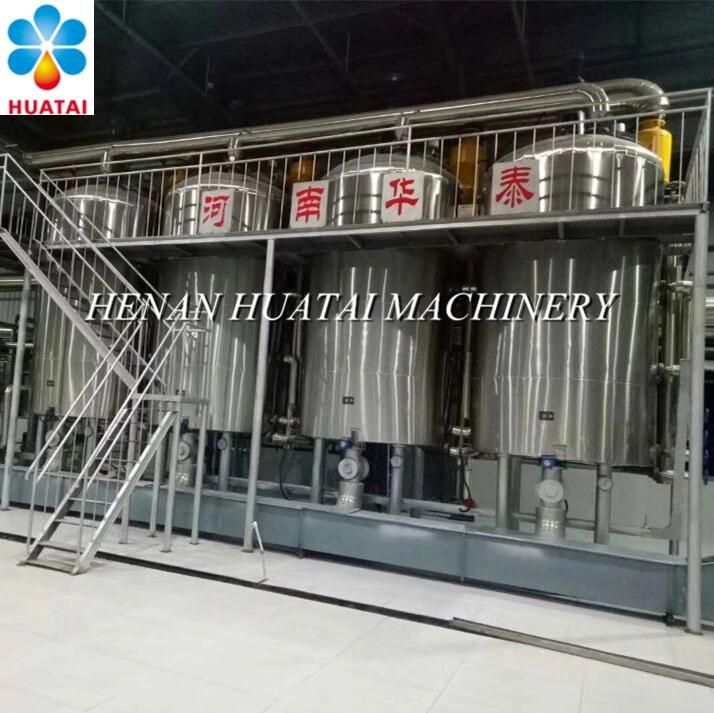

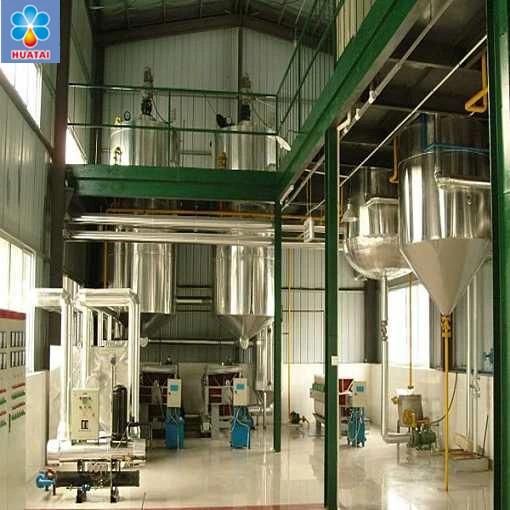

corner of refinery plant

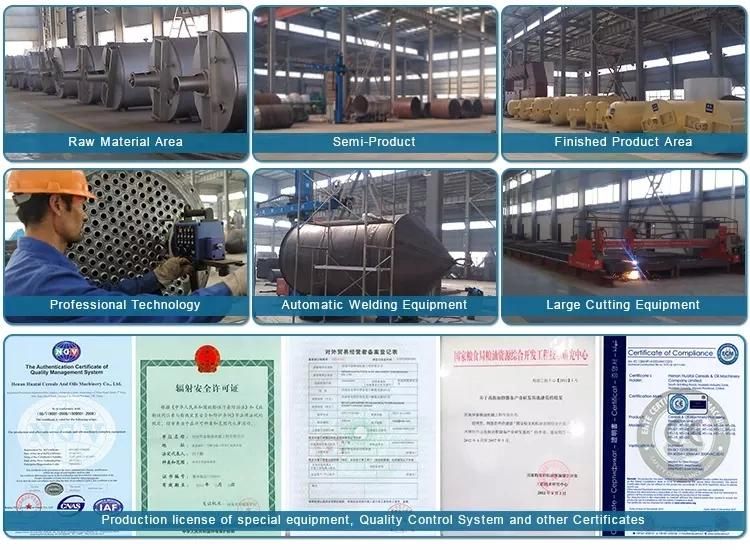

Huatai Machinery, the full name is Henan Huatai Cereals and Oils Machinery Co., Ltd. Located in Hua County industry Zone of Henan Province. Covering an area of 150,000 sqm, with total investment RMB360 millions, has a modern standard plant and advanced processing equipment, is a research and development, design, manufacture, guidance, installation as one of the major cereals and oil machinery manufacturing enterprise.

 Rich experience of large overseas projects

• Hundreds of successful overseas projects;
• Rich experience in government bidding projects;
• Products are exported to all over the world;
• Large project experience, can undertake 3,000t/d projects;

Dozens of certificates and honors

• Won Gold Award of China Invention Exposition;
• Excellent member of China Grain & Oil Association;
• Won the Provincial trustworthy unit for many years;
• China Top 10 Food and Oil Machinery Brand;
