• Model NO.：HTB-50
• Condition：New
• Customized：Customized
• Transport Package：Suitable for Shipping
• Specification：2100*280*1370mm
• Trademark：HUATAI
• Origin：Henan
• HS Code：84792000
• Production Capacity：30sets,Month

Basic Info.

Model NO. HTB-50 Condition New Customized Customized Transport Package Suitable for Shipping Specification 2100*280*1370mm Trademark HUATAI Origin Henan HS Code 84792000 Production Capacity 30sets/Month

Product Description

The advantages of biodiesel

Biodiesel, also known as fuel methyl ester, is a new type of fuel made from vegetable oil or animal oil processing. Its performance is similar to that of 0# diesel. When using biodiesel, there is no need to improve the structure of existing diesel engines. The characteristics are as follows:

1. Biodiesel is low in sulphur, but emissions of sulphur dioxide and sulfides are reduced by 30%.

2. Better lubrication performance can reduce the wear rate of fuel injection pump, engine cylinder and connecting rod

3. Better starting performance of low temperature reverse motor

4. Biodiesel has a high flash point, is not a dangerous product, is not volatile, and the biodegradation rate is as high as 98%

5. The cetane value of biodiesel is high, and its combustion performance is higher than that of petrochemical diesel

It's a renewable resource

7. High petrochemical efficiency ratio

Huatai Bio diesel technic
Type: high temperature preparation of biodiesel from high acid vegetable oil

Processing Material: vegetable oil, Acidic Oil, Soap-stock, Oil residue, Waste Cooking Oil, Animal Oil

Capacity: 10-500T/D

Major equipment: esterification reactor, distillation column, condenser, reboiler, pressure vessel

Application: biodiesel is a new type replacement fuel from renewable sources

Huatai patent invention of biodiesel production line adopts high efficiency biodiesel technology at high temperature to obtain biological diesel oil as renewable source. This environmental protective and reproductive biodiesel is available under certain temperature, pressure, catalyst, and form fatty acid methyl ester, and through high vacuum distillation and rectification technology with high oil purity.

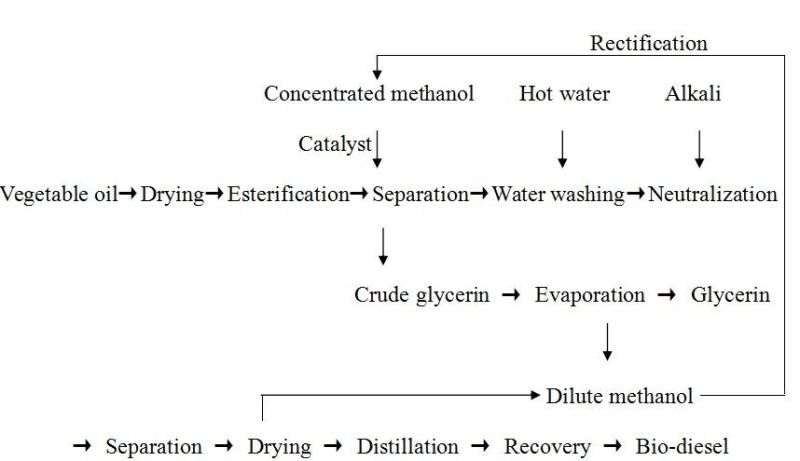

Biodiesel Process flow

Bio-diesel index

Item	Index
Density(at 15ºC)/g/ml	0.82-0.900
Dynamic viscosity(at 40ºC)/ mm2/s	1.9-6.0
Flash point/ºC	≥130
Sulphur content/%	≥0.005/0.05
Coking value 100%(CCR)/ %	≤0.05
Cetane value	≥49
Ash content /%	≤0.3
Moisture/ppm	≤0.05%
Total impurities/ppm	No mechanical impurities
Corrosive nature to copper (Extent of corrosion at 50ºC for 3h)	≤1
Neutralization value(mgKOH/g)	≤0.8% acid value
Methanol content%	--
Free glycerol %	≤0.02
Total glycerol %	≤0.24

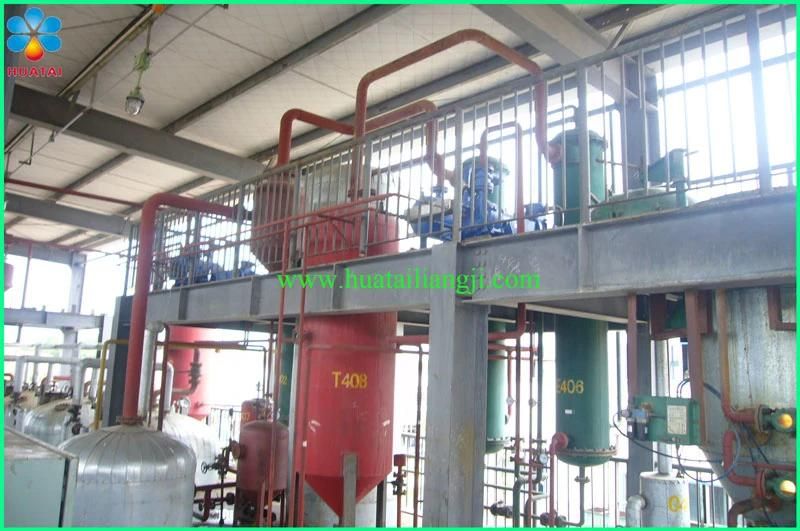

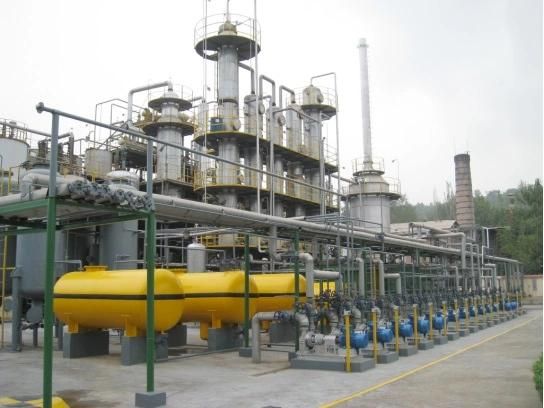

Biodiesel plants

Biodiesel Plant workshop

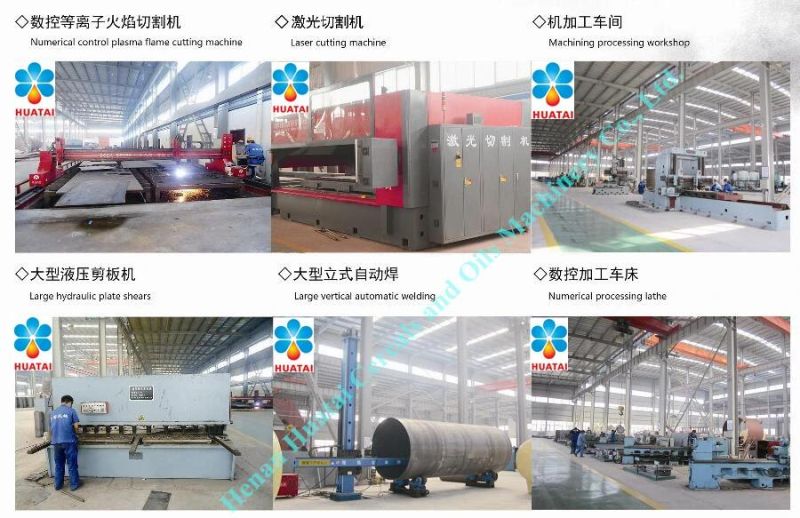

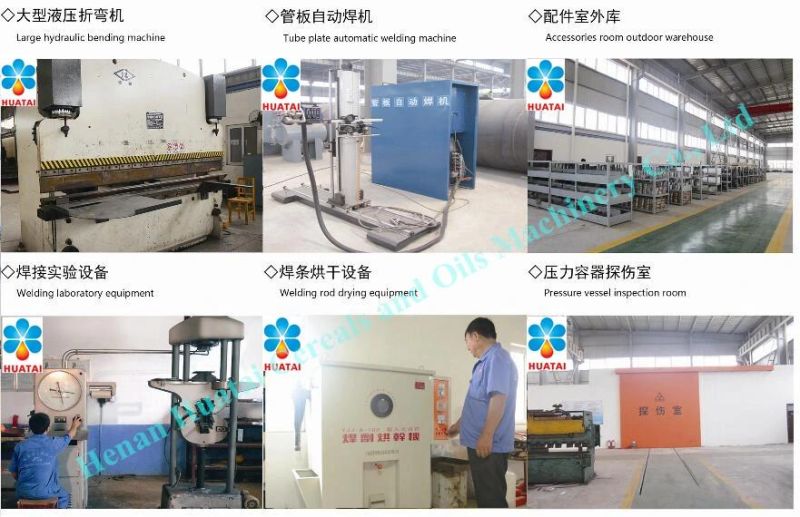

Huatai company advanced appliance



Customers all over the world come to visit our Huatai factory


Huatai Machines go to the world
