• Model NO.：HT-10 palm oil making
• Condition：New
• Customized：Customized
• Transport Package：Motor Wooden Case, Suitable for Export Packing
• Specification：2*8m
• Trademark：HUATAI
• Origin：Henan Provience, China
• HS Code：84792000
• Production Capacity：20set,Month

Basic Info.

Model NO. HT-10 palm oil making Condition New Customized Customized Transport Package Motor Wooden Case, Suitable for Export Packing Specification 2*8m Trademark HUATAI Origin Henan Provience, China HS Code 84792000 Production Capacity 20set/Month

Product Description

Huatai Palm oil Processing Technical
We adopt pressing craft to extract palm fruit oil, the craft is mature and perfect, design is reasonable, self- supply production mode not only save production cost but reduces environment pollution, and it benefits recycling and utilization of resource. According to actual conditions of project country, this project includes oil processing section, water treatment section and power supply section etc.

Capacity: 5~100TPH

Technical Indexes of Palm Oil Pressing Workshop
(1)Crude palm oil standard:

FFA :	<= 5 %
Moisture :	<=0.1 %
Impurity:	<=0.02 %

(2)Palm Kernel Standard :

Crushing rate:	<= 15 %
Moisture:	<=7 %
Impurity:	<=6 %

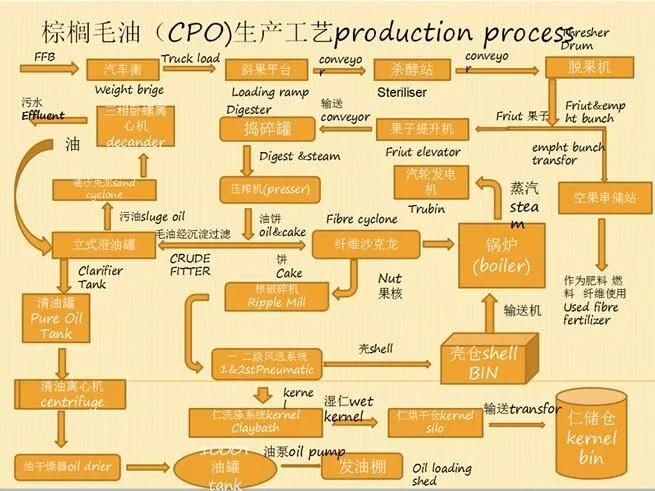

Palm Crude Oil Production process Line


Part of Palm fruit and kernel making oil equipment list

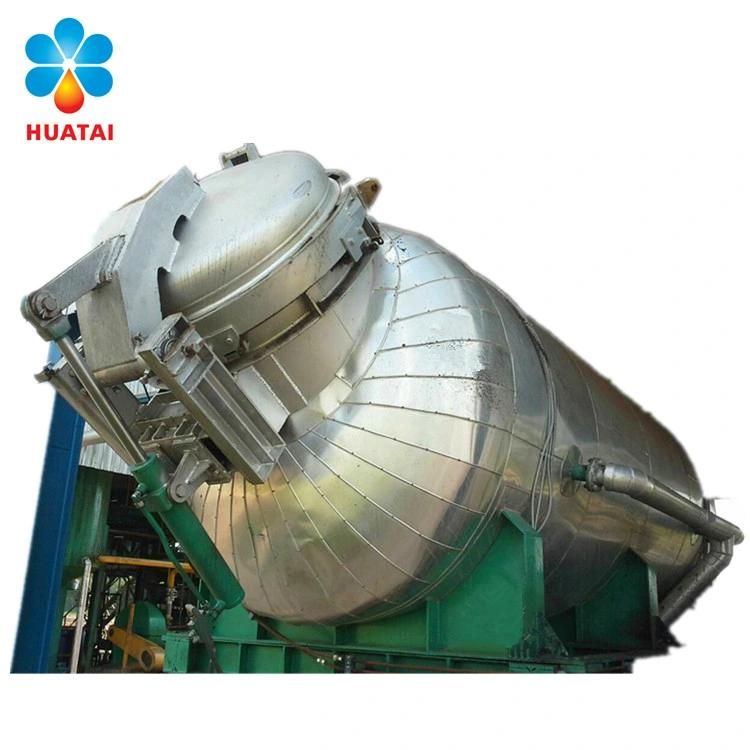

Sterilization tank: Cook the fruit bunches with high temperature and sterilization (145 ºC, 90-120minutes), easy to separate fruit from bunches, fruit becoming soft, increasing the humidity of the fruit, it is easy to extract the oil and also make the separation of the core-shell easier, preventing enzymatic decomposition to avoid free fatty acids content rising.



Splitter: Separate the fruit core and fiber. Blow fiber and other lighter things outside.

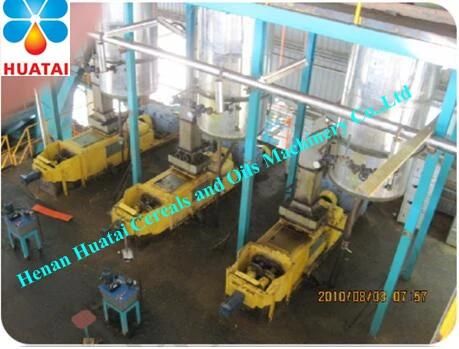

Pressing Machine of Palm oil Processing Equipment: Separate the pulp and nut, get CPO and nut, press machine adopts the double screw hydraulic continuous discharging, greatly improving production efficiency.

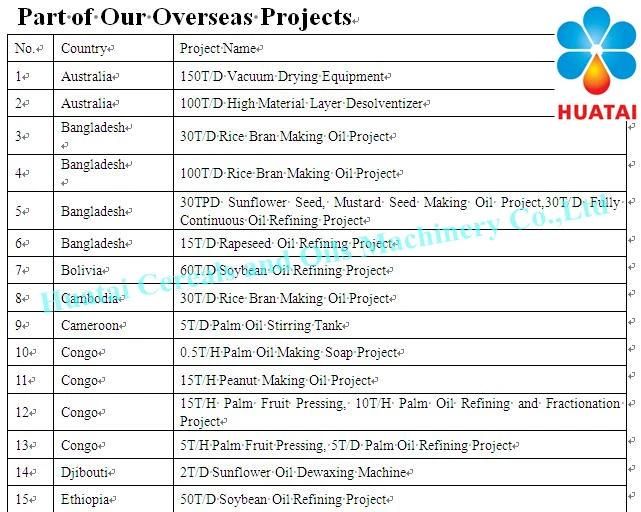

Part of Henan Huatai Cereals and Oils Machinery Oversea Projects

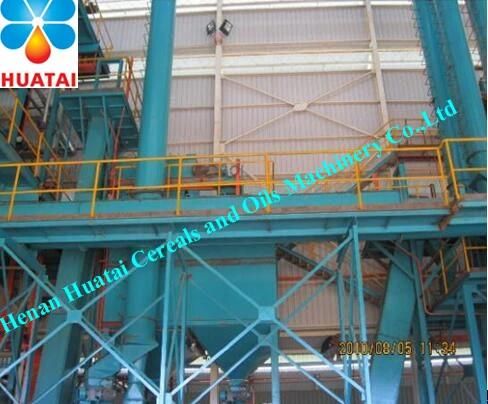

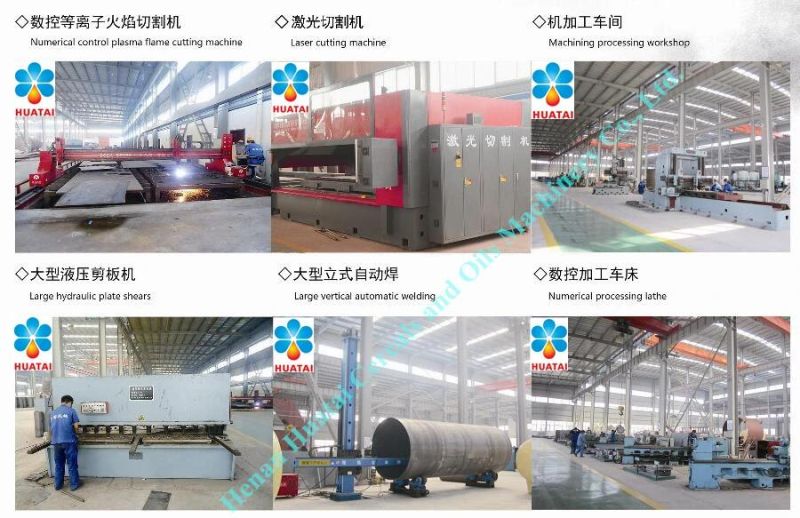

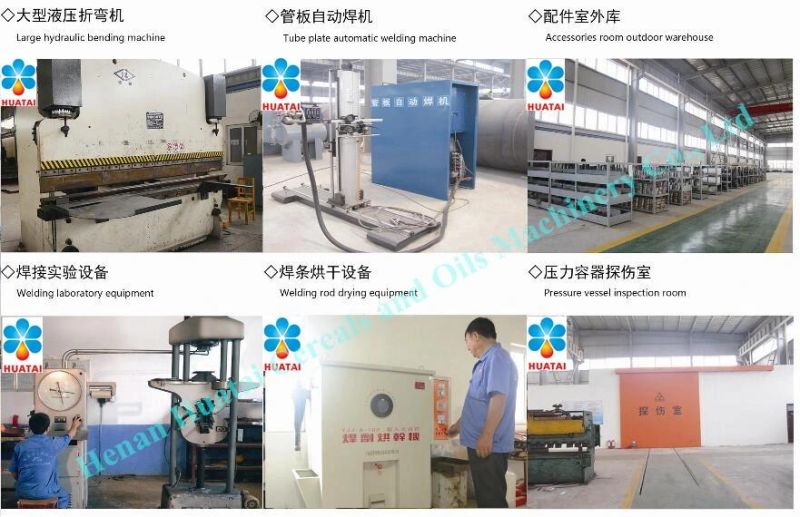

Huatai Workshop advanced processing Technology
