• Usage：Pharmaceutical, Food Industry
• Clean Type：High Pressure Cleaner
• Certification：Ce, ISO
• Principle：Physical
• Washing Model：Ultrasonic
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Ghamachine
• Origin：China
• HS Code：842230190
• Production Capacity：20sets,M

Basic Info.

Usage Pharmaceutical, Food Industry Clean Type High Pressure Cleaner Certification Ce, ISO Principle Physical Washing Model Ultrasonic Transport Package Wooden Case Specification CE Trademark Ghamachine Origin China HS Code 842230190 Production Capacity 20sets/M

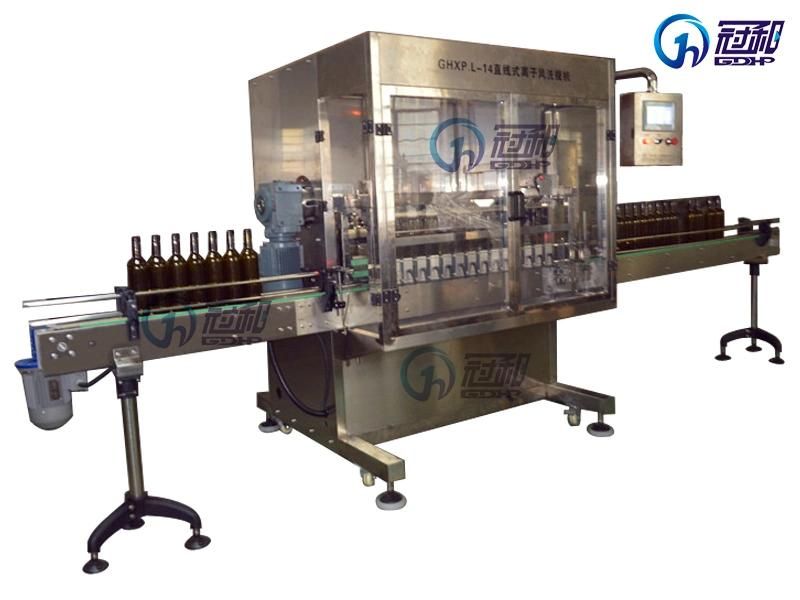

Product Description

Introduction:
Bottles gets into ultrasonic cleaning trough by bottle-entering inclined hopper, after ultrasonic cleaning, bottle screw carrys them to dial wheel and then into big rotor drum, held by manipulator, fliped 180 ° with bottles down, turning clockwisely with big wheel. under big wheel, the 6 sets of (water/air) jet nozzle with spray needles will insert spray needles into bottles, and then work according to set program: Second recirculated water, one compressed air, one fresh water, & second purified compressed air spray washing. At the same time, water also spray bottle outer, thus finishing the whole washing part. Then manipulators turn bottles with neck up, and get into next part by dial wheel.
Technical parametwers:

1. suitable bottles: oral liquid bottles, cillin bottles
2. working head: 40/60 heads
3. capacity: 160-300BPM
4. water consumption: 0.6~1m³/h   water pressure: 0.3~.4Mpa
5. water consumption: 0.6~1m³/h   air pressure: 0.35~0.45Mpa
6. power supply: 380V 50HZ
7. power: 13kw
8. G.W.: 1800KG
9. dimension: 2500×1000×1200mm

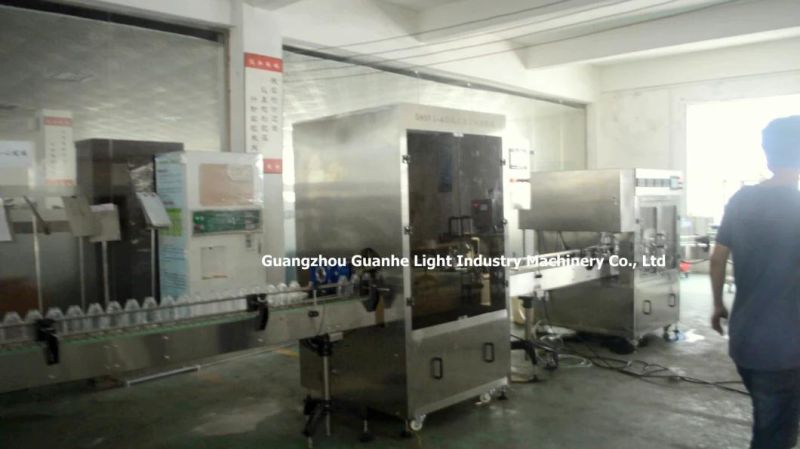

Some of our factory picture:
