Apple Puree Pulping Machine

Shanghai Jump Machinery & Technology Co., Ltd.
  • Type:Fruit Processing Line
  • Voltage:380V
  • Power:as Per Capacity
  • Customized:Customized
  • After Sale Service:Engineers Available to Servic
  • Warranty:1 Year

Base Info

  • Model NO.:JPM-FMSGS
  • Material:SUS 304,SUS 316
  • Applications:Various Fruit Paste ,Pulp
  • End Products:Mango Puree
  • Lead Time:80 Days
  • Transport Package:Export Standard Package
  • Specification:depend on processing capacity
  • Trademark:shjump
  • Origin:Shanghai
  • HS Code:8438600000
  • Production Capacity:20 Set,Year

Description

Basic Info.

Model NO. JPM-FMSGS Material SUS 304/SUS 316 Applications Various Fruit Paste /Pulp End Products Mango Puree Lead Time 80 Days Transport Package Export Standard Package Specification depend on processing capacity Trademark shjump Origin Shanghai HS Code 8438600000 Production Capacity 20 Set/Year

Product Description

Fruit Puree Paste high speed Pulping Machine with double stage ,single stage .Fruit refing machine.

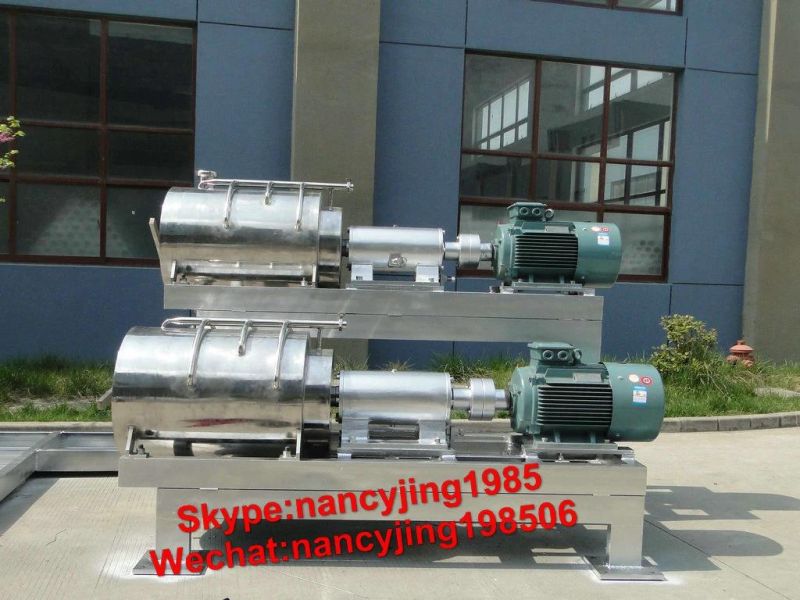

Apple Puree Pulping Machine


1.PRODUCTION NAME :
1)Single stage Fruit Pulper
2)Double stage Fruit pulper.
Apple Puree Pulping Machine


2.APPLICATION:
It's applicable to pulp the tomato,Chilli,Apple,Apricot, goji, strawberries, pears,mango and vegetable etc. to pulp the fruit into paste condition.it's adopt high speed working principle of multi-knifes,easy to operate

3.FEATURES
1).High capacity products output
2).SUS 304 stainless steel made. energy utilization
3).Excellent quality be made through high speed rotary and 0.8mm screen. to easy clear the seeds and skin separation.
4).Flexible structure. the distance between the blade and sieve can be adjustable.
5).The automatic pulp equipment.saving energy and labour.
6).the rotating speed can be adjutable.the pulping thickness can be adjusted as requested.

4.TECHNICAL PARAMETER:
Capacity: 1000-2000kgs/h
Power: 2.2-3
Sieve size: 0.6mm-0.8mm
Rotation Speed: 960-1460rpm
Machine Size: 1630X750X1050mm
ModleCapacity
(T/H)
Power
(Kw)
Dimensions
(mm)
SHJUMP-FPM-11-22.21630*750*1050
SHJUMP-FPM-22-331760*800*1150
SHJUMP-FPM-33-55.51850*1050*1250
