Safe Vacuum Tumbler for Meat Processing Vacuum Meat Tumbler/Meat Tumbling Machine
Qingdao Tune Machinery Co., Ltd.- Power Source：Electric
- Process：Rollling
- Automatic Grade：Automatic
- Type：Vacuum Tumbler
- Voltage：380V
- Customized：Customized
Base Info
- Transport Package：Wooden Box
- Specification：1200*1500*1300mm
- Origin：Shandong Province, China
- HS Code：8438800000
- Production Capacity：100-1000L
Description
Basic Info.
Transport Package Wooden Box Specification 1200*1500*1300mm Origin Shandong Province, China HS Code 8438800000 Production Capacity 100-1000LProduct Description
Product Display
Technical Parameter
| Model | TUNE-50 | TUNE-100 | TUNE-200 |
| Dimensions (L*W*H)mm | 980mm /520mm /830mm | 1400mm /720mm /1280mm | 1150mm /820mm /1100mm |
| Material | 304 full stainless steel | 304 full stainless steel | 304 full stainless steel |
| Tank Thickness | 3 mm | 3 mm | 3 mm |
| Vacuum pump | XD-20 | XD-20 | XD-20 |
| Vacuum degree | -0.08Mpa | -0.08Mpa | -0.08Mpa |
| Rotating speed | 8-12 (Frequency Control) | 8-12 (Frequency Control) | 8-12 (Frequency Control) |
| Volume | 50L | 100L | 200L |
| Production capacity | 30KG/batch | 50KG/batch | 100KG/batch |
| Power | 2.2 KW | 2.25 KW | 2.2 KW |
| Weight | ≈110(kg) | ≈200(kg) | ≈150(kg) |
| Model | TUNE-300 | TUNE-500 | TUNE-800 |
| Dimensions (L*W*H)mm | 1400mm /1020mm /1350mm | 1550mm /1020mm /1500mm | 1850mm /1020mm /1500mm |
| Material | 304 full stainless steel | 304 full stainless steel | 304 full stainless steel |
| Tank Thickness | 3 mm | 3 mm | 3 mm |
| Vacuum pump | XD-20 | XD-20 | XD-20 |
| Vacuum degree | -0.08Mpa | -0.08Mpa | -0.08Mpa |
| Rotating speed | 8-12 (Frequency Control) | 8-12 (Frequency Control) | 8-12 (Frequency Control) |
| Volume | 300L | 500L | 800L |
| Production capacity | 150KG/batch | 250KG/batch | 500KG/batch |
| Power | 2.25 KW | 2.25 KW | 2.95 KW |
| Weight | ≈220(kg) | ≈260(kg) | ≈450(kg |

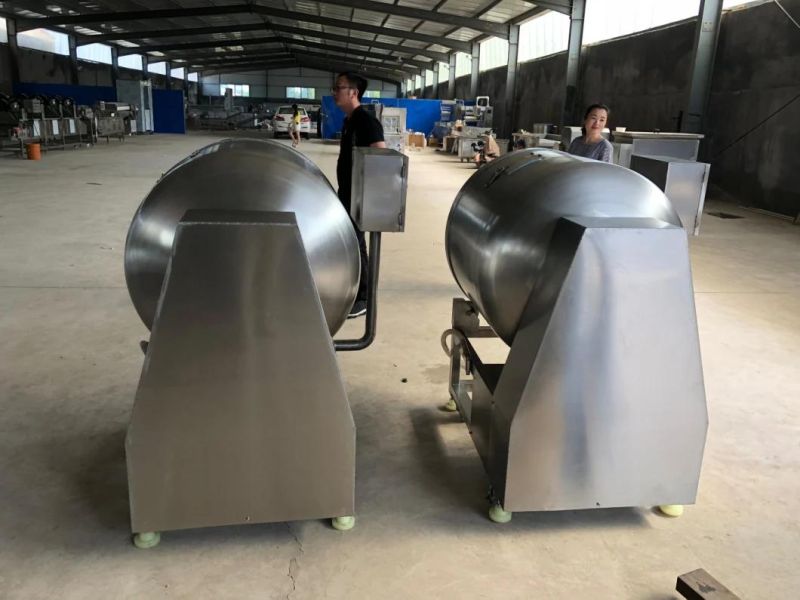

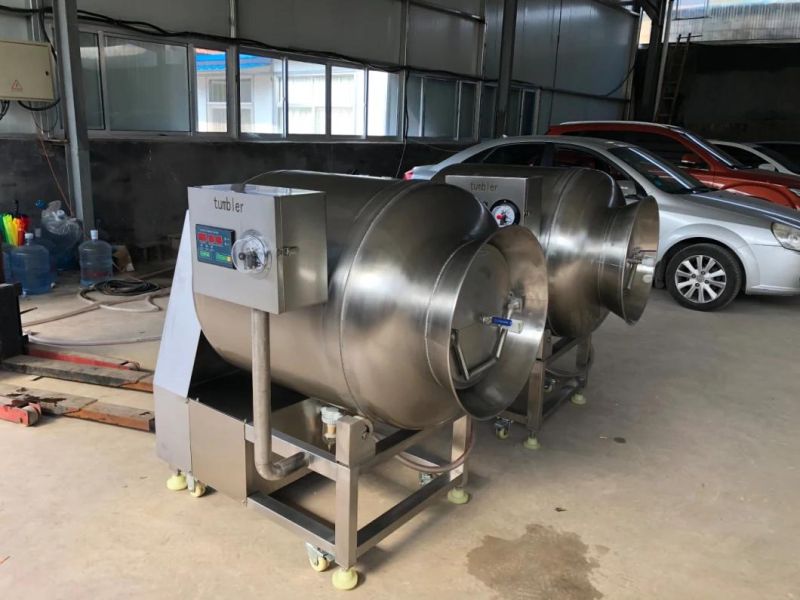

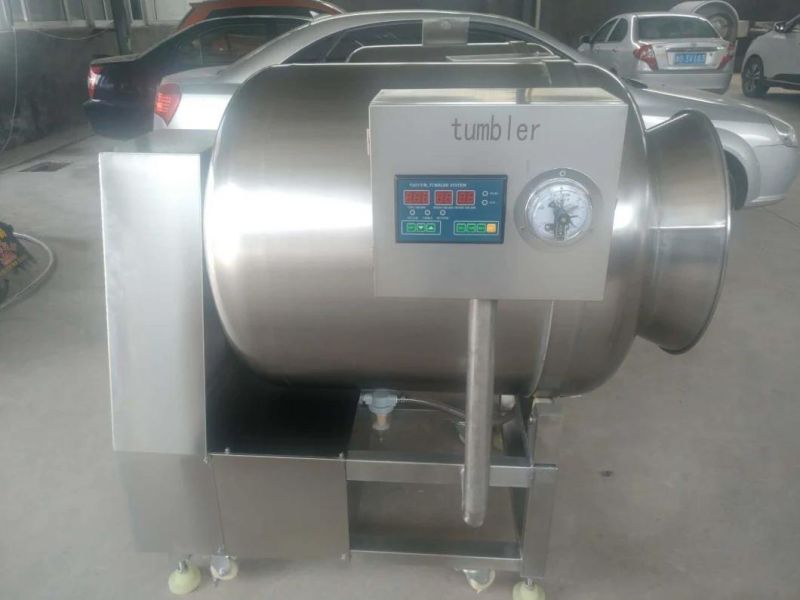

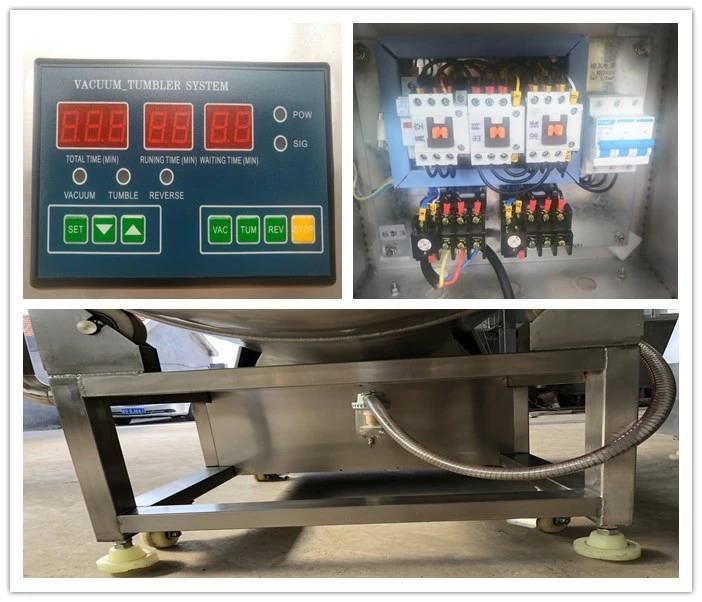

Detailed Images

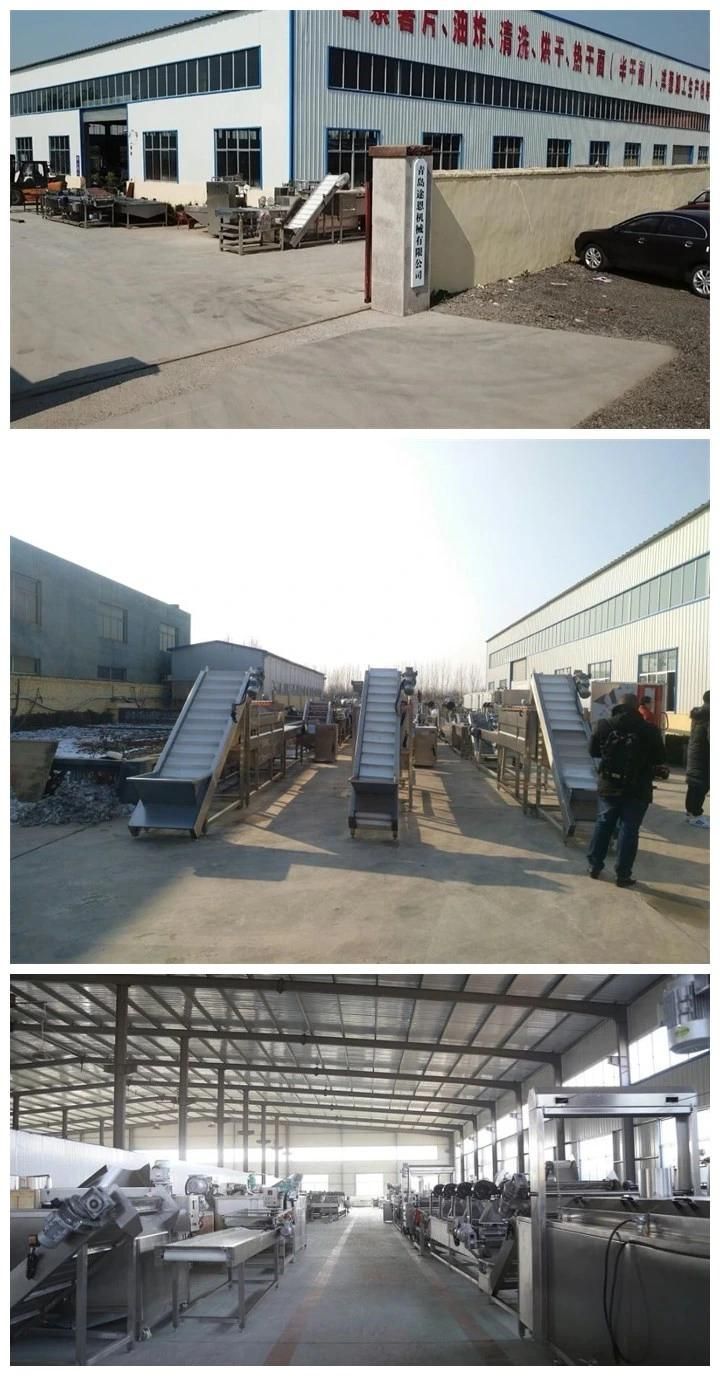

Our Company
Packing & Delivery
FAQ
No1:Is sample order accepted?
Yes,sample order is accepted. You can place a trail order to evaluate the product quality and fabrication skill first.
No2:Is customized order accepted?
Yes, customized order is accepted.we are the ODM and OEM company.we can make the machine accroding to your requirement.
No3:How about the delivery?
after a 50%-80%deposit(if the machine is customized,you need to pay 80% deposit, if the amount is little,you need to pay full payment),we will prepare the products .
No4:How long of the validity term of the quotation?
The validity term of the quotation is 30days.
No5:How long of the guarantee period?
The Guarantee period is one or two years.
No6:Can we visit your factory?
Yes,of course,we are so happy if you visit our factory.
No7:After-sales service
According to the equipment which you have bought,we will discuss more information or technology about the machine with you,also send you pictures or videos about how to use and install it.
Every clients care about the after-sell service, so we are:
1:The Machine gets one year warranty period.
2:During the time, If the machine get in trouble we will guide you to deal with the problems.
That is our promise . And we are looking for a good distributor in your country ,so the problems above they will be solved more timely .And we hope after tested the machine here could take a good business cooperation.
