• Model NO.：TS
• Application：Chips
• Customized：Customized
• Material：304 Stainless Steel or According to Customer Requi
• Heating Method：Electric Heating
• Time：4-20min
• Transport Package：According to Customer Requirement
• Specification：Customized
• Trademark：Ambitious
• Origin：China
• HS Code：8438600000
• Production Capacity：20pieces,Year

Basic Info.

Model NO. TS Application Chips Customized Customized Material 304 Stainless Steel or According to Customer Requi Heating Method Electric Heating Time 4-20min Transport Package According to Customer Requirement Specification Customized Trademark Ambitious Origin China HS Code 8438600000 Production Capacity 20pieces/Year

Product Description

1.- Potato Chips Processing Machine
Introduction of the potato chips:

Potato chips (British English:Crisps, American English:Potato Chips)are snack food made from fresh potatoes.

Potato chips are thin slices by cutting fresh potatoes, then fried,seasoned into crisp snacks,delicious and have
become one of the most popular snacks in the world and has developed a variety of flavors.

Nowadays,potato chip is an important part of snack food in lots of countries and areas.

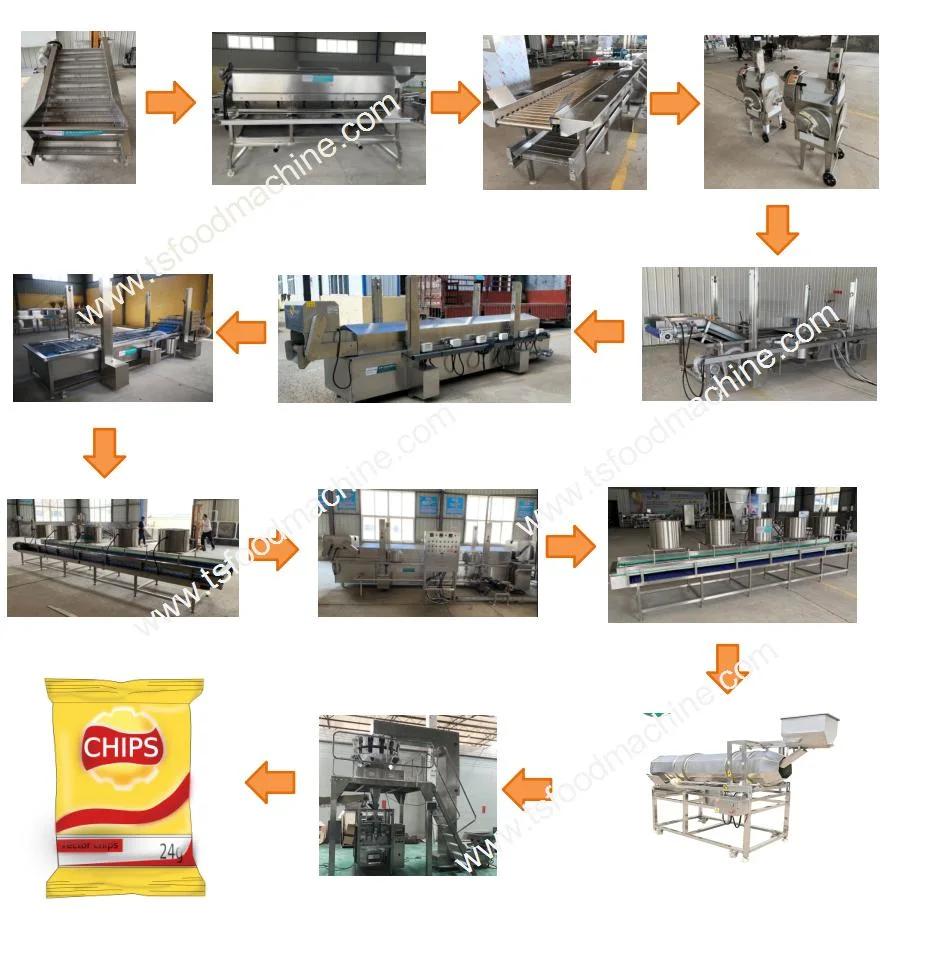

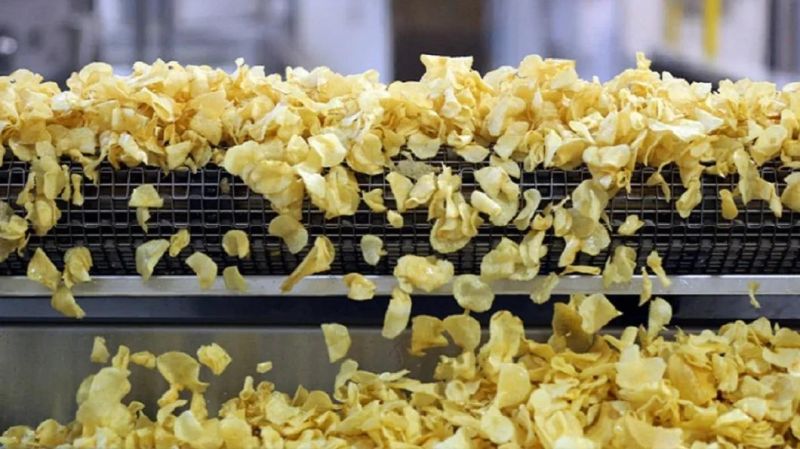

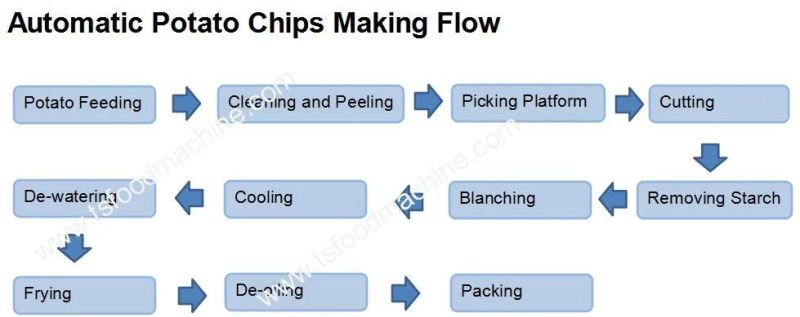

 Introduction of the potato chips machine and production line:

The potato chips machine line is an advanced snack food processing equipment. It integrates
the advantages of all kinds of individual machines, easy to be operated, powerful and investment
saving.
There're four types of produciton lines classified by the output(kgs/hour), small output capacity needs smaller
area and lower cost, and normally semi-autmatic. Bigger output capacity
needs bigger layout and higher cost, you can choose the suitable one based on your total budget.

The factors affecting the oil content of potato chips:

1. The higher the density, the lower the moisture content of potato chips before frying, and the potato chips after
frying.The lower the oil content. It is proved that the moisture content of potato slices can be reduced by 25%
and the oil content of fried potato chips can be reduced by 6-8%.

2. The thinner the chips, the higher the oil content.

3. The higher the oil temperature, the lower the oil content of potato chips. With the increase of oil temperature,
 the density and viscosity of oil decrease, and the oil storage per unit space also decreases.

4. Different types of frying oil will also affect the oil content of potato chips.

5. In a certain period of time, the longer the frying time, the higher the oil content of potato chips.

Features :
1.Compact structure ,easy operation
2.Has advantage of continuous production, save the labor
3.Food-grade stainless steel fry

2.- Potato chips frying Machine Applications
This frying Machine widely use for all kind of snacks, seafood,shrimp, squid , peanut, french fries, potato chips,
cassava chips, green beans, peanuts, pineapple, dried bean curd, bean curd, bean curd, fritters, twist so on.



3.-Technical parameters

Output	100kgs/hr	150kgs/hr	200kgs/hr
Factory Layout(Min)	250m2,length 18m	600m2,length 50m	800m2,length 70m
Electric Required	17KW	29KW	34KW
Gas Required	6m3	11m3	16m3
Edible Oil Required	470L/lot	550L/lot	830L/lot
Labor Required	4	6	8
Raw Potatoes Material	500kgs	750kgs	1000kgs

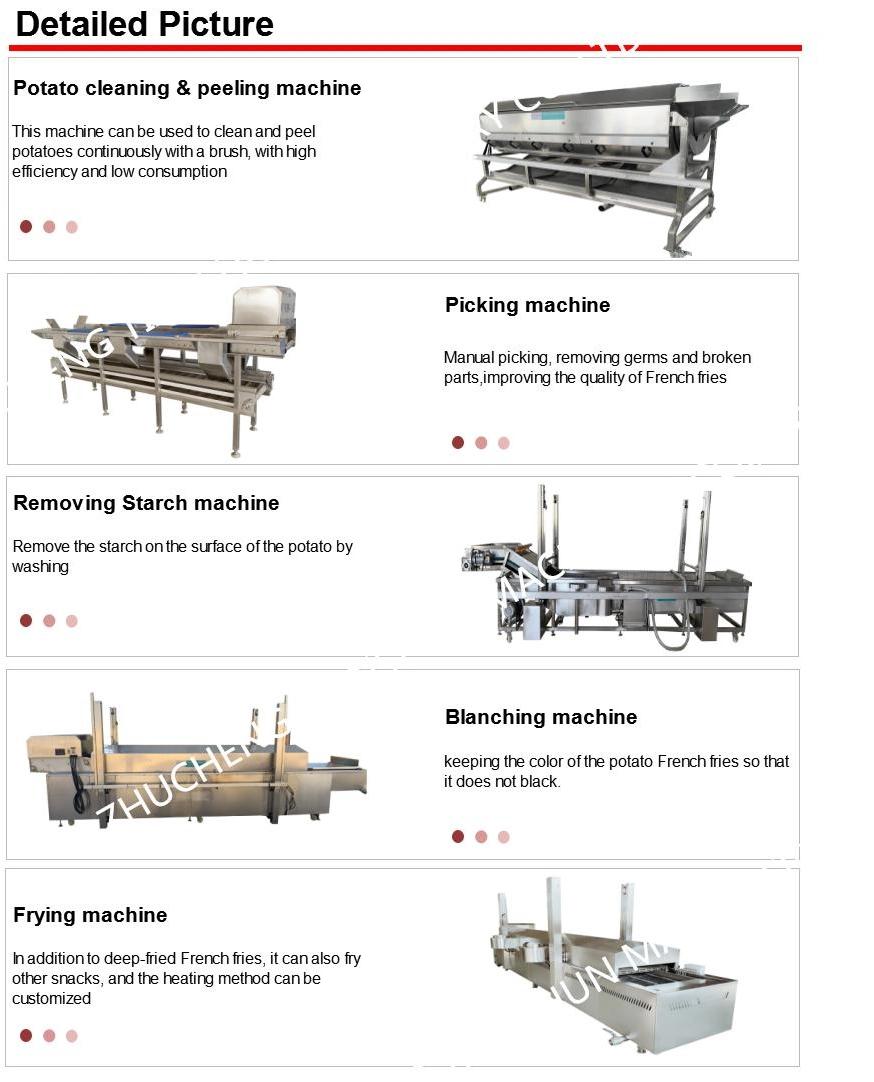

4.-Machine Details

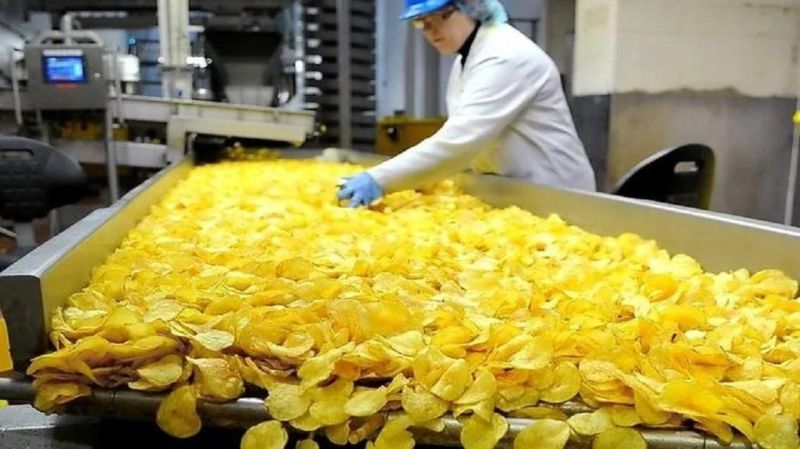

5.-Use site

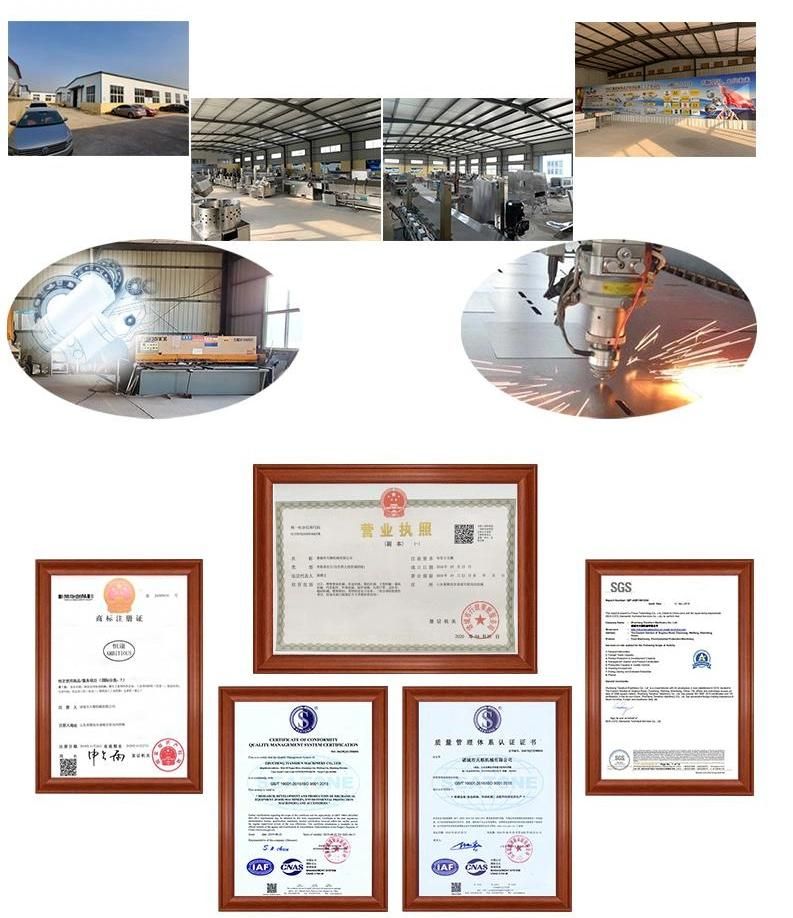

6.-Company profile
Zhucheng Tianshun Machinery Co.,Ltd. is a modern food equipment and machinery manufacturing enterprise
which
integrating R & D, production, sales and after-sales services.
Mainly manufactures food frying machine,washing machine, blanching&cooking machine,sterilizing machine,
quick freezer,freeze dryer,drying machine,packing machine,vegetables/fruits cutting machine,and complete
production line,etc.The equipment are widely used for fruits,vegetables,aquatic products,meat,pasta,medicine,
pet foods processing factories,and
central kitchens as well.

Our company has always been seeking new development,from process requirements,design,production,quality
tracking to after-sales service are all controlled by technical engineers. It has strong technical force, excellent manufacturing facilities,advanced technology and stable product quality.
We always adhere to the business philosophy of "Establishing enterprises with integrity and win-win innovation",
and create higher value for customers and society. We have customers all over the world and our products have
been enjoyed a high reputation on overseas market.
7.-  Packing and shipment
8.-Our clients
