Automatic Taro Cassava Potato Peeling Cutting Washing Drying Production Line

Foshan Wanlong Machinery Co., Ltd.
  • After-sales Service:Free Lifetime Online Severice
  • Warranty:18 Monthes
  • Type:Cutter
  • Voltage:220V
  • Power:1.5KW
  • Customized:Customized

Base Info

  • Model NO.:LX-23
  • Cutting Shape:Slice, Shred, Cube
  • Cutting Size:6,7,8,9,10,12mm
  • Material:Stainless S
  • Transport Package:Wooden Case
  • Specification:1100*1080*700mm
  • Origin:China
  • HS Code:8438600000
  • Production Capacity:600-1000kg Per Hour

Description

NameParameterDetialPotato washer and peeler Voltage: 380V/3 phase (customized) Size: 3000x880x1550mm Power: 3KW Output: 1000-2000kg/h Roller Length: 2.3M (8 pcs)This machine is used in automatic production line.
Suitable for: potato, carrot, taro, ginger and other root vegetables and fruits cleaning or peeling.Picking Line
 Material: stainless steel +PP          Length: 2 meter                              Voltage: 220V/380V
Power: 0.5 kw
Customized as your needs.
The sorter is mainly used for the primary selection of the sundries and abnormal products of materials, and is used for connecting the production line.ConveyorMaterial: stainless steel +PP
Length: 2 meter
voltage: 220V/380V
Power: 0.5 kwSize is customized,and is used for connecting the production line.Vegetables CutterVoltage: 380V
Power: 0.75KW
Horsepower: 1HP
Weight: 70KG
Size: 900x680x450MM
Output: 300~1000 kg/h
Materil: stainless steel
 Machine can cut radish, potato, sweet potato, taro, bamboo shoot, onion, eggplant, apple, ginger and many other melon fruit slice, shred, dice, such as potato chips, chips, radish and so on, thickness size specification can be customized.ConveyorMaterial: stainless steel +PP
Length: 2 meter
voltage: 220V/380V
Power: 0.5 kwSize is customized,and is used for connecting the production line.Blanching MachineVoltage: 380V
Capacity: 800kg/h
Pneumatic
Power: 2.2KW
Ascension Power: 0.75kw
Ascension Rate: adjustable The fruit and vegetable bleaching machine is suitable for quick freezing of fresh vegetables, fruits, aquatic products, and other materials, scalding and scalding before dehydration, soaking, sterilization, disinfection, etc. Cooling Machinecapacity: 800kg/h
voltage: 380V/50hz/3 phase
power: 3kw
Note:
customized as your output- Ozone sterilization
- adjustable air (bubble) inlets
- adjustable circulating water inlets
- removable bottom tray
- spray rinsing
- adjustable speed and tiltable conveyor
Suitable for  fresh vegetables, salted vegetables, fungi and seafood.
Air DryerVoltage: 220/380V
Power: 4kw
Output: 1-3T / h
Weight: 230kg

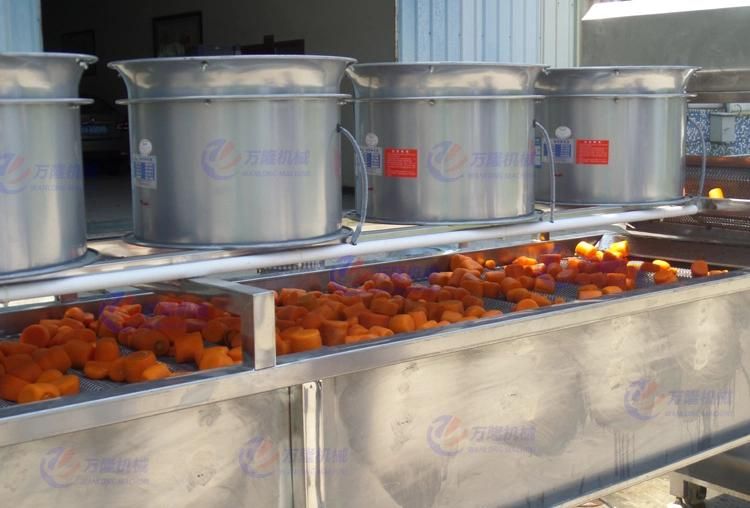

Size:customized as your outputAir drying machine can remove water from vegetable or fruit which after washing, also can be fore cooling down the temperature after washing or blanching.

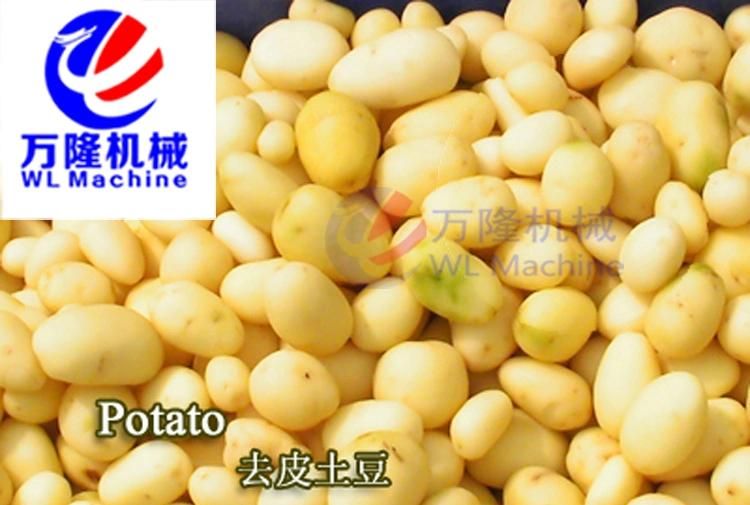

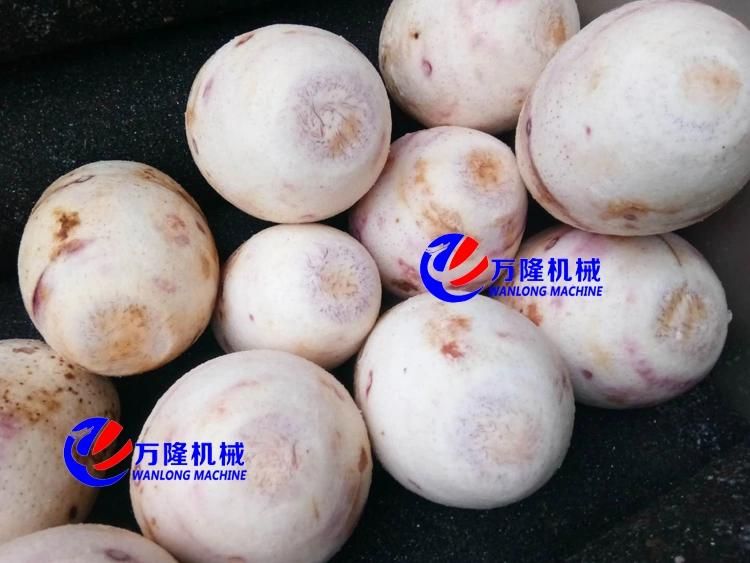

Peeling effect:
Automatic Taro Cassava Potato Peeling Cutting Washing Drying Production Line
Automatic Taro Cassava Potato Peeling Cutting Washing Drying Production Line

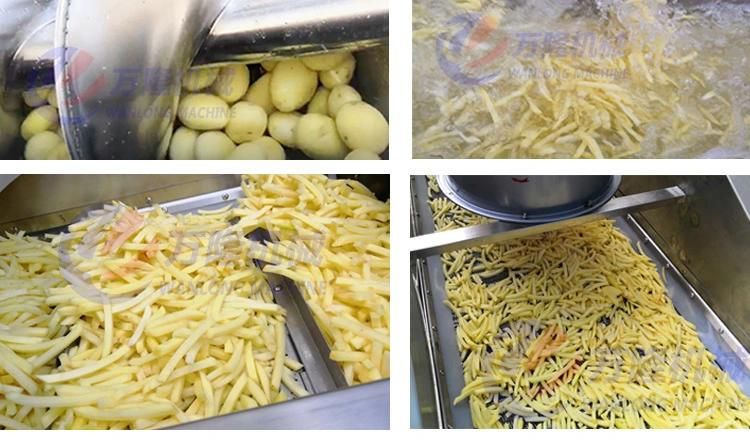

Cutting effect: slices, shreds, cubes are available.

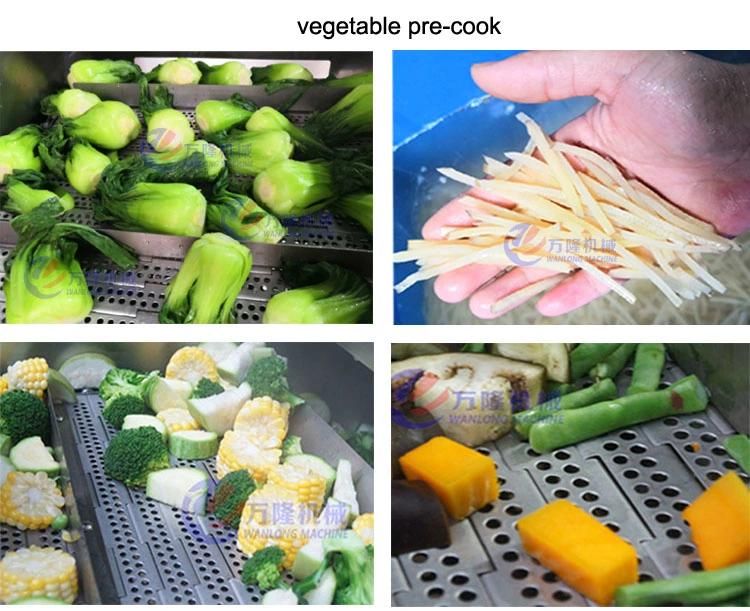

Automatic Taro Cassava Potato Peeling Cutting Washing Drying Production LineBlanching effect as below:
Automatic Taro Cassava Potato Peeling Cutting Washing Drying Production LineAutomatic Taro Cassava Potato Peeling Cutting Washing Drying Production Line

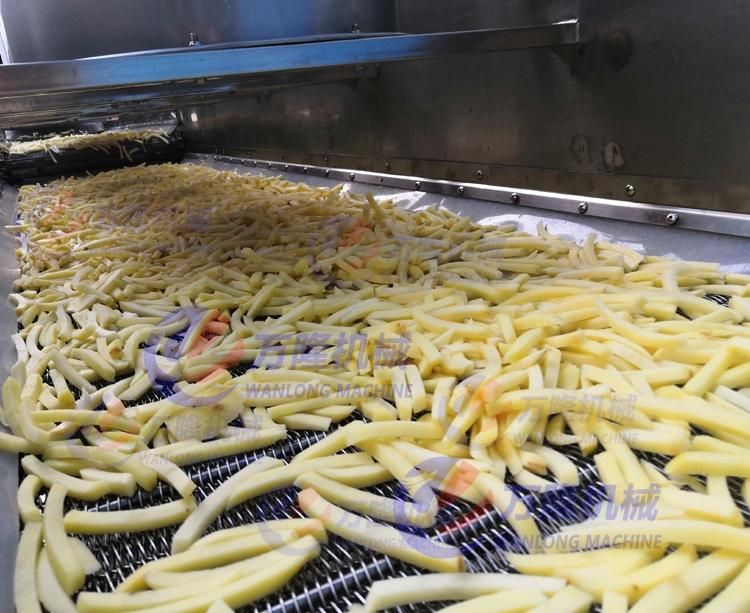

Drying effect:

Automatic Taro Cassava Potato Peeling Cutting Washing Drying Production Line

Automatic Taro Cassava Potato Peeling Cutting Washing Drying Production Line
