• Model NO.：KLG12 KLG20 KLG24
• Condition：New
• Customized：Customized
• Line：Arrowroot Starch Processing Line
• Useful Life：20 Years
• Material：Stainless Steel
• Energy：Electric
• Capacity：20 T,H
• Warranty：12 Months
• Product Name：Vacuum Filter
• Advantage：High Efficiency
• Service：Overseas Installation
• Training：Yes
• Working Type：Continuous Working
• Power：45 Kw
• Transport Package：Wooden Case
• Specification：Stainless Steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. KLG12 KLG20 KLG24 Condition New Customized Customized Line Arrowroot Starch Processing Line Useful Life 20 Years Material Stainless Steel Energy Electric Capacity 20 T/H Warranty 12 Months Product Name Vacuum Filter Advantage High Efficiency Service Overseas Installation Training Yes Working Type Continuous Working Power 45 Kw Transport Package Wooden Case Specification Stainless Steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

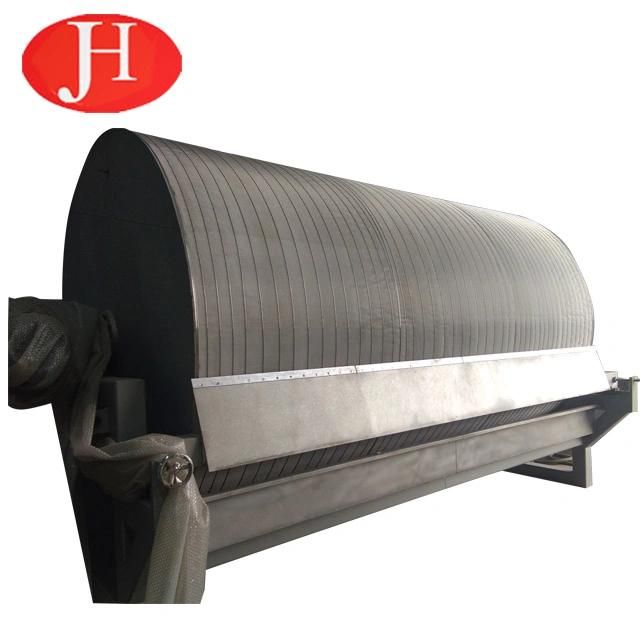

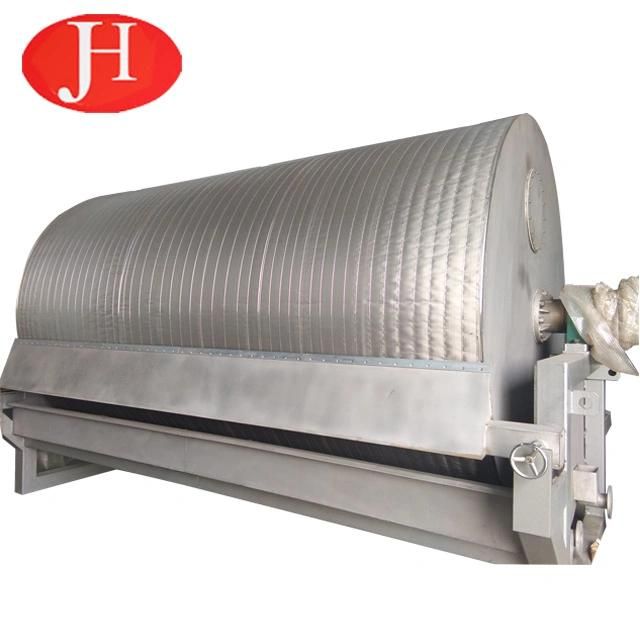

vacuum filter arrowroot starch milk dewatering machine starch processing lineDescription of arrowroot starch milk dewatering machine
Zhengzhou Jinghua Industry Vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk dewatering in .potato starch,wheat starch,cassava starch and sweet potato sago starch project.

Features of vacuum filter
1. Fully stainless steel with no corrosion to the raw material
2. Compact structure and nice design
3. Speed of rotating drum can be adjusted according to actual site.
4. Material uploaded through blade, which is made of high rigid alloy and can be adjusted.
5. Lower energy consumption, smaller area.Than centrifuge
6. Stable operation.

Main technical parameters

Model	KLG12	KLG20	KLG24	KLG34
Vacuum degree	0.04~0.07 Mpa	0.04~0.07 Mpa	0.04~0.07 Mpa	0.04~0.07 Mpa
Content of solid	≥60%	≥60%	≥60%	≥60%
Feeding density	16-17 Be°	16-17 Be°	16-17 Be°	16-17 Be°
Capacity	4 t/h	6 t/h	8 t/h	10 t/h
Power	3 Kw	4 Kw	4 Kw	4 Kw
Drum rotary speed	0-7.9 r/min	0-7.9 r/min	0-7.9 r/min	0-7.9 r/min
Weight	3000 kg	4000 kg	5200 kg	6000 kg
Dimension(mm)	3425x2312x2213	4775x2312x2213	4785x2630x2600	5060x3150x3010

The working principle of vacuum filter
Rotary drum vacuum filter machine adopts vacuum suction method to achieve solid particles and liquid separation. Work, driven by speed regulating motor rotating the drum in the slurry tank, vacuum pump to produce vacuum inside the drum, under the action of pressure difference, material suspended solution over the surface of the drum forming uniform coating, when reaching a certain thickness from pneumatic scraper to starch, filtrate into the steam separator, so as to achieve the aim of starch, water, gas separation.

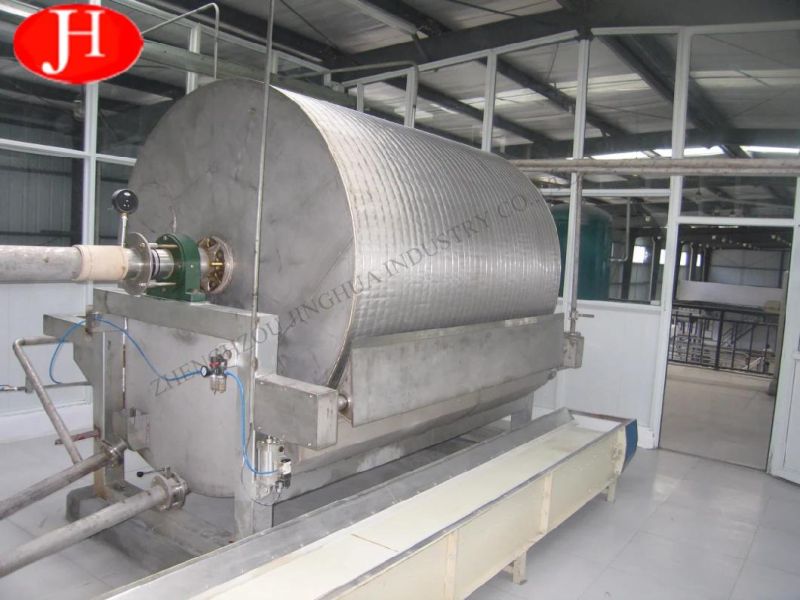

Real application case




Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

Company Information
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

Our Factory


Our Workers


Our Workshop


Our Workshop


FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: ZZJH is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
