• Model NO.：YLW150
• Customized：Non-Customized
• Product Name：Ylw150 Centrifuge Oil Filter
• Advantages：Oil Left in Oil Residue, Easy Operation
• Port：Chongqing, Guangzhou, Shanghai, etc
• Main Market：Southeast Asia, Africa, Russia, etc
• Delivery Time：7~30days Once Order Confirmed
• Color：as Per Customer ′s Request
• Minimal Order Quantity：1piece
• Processing Capacity(Kg/H)：300
• Motor Power：3.24 Kw
• Measurement (Lxwxh)mm：1060*610*960

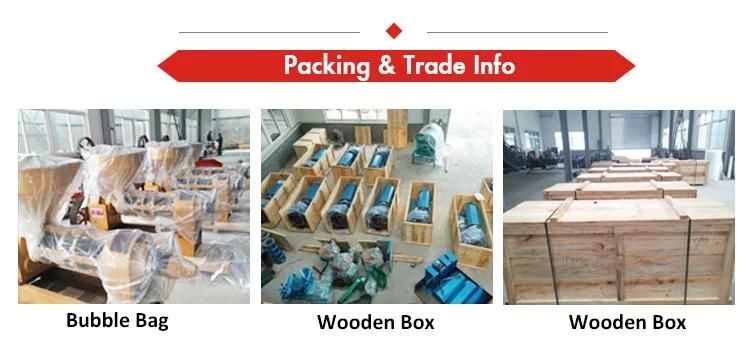

• Transport Package：Wooden Box
• Specification：ISO, BV, SGS
• Trademark：GUANGXIN
• Origin：Sichuan, China
• HS Code：84792000
• Production Capacity：400pieces,Month

Basic Info.

Model NO. YLW150 Customized Non-Customized Product Name Ylw150 Centrifuge Oil Filter Advantages Oil Left in Oil Residue, Easy Operation Port Chongqing, Guangzhou, Shanghai, etc Main Market Southeast Asia, Africa, Russia, etc Delivery Time 7~30days Once Order Confirmed Color as Per Customer ′s Request Minimal Order Quantity 1piece Processing Capacity(Kg/H) 300 Motor Power 3.24 Kw Measurement (Lxwxh)mm 1060*610*960 Transport Package Wooden Box Specification ISO, BV, SGS Trademark GUANGXIN Origin Sichuan, China HS Code 84792000 Production Capacity 400pieces/Month

Product Description

Centrifugal Subside Oil Residue Separator Description

The new product Centrifugal Subside Oil Residue Separator is developed by our company to meet customers' demand. It is suitable for automaticly separating the residue from the crude oil and can work with single spiral oil press, such as YZYX10, YZYX120, YZYX130 series, etc. Comparing with the traditional filters, it has below advantages:

1. Has better oil and residue separating effect.
2. Easy operating and higher efficiency.
3. No filter cloth, avoiding washing filter cloth.
4. No need clean the oil residue every time after filtrating.
5. The oil looks clean and clear after filtrating and the tank will not overflow.
6. We have two models: YSLC430 and YSLC500.


Quality Standard
Conform to JB/T9793· 1-1999 of the People's Republic of China & ISO9001: 2008.
Warranty terms
Free replacement of main body in 12 months from the date of purchasing if any quality problem.



After-sale service
1. We supply spare parts timely all year around;
2. We afford technical solutions for buyers at any time;

Model	YSLC430	YSLC500	YSLC600B-6	YLW150
Processing Capacity (kg/h)	80-120	120-180	250	300
Diameter of Drum (mm)	430	500	500
Revolving Speed of Drum (r/min)	1460	1246	1400	4015
Power (k.W)	4	4	2.2	3.24
Measurement (mm)	580*520*930	840*658*900	900*600*940	1060*610*960



Provided accessory

Accessory Name	Specification	Quantity (pcs)
Allen Wench	6	1
Allen Wench	10	1
Foot Bolt	M12*200	4
Allen Nut	M12	4
Rubber Plate		3
Steel Plate
