3 Tpd Small Oil Extractor for Peanut Sesame Rapeseed etc

Sichuan Guangxin Machinery of Grain & Oil Processing Co., Ltd.
  • Type：Spiral Oil Press
  • Application：Oil Seeds
  • Voltage：380V
  • Appearance：Horizontal
  • Press Materials：All Kinds of Seeds and Nuts
  • Press Series：Second

Base Info

  • Model NO.：YZYX90
  • Condition：New
  • Customized：Non-Customized
  • After-Sales Service Provided：Engineers to Service Machinery Overseas
  • Product Name：Small Size Oil Extraction Machine
  • Port：Shanghai, Chongqing, Guangzhou, etc
  • Delivery Time：7~30days Once Order Confirmed
  • Advantage：Low Oil Left in The Cake, High Output
  • Applicable Oil Plants：All Oil-Bearing Material
  • Color：Any Color You Like
  • Place of Origin：Sichuan, China
  • Factory History：30 Years Experience
  • Transport Package：Wooden Box
  • Specification：ISO, BV, SGS
  • Trademark：GUANGXIN
  • Origin：Sichuan, China
  • HS Code：84792000
  • Production Capacity：400pieces,Month

Description

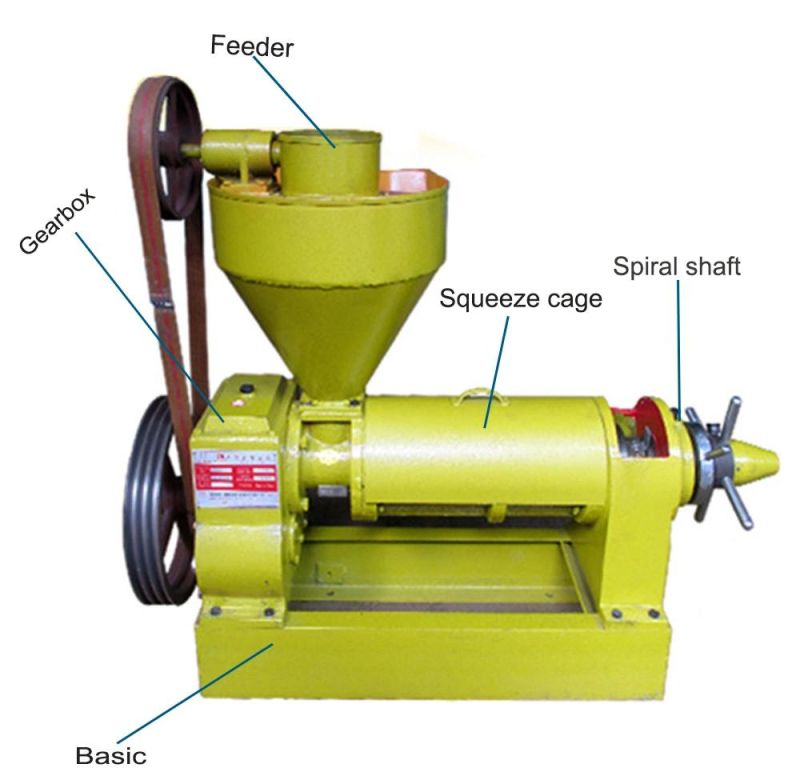

Technique featuresProduct NameSpiral oil pressModelYZYX90Processing capacity (t/24h)3.0Oil content of dry cakes (%)≤8Power required  (KW)5.5Measurement  (mm)1200×550×1000(L*W*H)    Spiral axes rotate speed  (r/min)32-42Weight  (KG)285
3 Tpd Small Oil Extractor for Peanut Sesame Rapeseed etcSingle Sprial oil press ModelYZYX70YZYX90YZYX10(95)YZYX120YZYX130YZYX140YZYX168Processing capacity (t/24h )1.333.5~46.589~1120Oil content of dry cake(%)≤7.8≤7.8≤7.8≤7.0≤7.6≤7.6≤7.4Oil press power(k.w )45.57 or 1111 or 1515 or 18.518.5 or 2237or 45Measurement(LxWxH)1090*405*8061200*550*10001620*580*11951860*622*12751950*742*15002010*690*14302670*1000*1726Spiral axes rotate speed (r/min)36-4232-4232-4232-4028-4028-3832-38Weight (kg)1952855705908258061800
     2.organic Sunflower Oil Extraction Machine applicable oil plants:
  not only suitable for  dried olive,but for rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc.
3 Tpd Small Oil Extractor for Peanut Sesame Rapeseed etc



       3.Quality Standard:
Conform to JB/T9793·1-1999 of The People's Republic of China & ISO9001:2008 and has BV,SGS,ISO certificated.
 3 Tpd Small Oil Extractor for Peanut Sesame Rapeseed etc

    4.Warranty terms:
    Free replacement of main body in 12 months from the date of purchasing if ther are quality problem.

    5.After-sale service:
    A. We supply spare parts timely all year around at factory cost.
    B. We afford technical solutions for buyers at any time.


   6. Co-operating customers' feedback:

    It has advanced design, convenient operation, high output, strong compatibility and high efficiency. The series products combine both refined traditional technology and scientific research, so that the products accord with marketing request and users' benefit. The products have been establishing a good reputation in China and around the world.

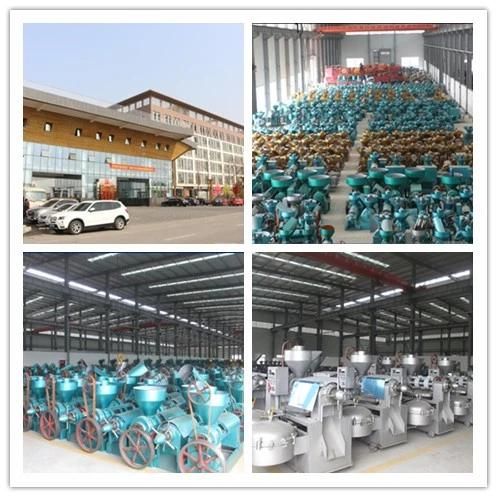

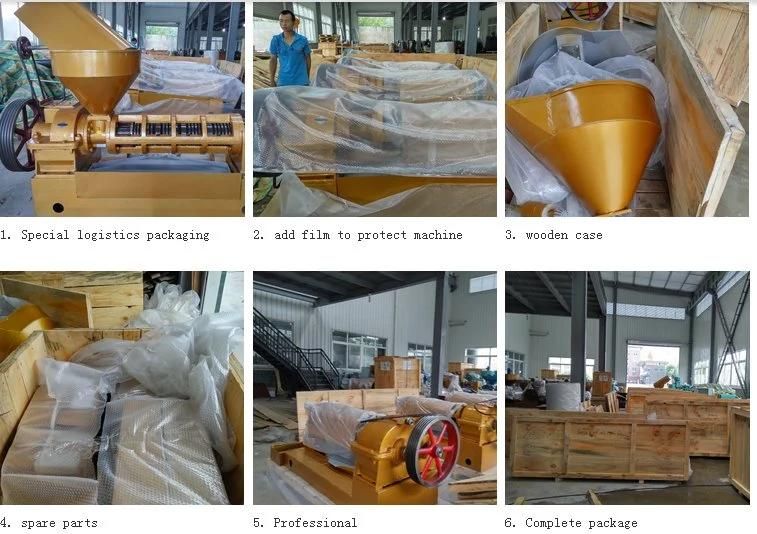

   7.  Our factory and package:

   3 Tpd Small Oil Extractor for Peanut Sesame Rapeseed etc3 Tpd Small Oil Extractor for Peanut Sesame Rapeseed etc
