Machinery FOR Food Beverage Cereal

Home > Product > Fruit & Vegetable Processing Machinery

China Shrimp Grader Prawn Separating Machine Grader

SHAOXING WALLEY FOOD MACHINERY CO., LTD.
  • Type：Sorter
  • Voltage：380V
  • Power：5.3kw
  • Customized：Customized
  • Capacity：1000-2000kg,H
  • Usage：Separating Shrimps

Base Info

  • Model NO.：XSJ
  • Material：Stainless Steel 304
  • Theory：Different Head Size
  • Transport Package：Steel Frame
  • Specification：6400x3800x2300mm
  • Trademark：Walley
  • Origin：Shaoxing City, Zhejiang Province, China
  • Production Capacity：30 Sets,Month

Description

Basic Info.

Model NO. XSJ Material Stainless Steel 304 Theory Different Head Size Transport Package Steel Frame Specification 6400x3800x2300mm Trademark Walley Origin Shaoxing City, Zhejiang Province, China Production Capacity 30 Sets/Month

Product Description

Introduction

XSJ shrimp grading machine adopts plastic steel belt which is anti-oil and anti-erode, also is easy to clean. This machine can grade shrimp into 5 classes, the size of each class can be adjustable; the complete machine is made of SUS304 except belt, motor and electricity elements. The machine is designed to operate easily and intuitively, the control is lumped and digital.

This machine is composed by soak elevator, second elevator and rotary grader and other matched spraying pipes, outlet conveyor and controller, etc.



Application

XSJ shrimp grading machine is suitable for shrimp, headless shrimp, shrimp meat and cooked shrimp, and other similar products.



Features

1. Adopt rotary drum with low friction, improve grading efficiency.
2. Equipped with conveyor belt for different size shrimp, application widely.
3. Twice hoist. Improve the evenness of distribution, enhance accuracy rating.
4. Double cleaning equipment in hoist place and enter place, enhance cleaning effect.

5. Use Mico-computer control system, improve the grading efficiency.
6. Stainless steel with good quality.



Models

6 rollers: overall dimension:6400*2400*2300mm

                  power:5.3kw

                  capacity:600kg/h

12 rollers: overall dimension:6400*3800*2300mm

                  power:5.3kw

                  capacity:1200kg/h

18 rollers:  overall dimension:6500*4800*2400mm

                   power:6.3kw

                   capacity:1700kg/h


Detailed Photos:

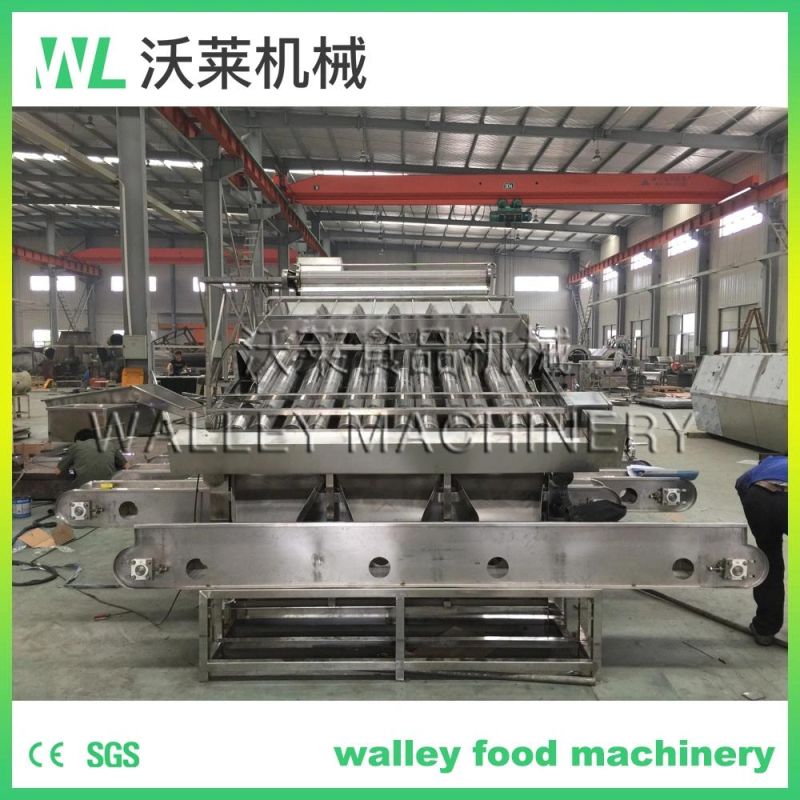

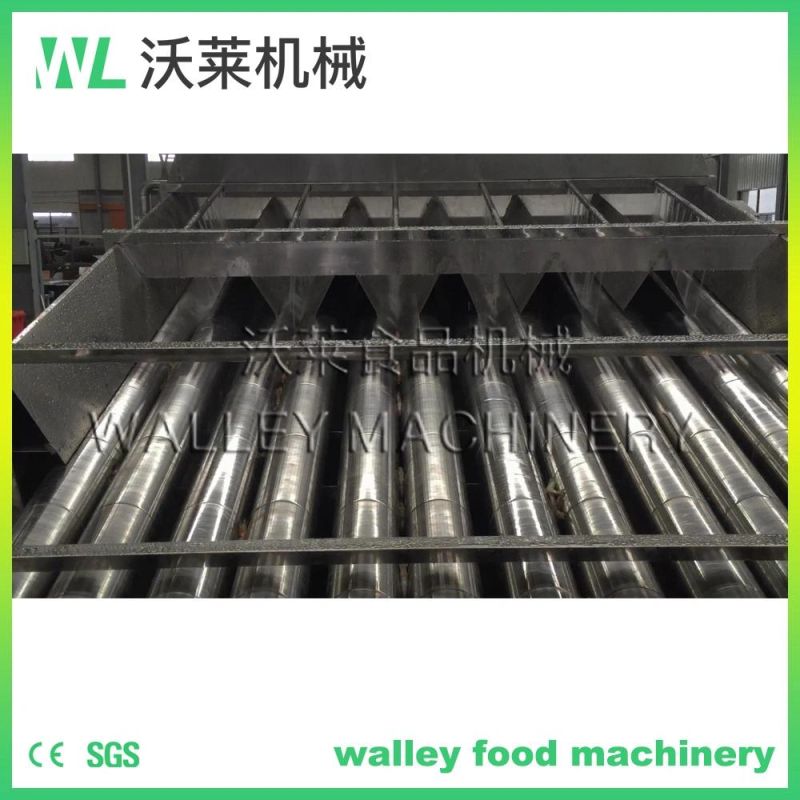

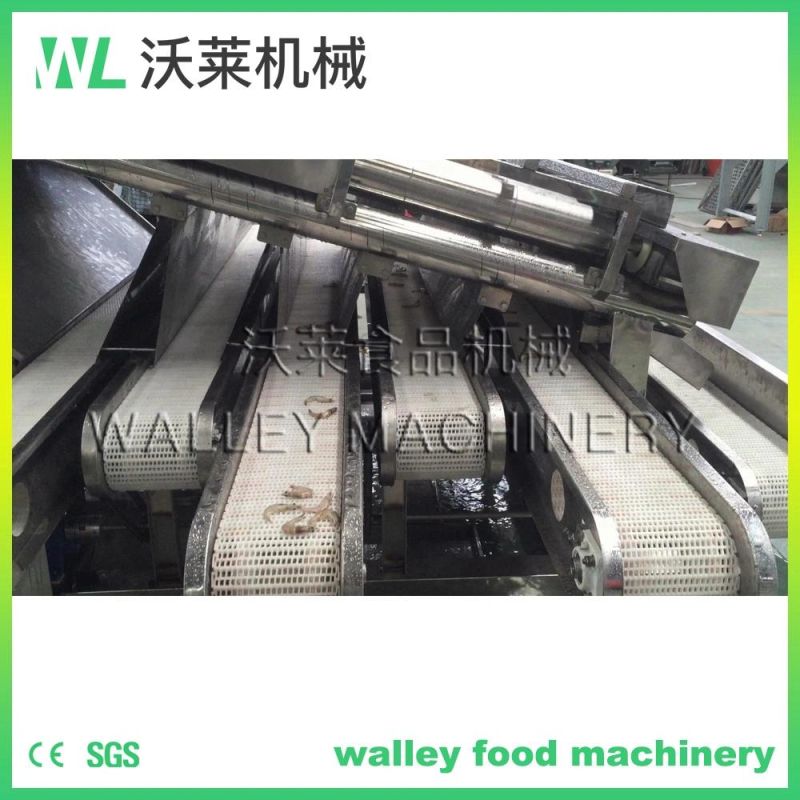

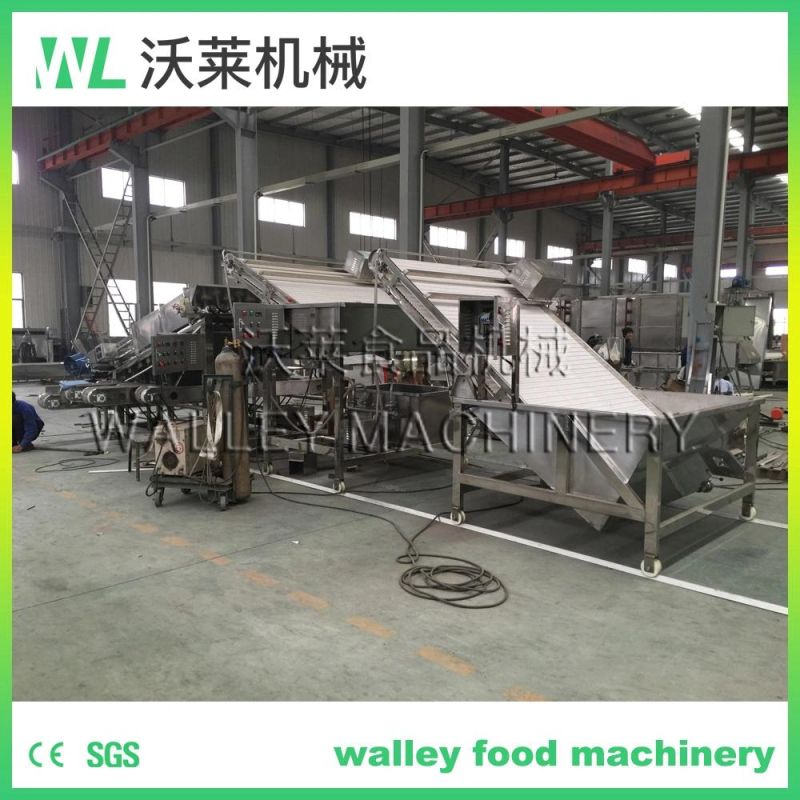

China Shrimp Grader Prawn Separating Machine Grader
China Shrimp Grader Prawn Separating Machine Grader
China Shrimp Grader Prawn Separating Machine Grader
China Shrimp Grader Prawn Separating Machine Grader
China Shrimp Grader Prawn Separating Machine Grader






Our Customers:

China Shrimp Grader Prawn Separating Machine Grader
  Welcome to send inquiry,thank you very much in advance!
