Competitive Price Pectin Gummy Bear Soft Candy Making Machine
Shanghai Target Industry Co., Ltd.- Warranty：One Year
- Certification：CE, ISO9001
- Power Source：Electric
- Automatic Grade：Automatic
- Application：Candy
- Customized：Customized
Base Info
- Model NO.：GDQ
- Voltage：380V
- Power：8kw
- Brand Name：Tgmachine
- Package：Wooden Case
- Transport Package：Wooden Case
- Trademark：TGMACHINE
- Origin：Shanghai China
- HS Code：84382000
Description

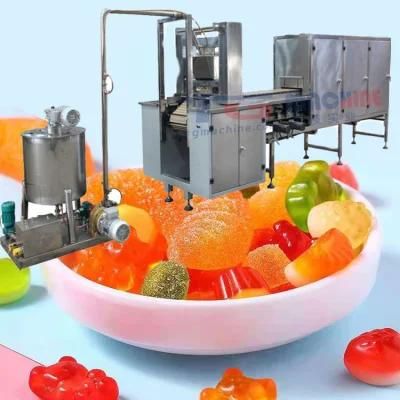

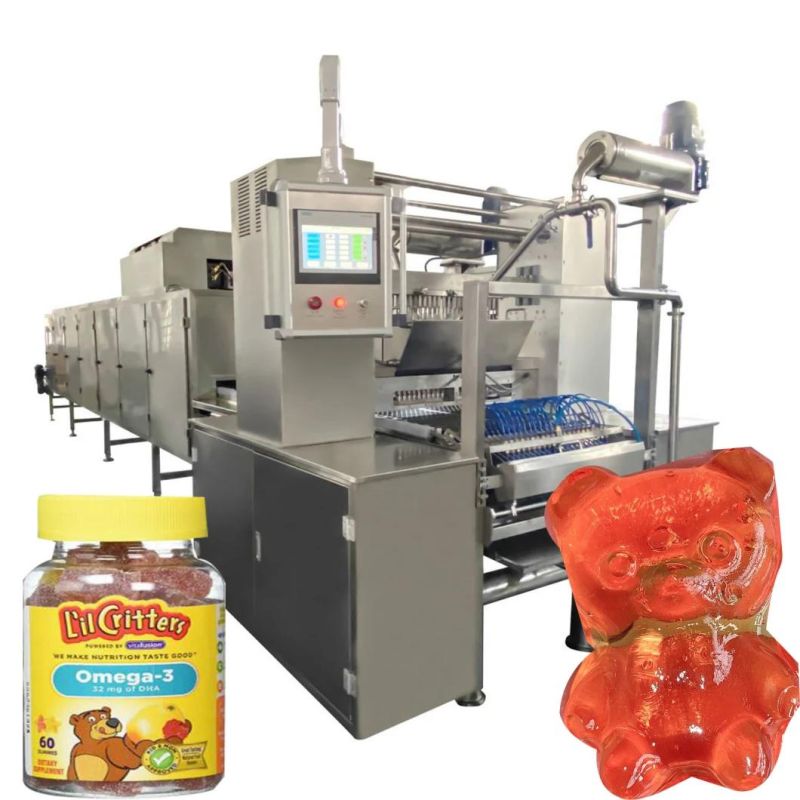

The GD300Q processing line is an advanced and continuous plant for making differentsizesof gelatin type soft candies(QQ candies) . It is an ideal equipment which can produceout good quality products with the
saving of both the manpower and the space occupied.With the sanitary structure design, on one hand it
can produceone or two colors candy; on the other hand, it can automatically blend theessence pigment and
fermenting liquid in accurate quantity ratio.
TECHNICAL SPECIFICATIONS:
Model | GD150Q | GD300Q | GD450Q |
Production capacity ( kg/h) | 150 | 300 | 450 |
Rated depositing times(n/min) | 20~25 | 20~25 | 20~25 |
Weight of each candies(g): 1. two colors 2. single color | 2g~.6g 1.5g~6g | 2g~6g 1.5g~6g | 2g~6g 1.5g~6g |
Electric power needed | 8kw/380V | 12kw/380V | 16kw/380V |
Refrigerator | MT160 x1 15,000kcal/h 10.5kw | MT160x2 30,000kcal/h 21kw | MT160x2 30,000kcal/h 21kw |
Compressed air consumption Compressed air pressure | 0.20m ³ /min 0.4-0.6 Mpa | 0.25m ³ /min 0.4-0.6 Mpa | 0.25m ³ /min 0.4-0.6 Mpa |
Conditions needed for the cooling system: 1.Room temperature(ºC) 2.Humidity (%) | 20~25 55 | 20~25 55 | 20~25 55 |
Conditions needed for the cooling system: 1.Room temperature(ºC) 2.Humidity (%) | 20~25 55 | 20~25 55 | 20~25 55 |
Length of the whole line (m) | 9m | 11m | 15m |
Gross weight ( Kgs) | Approx.3000 | Approx.4000 | Approx.5000 |
FLOW CHART:
Sugar and gelatin dissolving→ mixing→ cooling→ transporting→ depositing → cooling → de-moulding →following disposalà packing
MAIN EQUIPMENT LIST:
The whole line is comprised of following equipment
MODEL: GD150Q
ITEM NO. | EQUIPMENT | SPECIFICATION | UNIT | QTY |
1 | Fixed COOKER | 200 L | PCS | 2 |
2 | GEAR PUMP 1'' | PCS | 1 | |
3 | COOLING TANK | 300L | SET | 1 |
4 | TRANSPORTING PUMP | SET | 1 | |
5 | COLOR AND FLAVOR MIXING SYSTEM | 200L | PCS | 2 |
6 | JELLY CANY DEPOSITOR | 300KGS/H | PCS | 1 |
7 | COOLING TUNNEL | SET | 1 | |
8 | MOULD | GDQ300:520pcs | SET | 1 |
9 | ELECTRICAL CABINET | SET | 1 | |
10 | DRYING ROOM SYSTEM | 72Kw | Set | 1 |
11 | Turnover tray | 600x 600 x 30mm | Pcs | 800 |
12 | Turnover Cart | 700x700x1800mm | set | 16 |
13 | Oil sprayer | 1800x1250x1800mm | set | 1 |
14 | Sugar coater | 3800x1250x1800mm | set | 1 |
COMPANY INFORMATION:
Shanghai Target Industry Co., Ltd is the sales and service company for Shanghai SHINWEI Machinery
Manufacturing Co., Ltd which is the first manufacturer to build the complete production line for
depositing hard candies in China and has accumulated 40 years' fabrication experience. It is also
one of the leading and professional exporters in China by providing customers home and abroad
with high quality confectionery, chocolate, biscuit and packaging machinery. Our machineries have
been exported to East European, south America, middle east, southeast Asia.
Strength
Why choose us?
a.Established in 1982, nearly 20-year experiences in the area of machinery manufacturing of food processing;
b.Cooperate with well-known enterprises for some mechanical parts;
c.Adopt environment-friendly and food-grade materials;
d.Offer customized machineries and give suggestion for plant layout.
Service:
After-sale services for all the customers
a. Free training of machine installation, operation and maintenance will be provided;
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.
