• Model NO.：HLY-306
• Voltage：220V
• Customized：Non-Customized
• Dimension(L*W*H)：1395*965*1720 mm
• Power：225 W
• Material：0.8 mm Stainless Steel 430,
• Inside Material：Aluminum Plated
• Tray Size：400*600 mm,460*720mm
• Temperature Range：20-350 Degree Celsius
• Gas Consumption：3.12 L,H
• Weight：360 Kg
• Transport Package：Wooden Crate
• Specification：6 trays
• Trademark：Hongling
• Origin：Guangzhou, China
• HS Code：8417200000
• Production Capacity：N

Basic Info.

Model NO. HLY-306 Voltage 220V Customized Non-Customized Dimension(L*W*H) 1395*965*1720 mm Power 225 W Material 0.8 mm Stainless Steel 430, Inside Material Aluminum Plated Tray Size 400*600 mm/460*720mm Temperature Range 20-350 Degree Celsius Gas Consumption 3.12 L/H Weight 360 Kg Transport Package Wooden Crate Specification 6 trays Trademark Hongling Origin Guangzhou, China HS Code 8417200000 Production Capacity N

Product Description

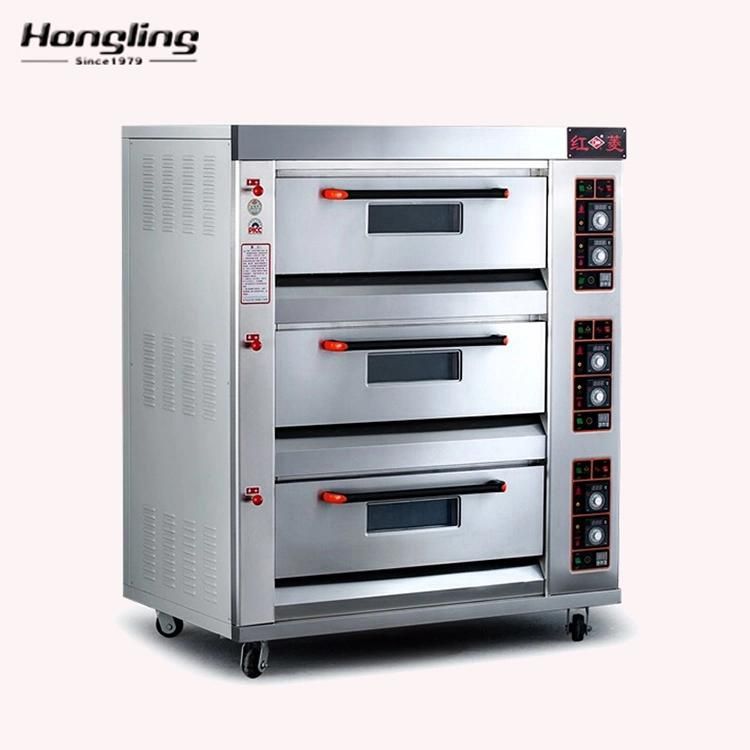

Baking Machine LPG/LNG Gas Bread Oven Price in Nepal
Introduction
1. Overheat protection digital display thermostat.
2. Automatic flame extinguishing safety valves, in case of failure igniting.
3. The front is #430 stainless steel, internal chamber made by aluminized steel, outside iron      printed.
4. With timers.
5. Gas Burning Pipe warranty 6 years.

Feature

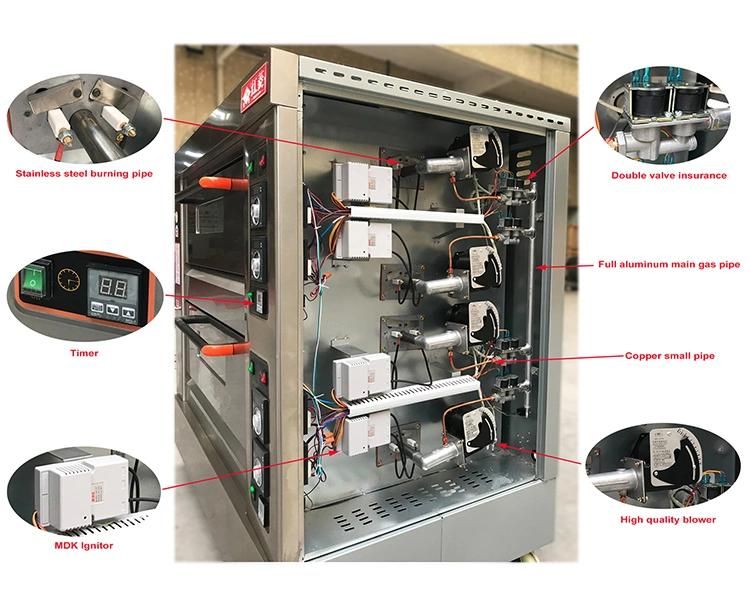

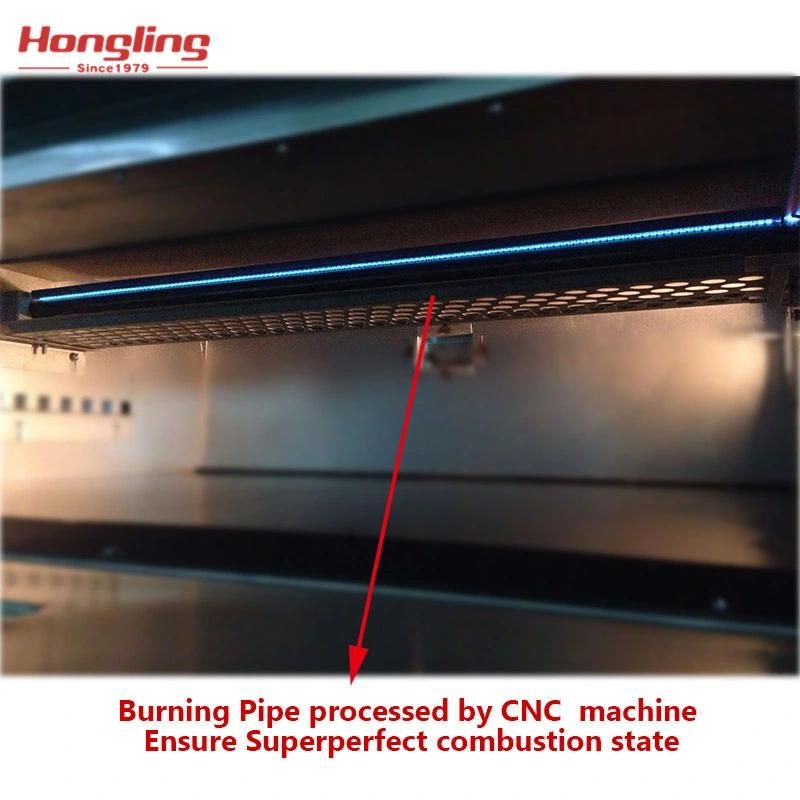

1.The burning pipe we using stainless #304, using fully automatic high precision drilling machine tool , more durable and stable.
2. The chamber bottom is 2mm plate, other three size is 0.8 mm aluminum printing plate, more heat radiation in the chamber( Most of other products using the "Electro-Galvanized Steel" or just the iron)
3.The inside Gas small pipe using the copper material, the bigger pipe using the full aluminum pipe, ensure the safety of the user.
4. The timer and temperature control will be much stable.
5. Front appearance material is Stainless steel, enough thick 0.8mm.

Technical Paremeter

Model	Capacity	Power	Voltage	Dimension (mm)	Output (kg/h)	Weight (KG)
HLY-101E	1 deck 1 tray	75 W	220V/50Hz	1080*680*650	12-28	100
HLY-102E	1 deck 2 trays	75 W	220V/50Hz	1395*965*710	28-57	180
HLY-206E	2 deck 6 trays	150 W	220V/50Hz	1750*965*1375	57-114	290
HLY-306E	3 deck 6 trays	225 W	220V/50Hz	1395*965*1720	85-160	360
HLY-309E	3 deck 9 trays	225 W	220V/50Hz	1750*965*1720	126-256	740
HLY-102	1 deck 2 trays	75 W	220V/50Hz	1330*925*710	28-57	150
HLY-204	2 deck 4 trays	150 W	220V/50Hz	1330*925*1395	57-114	315
HLY-306	3 deck 6 trays	225 W	220V/50Hz	1330*925*1720	85-160	470
HLY-309	3 deck 9 trays	225 W	220V/50Hz	1750*925*1720	126-256	690
HLY-101DB	1 deck 1 tray	75 W	220V/50Hz	1045*850*600	15-25	100
HLY-202DB	2 deck 2 trays	150 W	220V/50Hz	1045*850*1040	28-57	210
HLY-102DB	1 deck 2 trays	75 W	220V/50Hz	1340*960*740	28-57	150
HLY-204DB	2 deck 4 trays	150 W	220V/50Hz	1340*960*1440	57-114	320
HLY-306DB	3 deck 6 trays	225 W	220V/50Hz	1340*960*1720	85-160	470

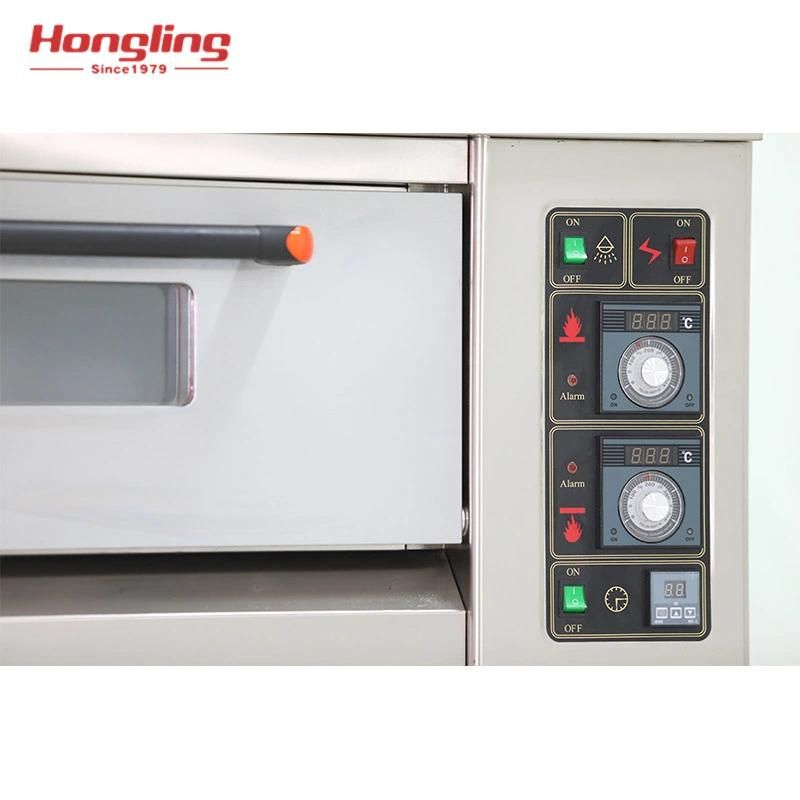

Oven Details

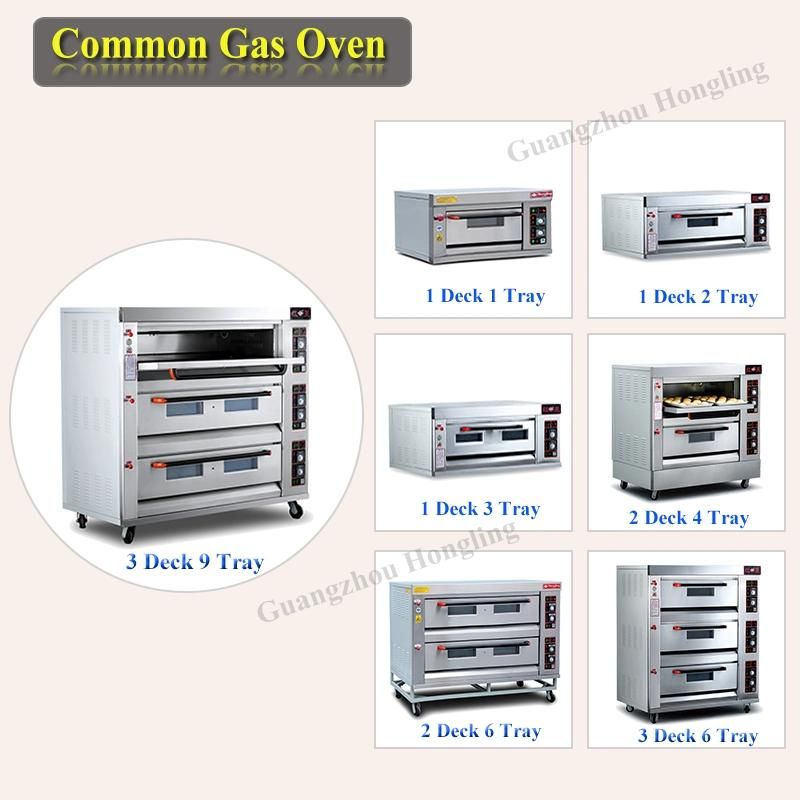

Other sizes oven

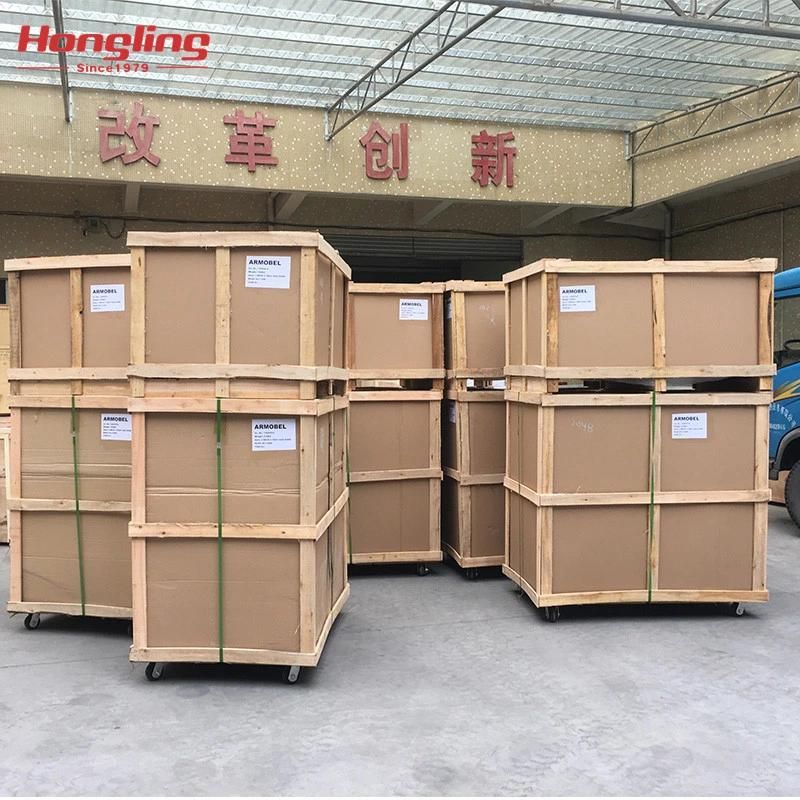

Oven Packing
Packing materials: wooden crate
Packing size:1500*1000*1720mm

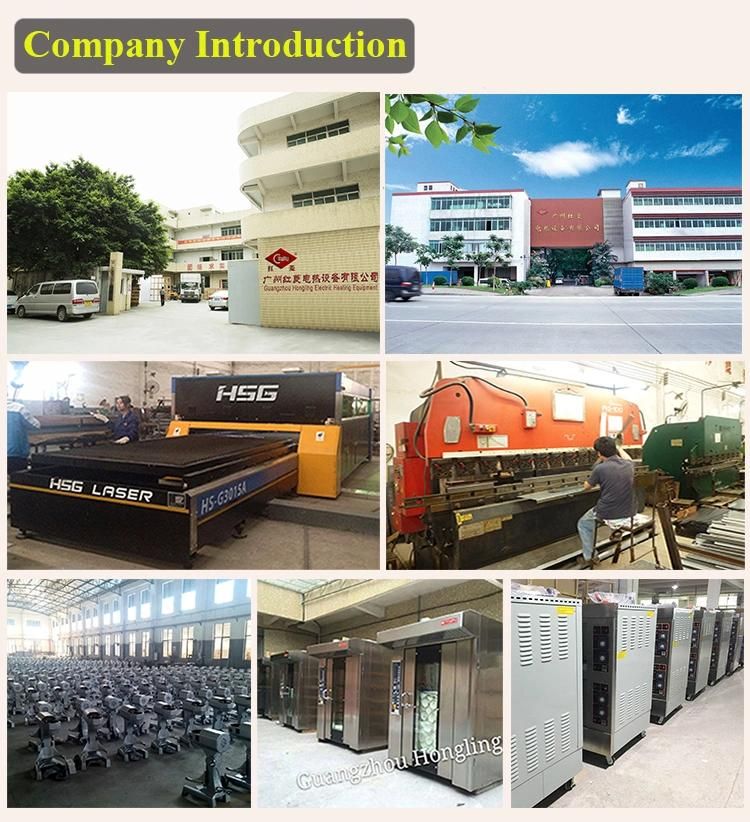

 About Hongling

Guangzhou Hongling Electric Heating Equipment Co., Ltd, established in 1979,has more than 41 years experiences of manufacturing which integrates R&G, design, production, sales and service together. We adhere to the "high efficiency, high quality, high reputation" business philosophy. Hongling is committed to creating an international brand with forward-looking strategic thinking. Nowadays, as one of the major suppliers of baking equipment, Hongling has successfully entered the global baking equipment market, hoping to become the industry leader through our constant effort and input.
