• Transport Package：Plastic Film, Plywood Case; Container;
• Guarantee：3 Years for Tank
• Polish Finish：0.4-0.6um
• Insulation：Polyurethane Foam
• Voltage：380V,220V
• Brewhouse Heating：Steam Jacket,Electric Tube,Direct Fire
• Electric Elements：up to Ce UL Standard
• Material Thickness：Inner Wallet 3mm outer Wallet 2mm
• Technology：Offer Auto CAD and 3D Design Drawing
• After Sales Service：Installation and Equipment Commission
• Welding：Arc Argon Protection
• Material：Full Stainless Steel SUS304
• Model NO.：MT-500L
• Condition：New
• Specification：Customized
• Trademark：METO
• Origin：Jinan China
• HS Code：84384000
• Production Capacity：10 Set,Sets Per Month Stainless Steel Brewhouse

2 Vessel Brewhouse 3 Vessel Brewhouse

Mash/Lauter tun+Brew kettle/whirlpool tank

1.Lauter&storage tank+brew kettle/whirlpool tank

2.Lauter&whirlpool tank ,+brew kettle

3.Lauter&HLT +brewkettle/whirlpool tank

Combined 3 Vessel Brewhouse 4 Vessel Brewhouse1.Mash/lauter tun+ brew kettle +whirlpool tank

2.Mash tun+ lauter tank + brewkettle/whirlpool tank

 Mash tun +lauter tank + brew kettle+whirlpool tank

 UNitComponentsCapacity Specification Milling Miller 200KG/HDouble Roller,Noise<60dbBrewhouse Mash/Lauter tun500LMashing Process:Decoction.Infusion.Multi-step infusion   Brew Kettle/Whirlpool Tank 500L
Heating source:Steam,Electric,direct fire

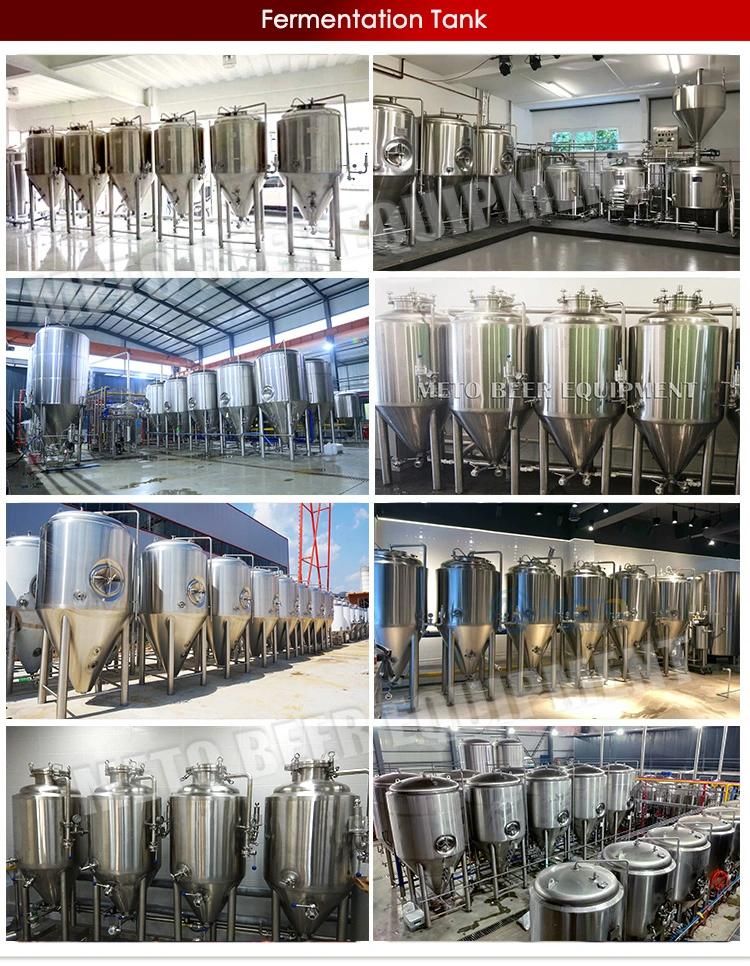

SUS304/Red copper  Hot Water Tank  800L Heating source:Steam,Electric,Gas  Heat exchanger 5 SQM Stainless steel plate Fermentation tank  Fermentation Tank
(The number according to customer requirements) 500L or 1000L Top manway/Side manway
Drying hop port to brew IPA
Dimple Plate Cooling jacket
Carbonation port to fill CO2 Yeast Adding Tank5-10 L SUS304 Stainless Steel Cooling System   Glycol Water tank 1500L Equiped with PU level indicator Chiller  5Hp UL/CE certified electric elements,Copeland compressorPump3T/H Cleaning SystemDisinfection Tank50-100LSUS304 full weldedAlkali Tank50-100LPump3T/HControl System Control Cabinet PID or PLC Optional

Auger System
Grain Case
Grist Hydrator
Piping flow panel for Brewhouse
Brewhouse Separate PLC Controller
Steam Boiler Customized
...

Packaging Details

1.LCL/FCL(20GP/40GP/40HQ).
2.Packed with plastic film in fumigation free wooden case or fixed with iron frame.
3.Up to export standard, suitable for delivery.
4.Customer's requirements available.



1. Free consultation service before, during, and after sales Layout plan in 3D or CAD drawings of your brewery;

2. Professional engineers going abroad for the installation ,debugging, and training, all the travelling cost and locate food, and hotel shall be afforded by the buyer

3. The installation period is about 15 days including assembling brewing tanks and training the operator.  It is free of charge within 15 days. The buyer will be charged USD 50 per day for each engineer for the extended installation.

4. Round the clock assistance via phone, e-mail, Skype, Whatsapp, MSN, or any other communication method available to the customer.

5. Assisting purchased Facilities by seller including bottling system, steam boiler, water treatment, etc. should be installed separately. If needed, cost calculate additionally.

6. Brewing technology, brewing formula, can be offered available

7. More spare parts are available to offered freely.
