• Packing Machine：Automatic Weighing and Packing Machine
• IQF Tunnel Quick Freezer Machine：Inside -40 C′ Compressor From Europe.
• Heating Mode of Blanching Machine：Electricity, Gas, Diesel,Steam.
• Heating Mode of Frying Machine：Electricity, Gas, Diesel,
• Banana Slice Line Capacity：50kg. 100kg, 200kg and 300kg
• Frozen French Fries Line Capacity：100kg, 200kg, 300kg, 500kg, 1000kg 2000kg
• Potato Chips Line Capacity：50kg. 100kg, 200kg and 300kg
• Accessory：Oil Tank and Extra Oil
• Material：304 Stainless Steel
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Model NO.：TUNE-C100
• Transport Package：Whole Container Transportation
• Specification：Customized
• Trademark：TUNE
• Origin：China
• HS Code：8438600000
• Production Capacity：50set,Month

No.Machine nameApplication1HoistIt is used to preclean potato,
soften the potato skin, then hoist potatoes into washing and peeling machine.2Washing and peeling machineThis machine is used to peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely3Inspecting tableThis machine is used to pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system.4Potato cutter
 This machine is used to cut potato into sticks, french fries quality depends on fries length and shape, so cutting machine is very important5HoistIt is used to translate the finish cutter potatoes, then hoist potatoes into miscellaneous machine.6miscellaneous machine
 This machine is used for impurity removal, to remove the fringes of the french fries, and then clean the equipment into the next step.7Rinsing line machine
 This machine used to washing potato starch and protect potato from oxidation, keep its original color
 8Blanching line machine
 This machine is used to deactivate the activity of the oxidase, take off the starch, separate out the redusing sugar, also after blaching,it will get inner soft taste of french fries.9Air-dryer machine
 Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.10Hoist It is used to translate the finish Air-dryer potatoes, then hoist potatoes into Vibration dehydrator.11Vibration dehydrator
 Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.12Continuous frying line machineThis machine is used to unified fry sticks in short time.13Vibrating oil off machineThis machine is used to de-oil with the vibrating14Dried degreasing machineUse fan to blow off the water on stick surface, then deliver sticks into the freezer.15HoistIt is used to between Dried degreasing machine and freezing machine16Quick freezing machine
 It is used to quick freezing the french fries in short time, fries center temperature at -18 ºC, Can the maximum keep the original flavor and product quality17Automatic packaging machineIt is used to pack the french fries automatically.

Potato Chips Production process:
 No.Machine nameApplication1HoistIt is used to preclean potato,
soften the potato skin, then hoist potatoes into washing and peeling machine.2Washing and peeling machineThis machine is used to peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely3Inspecting tableThis machine is used to pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system.4Potato chips cutter
 This machine is used to cut potato into chips, potato chips quality depends on fries length and shape, so cutting machine is very important5HoistIt is used to translate the finish cutter potatoes, then hoist potatoes into miscellaneous machine.6miscellaneous machine
 This machine is used for impurity removal, to remove the fringes of the french fries, and then clean the equipment into the next step.7Rinsing line machine
 This machine used to washing potato starch and protect potato from oxidation, keep its original color
 8Blanching line machine
 This machine is used to deactivate the activity of the oxidase, take off the starch, separate out the redusing sugar, also after blaching,it will get inner soft taste of french fries.9Air-dryer machine
 Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.10Hoist It is used to translate the finish Air-dryer potatoes, then hoist potatoes into Vibration dehydrator.11Vibration dehydrator
 Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.12Continuous frying line machineThis machine is used to unified fry sticks in short time.13Vibrating oil off machineThis machine is used to de-oil with the vibrating14Dried degreasing machineUse fan to blow off the water on stick surface, then deliver sticks into the freezer.15HoistIt is used to between Dried degreasing machine and Roller seasoning mixer16Roller seasoning mixerThis machine is used to add seasoning to potato chips17Automatic packaging machineIt is used to pack the potato chips automatically.
 Banana Slice Production process:No.Machine nameApplication1Banana chips cutterThis machine is used to cut Banana into chips2Hoister It is used to translate the finish Air-dryer Banana, then hoist potatoes into fryer3Continuous frying line machineIt is used to deep frying the Banana chips , then hoist Banana into Vibration de-oil machine. include Oil filter and Oil circulation tank. 4Vibration de-oil machineUsed to De-oil the Banana chips on stick surface, then deliver sticks into the drying line. 5Air cooling dehydratorUse fan to blow cooling on stick surface, then deliver sticks into the seasoning mixer 6Hoister  It is used to between air cooling machine and seasoning mixer 7Roller seasoning mixerThis machine is used to add seasoning to Banana  chips.8Automatic weighing and packing  machineIt is used to pack the Banana chips automatically.

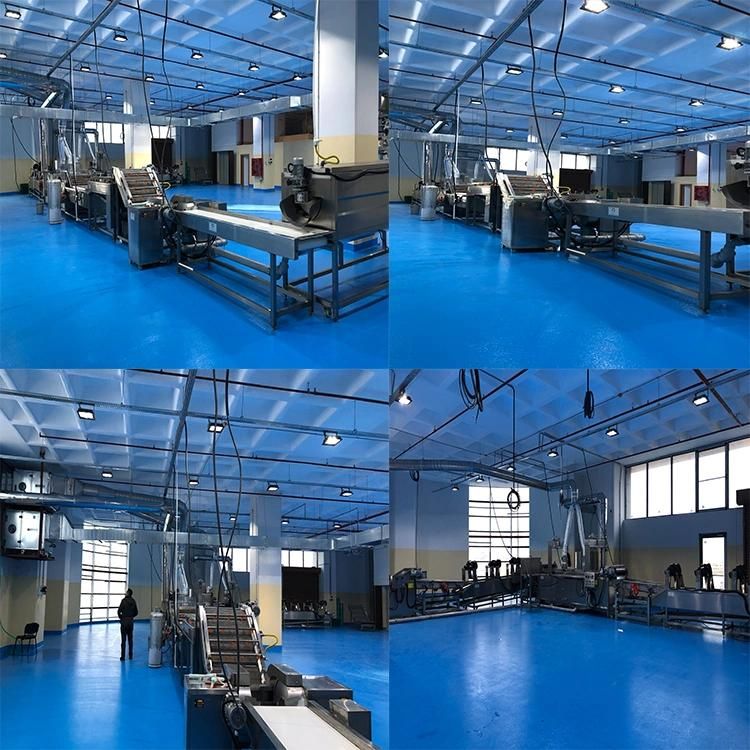

Customer Factory Installation



Packing and shipping
