• HS Code：8438500000
• Origin：China
• Trademark：Kgentlest
• Specification：2000mm*1050mm*1900mm
• Transport Package：Wood Safety Packing
• Production Capacity：5000 PCS Per Year

Basic Info.

Transport Package Wood Safety Packing Specification 2000mm*1050mm*1900mm Trademark Kgentlest Origin China HS Code 8438500000 Production Capacity 5000 PCS Per Year

Product Description

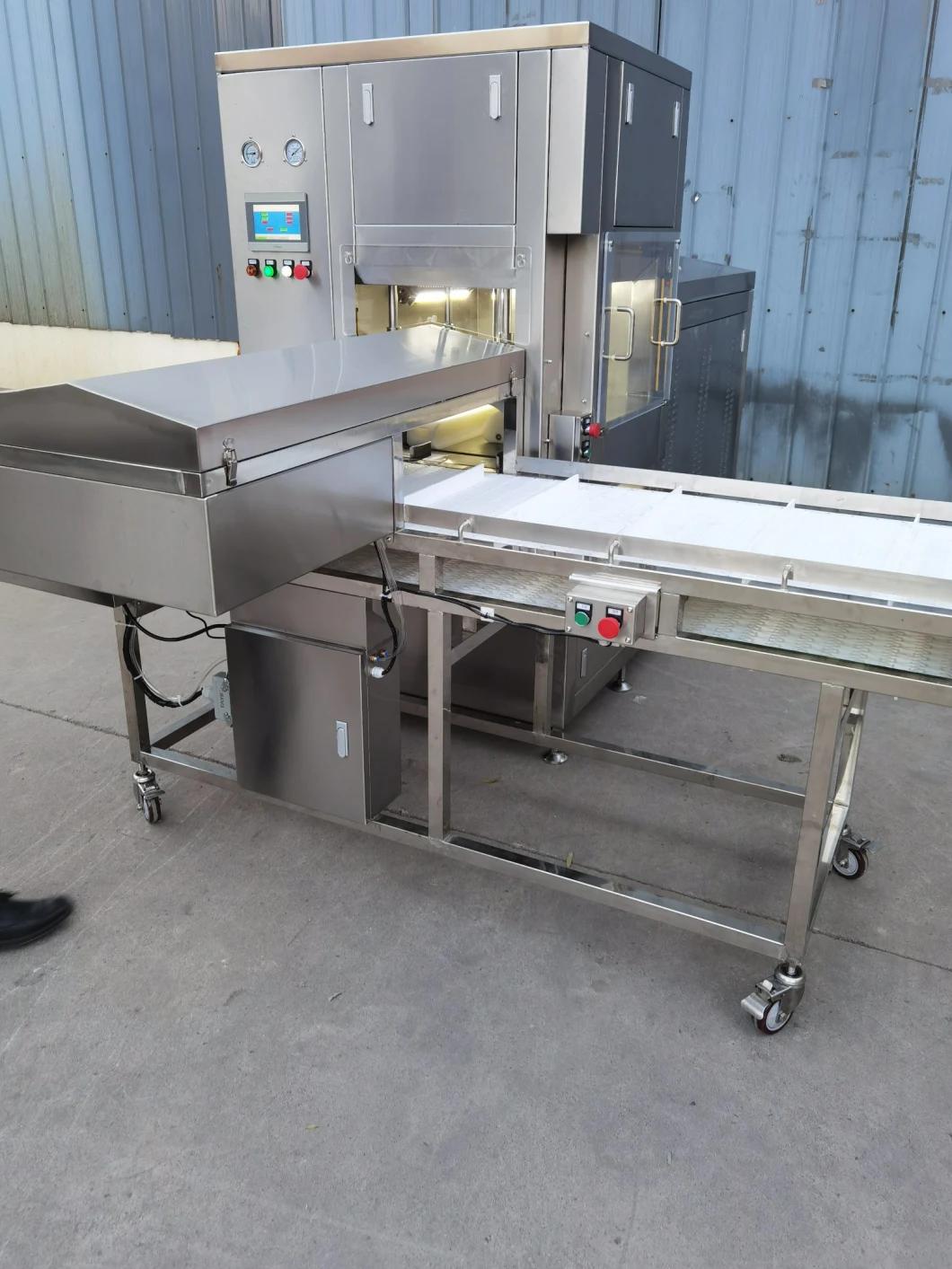

3D Frozen meat shaping machine

automatic 3D plastic machine, 3D plastic production line, specially designed for hemp frozen meat, chilled meat, pickled and prepared meat tight pressure plastic.
After quick-freezing, irregular shaped meat products are processed by high-pressure molding in the upper, side and back of the mold of the equipment, and technological parameters are selected according to different meat products to make the reshaped meat products with uniform fiber and neat surface. The meat products can be sliced with zero loss.

Technical parameters:
Power supply: 3x380V +N+PE/ 50Hz Control voltage: 24V
Installed power: 7 kw power supply: hydraulic + compressed air
Shaping power: hydraulic manipulator power: compressed air
Maximum mold cavity specification: 600*250*120 Equipment plate thickness: 8-25mm
Shaping external size: 2000*1050*1910 Conveyor size: 2500*700*900
Maximum pressure of hydraulic station: 25Mpa Working pressure: 5-14mpa adjustable
Compressed air pressure: 0.8mpa Compressed air consumption: 30m /h
Work efficiency: 5-6 PCS/min
