• Specification：CE SGS
• Transport Package：wood
• Twister Pipe：10-22mm Diameter
• Touch Screen：Taiwan Delta
• Electric Parts：ABB
• PLC ,Motor：Japan Yasakaw
• Weight：630 Kg
• Hopper Volume：240 L
• Quantitative Deviation：+-2 G
• Stuffing and Twisting Speed：0-600 Times,Min
• Power：6.09 Kw
• Quantitative Range：6-9999 G
• Model NO.：ZKG-3500
• Trademark：YC
• Origin：Hebei
• HS Code：85385000
• Production Capacity：1200 Sets Per Year

Basic Info.

Model NO. ZKG-3500 Quantitative Range 6-9999 G Power 6.09 Kw Stuffing and Twisting Speed 0-600 Times/Min Quantitative Deviation +-2 G Hopper Volume 240 L Weight 630 Kg PLC ,Motor Japan Yasakaw Electric Parts ABB Touch Screen Taiwan Delta Twister Pipe 10-22mm Diameter Transport Package wood Specification CE SGS Trademark YC Origin Hebei HS Code 85385000 Production Capacity 1200 Sets Per Year

Product Description

sausage Making Machine- Sausage Filler-sausage stuffer



Sausage Making Machine Sausage Stuffer / Filler using for sausage and other meat products filling:

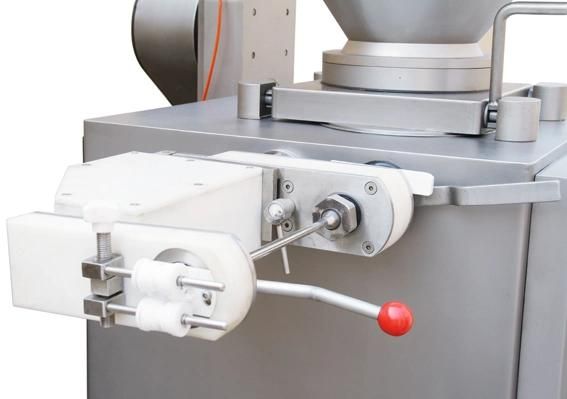

1. Equipped with automatic casing knot tying device.
2. Suits straight-filling artificial, collagen, cellulose or linking natural casings.
3. High weight accuracy, effective production output.
4. Systematically with the clipper of various types, enjoy the benefit of automation
     production for your business.
5. Easy to clean using standard cleaning equipment. Removable covers on two sides of the
    machine make the inside of the machine easily accessible for any maintenance work.
6. Maintenance work is automatically displayed on screen as it falls due.



The main parts using imported :Japan YASKAWA servo motor and Italy BONFIGILION (German)

 decelerator as its drive system, also featuring its man-machine interface from Taiwan, Japan
 Mitsubishi PLC and Germany Busch vacuum pump and ABB waterproof button,
 all material for machine is SUS 304 with 2mm thickness.

sausage making machine sausage filler Series is always your first choice for continuous filling tasks.
 Most reliable vacuum sausage stuffer with rotary vane pumps appropriate for any-
sized plants. Combine the Vacuum StufferZKG + Mech. Greatwall Double Clipper
JCSK-A allows them to be perfect partner rapidly adapted to a wide variety of tasks
in a sausage production plant.




The favourable inclination of the hopper walls facilitates day-to-day work, as the
Lifter unit pumps the hopper completely empty apart from minimal residues. For
automatic feeding, the ZKG series can be optional fitted with a lifting and tipping
device which the operator controls using the relevant keys next to the portioning
computer.

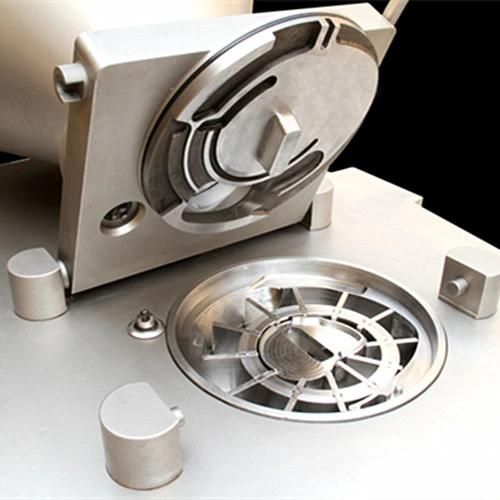

     Maintenance work is automatically displayed on screen as it falls due. Vacuum Stuffer ZKG is built with a combination of Japan YASKAWA servo motor and Italy BONFIGILION (German) decelerator as its drive system, also featuring its man-machine interface from Taiwan, Japan Mitsubishi PLC and Germany Busch vacuum pump. Key parts produced by machine center with high precision. All of pump, impeller and blade have are adopted the special heat treatment technique, highly smooth surface, easily to be cleaned up.


odel	Quantitative Range (g)	Power (KW )	Stuffing and Kinking Speed (Times/Min.)	Quantitative Deviation (minced meat) (g)	Hopper Volume (L)	Rated Voltage (v)	Weight (Kg)	Dimensions (mm)
ZKG-1800	6-9999	3.45		±1	125	380	425	930×810×1680
ZKG-2200	6-9999	4.85	0-600	±1	125	380	450	1260×810×1680
ZKG-2500	6-9999	5.05	0-600	±2	160	380	590	1350×860×1710
ZKG-3500	6-9999	6.09	0-600	±2	240	380	630	2450×1180×1800
ZKG-4500	6-9999	6.09	0-600	±2	240	380	750	2450×1180×1800
ZKG-7500	6-9999	7.59	0-600	±2	240	380	830	2450×1180×1800

                                                          Sausage Making Machine Chart

YuanChang Food Mechanism & Technology Co. Ltd
      Our Company was established in 1986 with a group of excellent technicians and qualified
professionals, a leading manufacturer of meat processing machine in China.We specialized in
producing various kinds of meat sausage processing machines with advance technology, high
quality, durable use and excellent precision.
Our product including:
1. Quantitative Vacuum Sausage Stuffer filler,
2. Automatic Sausages Double clipper,
3. Vacuum Bowl, Cutter Chopper,
4. Vacuum Meat Mixer,
5. Fumigating Smoking oven Smokehouse,
6. Rolling & kneading Machine/Vacuum tumbler,
7. Brine Saline injector,
8. Frozen-Meat Grinder Mincer,
9. Frozen meat loaf and Slice cutter Machine,
10. Meat Tenderizer Machine,
11. Lifter/Elevator,
12. Hopper Trolley etc.

2.OUR COMPANY :We produce meat machines 30 years,boss is an professional enginner ,we have customers  using our whole line machines in DUBAI and other countrys.
