Professional Manufacture Vegetable Fruit Agricultural Product Heat Pump Dryer

Guangzhou Kaineng Electric Equipment Co., Ltd.
  • Dryer Type：Heat Pump Dryer+Drying Chamber
  • Customized：Customized
  • Power：4.8kw
  • Voltage：380V
  • Type：Dryer
  • Drying Type：Hot Air Circulating

Base Info

  • Transport Package：Plywood
  • Patent Technology：Second Waste Heat Recovery Technology
  • Control：Touch Screen Control
  • Dehumidify Amount：12~100 L,H
  • Cooling Capacity：7.5~25kw
  • Heating Capacity：12~35kw
  • Drying Capacity：200 to 2500 Kg Per Batch
  • Drying Temperature：10~75c
  • Heat Energy：25% Electricity+75% Air Source (Free)
  • Model NO.：JK03RD, JK06RD, JK12RD
  • Specification：1675x860x1280mm
  • Trademark：KINKAI
  • Origin：China
  • Production Capacity：3000 Sets, Year

Description

Power SupplyV/PH/HZ380V/3PH, 50/60HZ380V/3PH, 50/60HZ220V/1PH, 50/60HZRated CurrentA9.6A(380V), 22A(220V)1730Heating CapacityKW10.52142Cooling CapacityKW7.81832DehumidifyL/H122550Max. TemperatureºC≤75≤75≤75Working ConditionºC0-430-430-43Electric Shock Protection GradeIIIMax. Exhause PressureMpa333NoisedB(A)757575Power Consumption/ HKWH4.88.515Electric HeaterKW3612Blowing Type/Horizontal Blowing 360ºCDimension Of DryerMM1675x860x12801760x1060x12802120x1360x1590WeightKG295385540 Power SupplyV/PH/HZ380V/3PH, 50/60HZ380V/3PH, 50/60HZ220V/1PH, 50/60HZRated CurrentA19.2A(380V), 44A(220V)3460Heating CapacityKW214284Cooling CapacityKW15.63664DehumidifyL/H2450100Max. TemperatureºC≤75≤75≤75Working ConditionºC0-430-430-43Electric Shock Protection GradeIIIMax. Exhause PressureMpa333NoisedB(A)≤75≤75≤75Power Consumption/ HKWH9.61730Electric HeaterKW61224Blowing Type/Horizontal Blowing 360ºCDimension Of DryerMM1675x860x12801760x1060x12802120x1360x1590WeightKG295x2385x2540x2Professional Manufacture Vegetable Fruit Agricultural Product Heat Pump Dryer

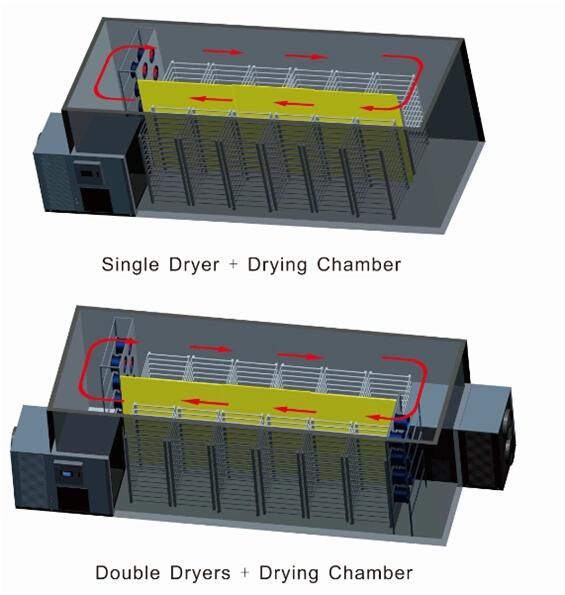

Recommend Dryer+Drying Chamber SizesItemDescriptionProduct CapacityDrying Chamber size1One unit JK03RD dryer + drying chamber300Kg / batch4000*2000*2200mm2One unit JK06RD dryer + drying chamber600Kg / batch6000*2800*2200mm3One unit JK12RD dryer + drying chamber1000Kg / batch6000*3000*2200mm4Two units JK03RD dryers + drying chamber1200Kg / batch7000*2200*2200mm5Two units JK06RD dryers + drying chamber1500Kg / batch10000*2800*2200mm6Two units JK12RD dryers + drying chamber2500Kg / batch10000*3000*2200mmWarm prompt: We can make any drying chamber sizes as your required.

Our Service
A. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.

B. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
