• Model NO.：KX
• Hot Type：Electricial,Gas.Fuel
• Transport Package：Wooden Case
• Specification：8000*1500*1800mm
• Trademark：Keysong
• Origin：Shandong China
• HS Code：8438800000
• Production Capacity：50et,Month

Basic Info.

Model NO. KX Hot Type Electricial,Gas.Fuel Transport Package Wooden Case Specification 8000*1500*1800mm Trademark Keysong Origin Shandong China HS Code 8438800000 Production Capacity 50et/Month

Product Description

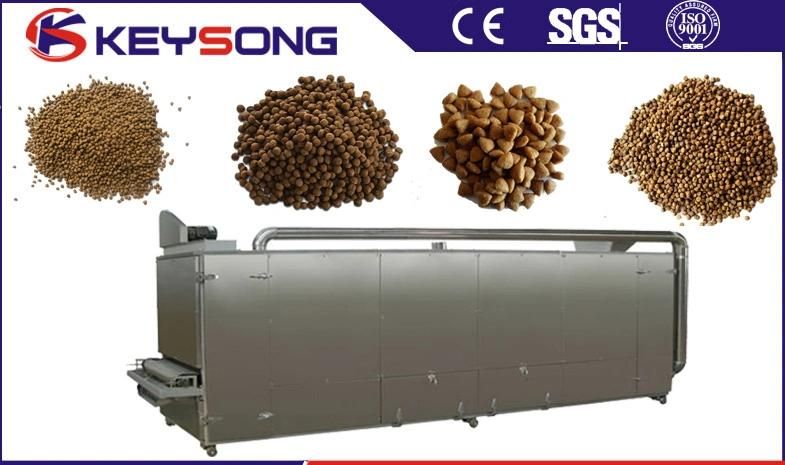

Tunnel typre food oven dryer for snack and frying food

1.Feature:

1.rapid heating and symmetrical heating

2.energy saving and efficient

3.milewproffing/sterilizing /keeping fresh

4.healthy
Introduction

      New Condition Industrial Microwave Dryer For Food Drying is used of electro-magnetic induction or infrared radiation to dry the raw material.By microwave energy permeation, the material inner moisture quickly been heated and gasified, forming a strong outward diffusion situation, to make the moisture extremely quickly spread to the surface.
     This machine fits for drying and sterilizing powders, granular, sheet-like or gel-like food, andadditive, spices, flavoring, medicine, raw material of herbal medicine, nutritional health products,agricultural & sideline products, non-fired(or oil saving)instant noodles, noodles, rice powderneedles, soy products, preserved meat, dried fish, tea, tobacco, ceramic, construction industry and so on;

2.Machine parameters:

NO.	NAME	SPECIFICATION
1	Electric Oven (5 meters long with 3 layers)	Driving power: 0.75kw Electricity elements power: 28kw Capacity: 100-300kg/h Size: 5000*1300*1900
2	Electric Oven  (5 meters long with 5 layers)	Driving power: 3.5kw Electricity elements power: 45kw Capacity: 100-300kg/h Size: 5000*1300*1900 Double mesh belt: 1 meter wide. Belt speed adjusted by inverter. Temperature: 40-180 degrees Celsius automatic controlling. Silicate insulation material. Bottom equipped with sliding tray to conveniently clean the dregs. 380v,50hz,3 phase Using SIEMENS brand inverter for conveyor speed control.
3	Electric Oven  (8 meters long with 5 layers)	Power: 3.5kw Heating power: 50kw Capacity: 120-270kg/h Size: 8000*1300*2000 SS belt  Removing the moisture from the wet food  Using blower for hot air circulation
4	Electric Oven  (11 meters long with 5 layers/9meters long with 7 layers)	Driving power: 5.5kw Capacity: 100-300kg/h Size: 9000*1300*2500  Double mesh belt (made of stainless steel) Using a sole control cabinet controlling temperature
5	Gas-powered Oven (5 meters long with 3 layers)	Driving power: 0.75kw Electricity elements power: 28kw Capacity: 100-300kg/h Size: 5000*1300*1900
6	Gas-powered Oven (5 meters long with 5 layers)	Driving power: 3.5kw Electricity elements power: 45kw Capacity: 100-300kg/h Size: 5000*1300*1900 Double mesh belt: 1 meter wide. Belt speed adjusted by inverter. Temperature: 40-180 automatic controlling. Silicate insulation material. Bottom equipped with sliding tray to conveniently clean the dregs. 380v,50hz,3 phase Using SIEMENS brand inverter for conveyor speed control.
7	Gas-powered Oven (8 meters long with 5 layers)	Power: 3.5kw Heating power: 50kw Capacity: 120-270kg/h Size: 8000*1300*2000 SS belt  Removing the moisture from the wet food  Using blower for hot air circulation
8	Gas-powered Oven (11 meters long with 5 layers/9meters long with 7 layers)	Driving power: 5.5kw Capacity: 100-300kg/h Size: 9000*1300*2500  Double mesh belt (made of stainless steel) Using a sole control cabinet controlling temperature
9	Oil-powered Oven (5 meters long with 3 layers)	Driving power: 0.75kw Electricity elements power: 28kw Capacity: 100-300kg/h Size: 5000*1300*1900
10	Oil-powered Oven (5 meters long with 5 layers)	Driving power: 3.5kw Electricity elements power: 45kw Capacity: 100-300kg/h Size: 5000*1300*1900 Double mesh belt: 1 meter wide. Belt speed adjusted by inverter. Temperature: 40-180 degrees Celsius automatic controlling. Silicate insulation material. Bottom equipped with sliding tray to conveniently clean the dregs. 380v,50hz,3 phase Using SIEMENS brand inverter for conveyor speed control.
11	Oil-powered Oven (8 meters long with 5 layers)	Power: 3.5kw Heating power: 50kw Capacity: 120-270kg/h Size: 8000*1300*2000 SS belt  Removing the moisture from the wet food  Using blower for hot air circulation
12	Oil-powered Oven (11 meters long with 5 layers/9meters long with 7 layers)	Driving power: 5.5kw Capacity: 100-300kg/h Size: 9000*1300*2500  Double mesh belt (made of stainless steel) Using a sole control cabinet controlling temperature

The Main components of Tunnel Microwave Dryer :
1.Microwave generator system
2.Microwave box
3.Temperature controlling system
4.Humidity controlling system
5.Transmission system
6.PLC and touch screen control system
7.Humidity discharging system
8.Electrical cabinets
9.Cooling system
10.Hot air recycling and circulatory system

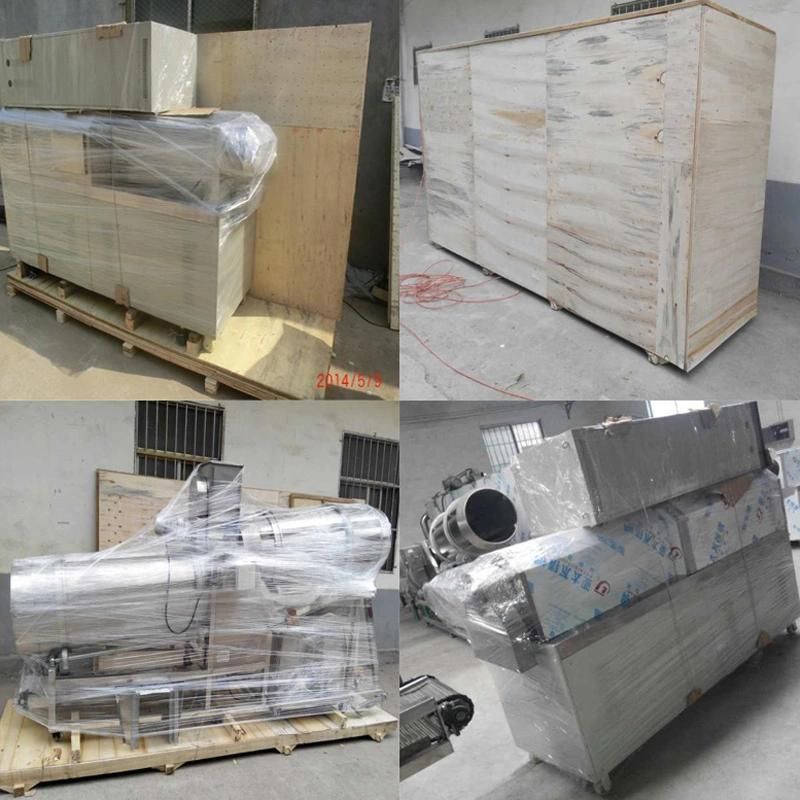

3.Package and shipping
          Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottomWith this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.


4.Our Service
#. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
#. Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
#. 12 months guarantee of the whole machine.
#. Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
#. Lifetime maintenance free of charge.
#. We will provide the consumable parts at an agency price when you need replacement.
#. Machine has been adjusted before delivery.
#. Our staff can be sent to your company to install or adjust if necessary
5.FAQ
1. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL/TNT, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2. How long is the delivery time?
For standard machines, it would be20-30 days; For non-standard machines and customized machines according to client's specific requirements, it would be 30-45 days.
3. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4. How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel BeltSave space as much as possible for container loading.
