• Model NO.：PHE Series
• Name：Milk Yogurt Juice Stainless Steel Heating Exchang
• Material：Stainless Steel 304 , 316
• Plate Heat Exchanger：Heat and Cool The Liquid
• Heating Transfer Area：Customized
• Function：Heat and Pasteurize Milk, Cool Down Milk
• Plate Heat Exchanger Processing Capacity：500lph to 50000lph
• Sizes：Customized
• Gasket：Silicon, PTFE
• Industry：Food, Pharmacy, Beverage, Juice, Milk
• Packing：Wooden Box
• Warranty：One Year
• Motor Brand：Siemens ,ABB,China Brand
• MOQ：1set
• OEM：Yes
• Voltage ,Hz ,Phase：Make It to Your Order .
• Transport Package：Standard Wooden Box
• Specification：ISO
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：841950009
• Production Capacity：50 PCS,Month

Basic Info.

Model NO. PHE Series Name Milk Yogurt Juice Stainless Steel Heating Exchang Material Stainless Steel 304 / 316 Plate Heat Exchanger Heat and Cool The Liquid Heating Transfer Area Customized Function Heat and Pasteurize Milk, Cool Down Milk Plate Heat Exchanger Processing Capacity 500lph to 50000lph Sizes Customized Gasket Silicon, PTFE Industry Food, Pharmacy, Beverage, Juice, Milk Packing Wooden Box Warranty One Year Motor Brand Siemens /ABB/China Brand MOQ 1set OEM Yes Voltage ,Hz ,Phase Make It to Your Order . Transport Package Standard Wooden Box Specification ISO Trademark KAIQUAN Origin Shanghai, China HS Code 841950009 Production Capacity 50 PCS/Month

Product Description

Milk Yogurt Juice Stainless Steel Heating Exchanger
plate heat exchanger Usage:



Plate heat exchanger is being used in various fields,such as metallurgy,mining,petroleum,chemical engineering,electricity,pharmacy,food,synthetic fiber,textile,papermaking,shipbuilding,concentrated heating,machinary,and it can deal with many kinds of materials,including ordinary industrial water,liquid of high viscosity,healthful edibile liquid,clinical materials,corrosive acid and alkali,liquid with granule,floating liquid with fabric fibre, etc;
Plate heat exchanger can be used to heat,cool,evaporate,condense,sterilize,recover waste heat,etc

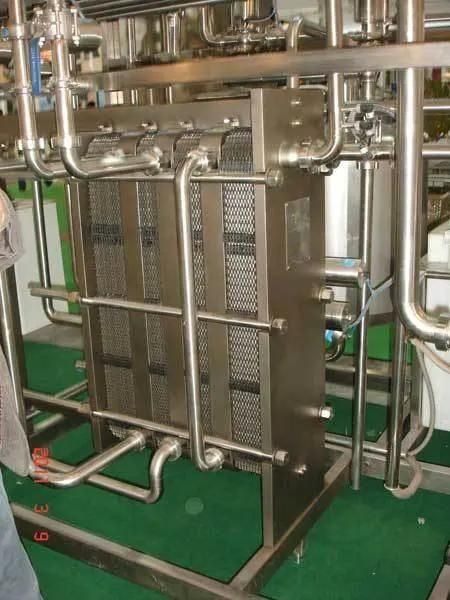

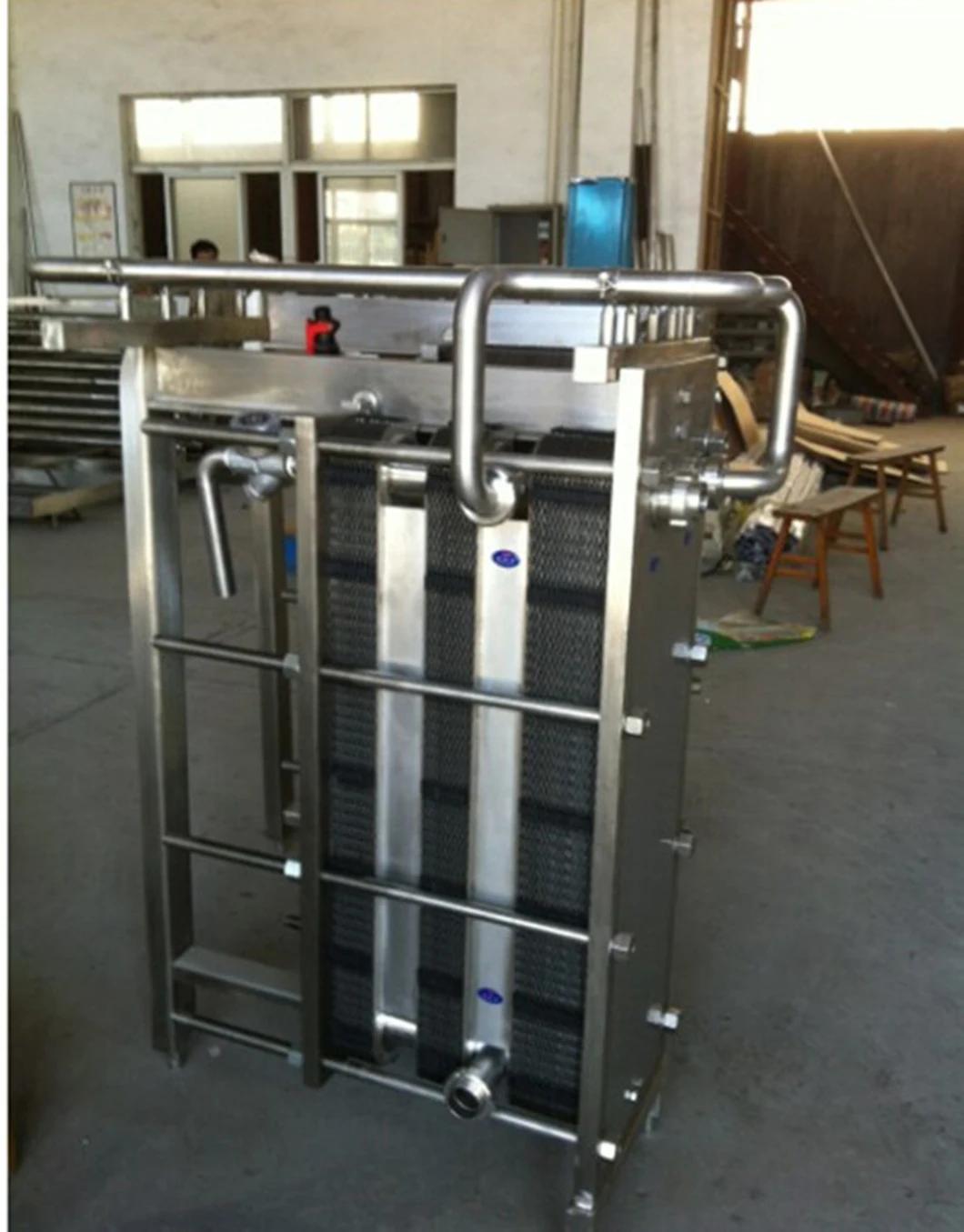

Sanitary Milk Plate Pasteurizer Plate Heat Exchanger Cooler

model	BR 0.05	BR 0.1	BR 0.2
single plate heat exchange area (m²)	0.05	0.1	0.2
plate size (mm)	500×168	660×250	970×330
plate thickness (mm)	0.8	0.8	0.8
aperture diameter (mm)	38	60	75
adapter tube diameter (mm)	28	38	46
corrugation shape	herringbone	herringbone	herringbone
corrugation distance (mm)	10	12	12
average plate distance (mm)	3.8	4.2	4.2
combinatorial heat exchange area (m²)	0.5~5	4~10	10~38
maximum pressure (Mpa)	0.4~2	0.4~2	0.4~2
maximum temperature (°C)	120~160,250(special-required)	120~160,250(special-required)	120~160,250(special-required)
heat transfer coefficient (W/m²°C)	2000~6000	2000~6000	2000~6000

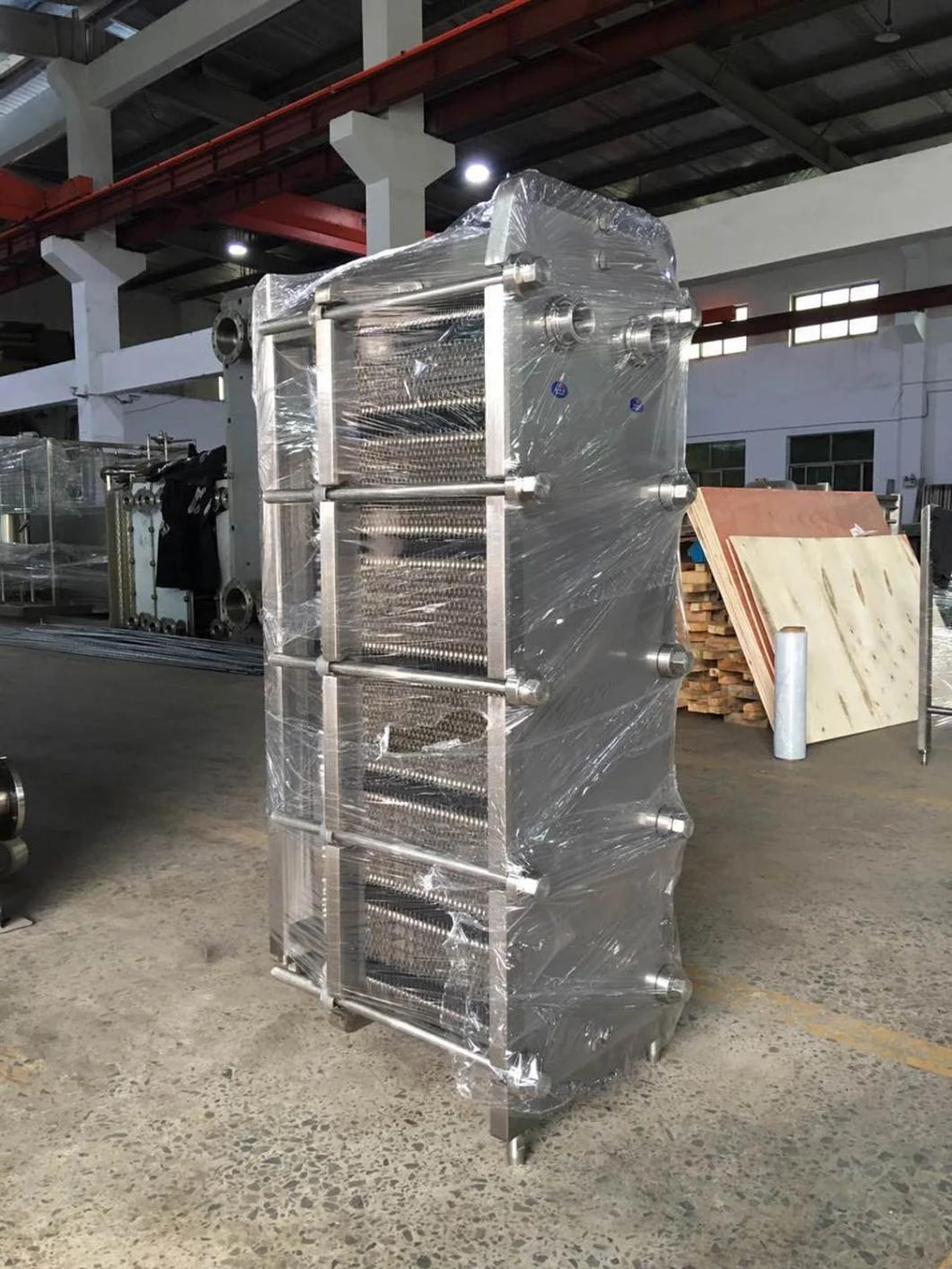

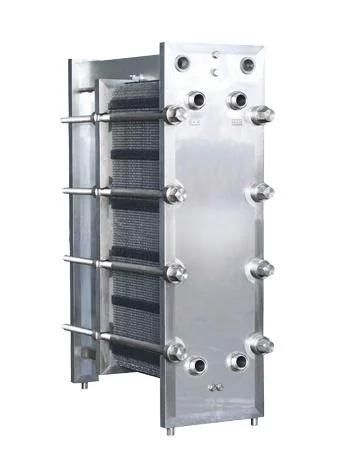

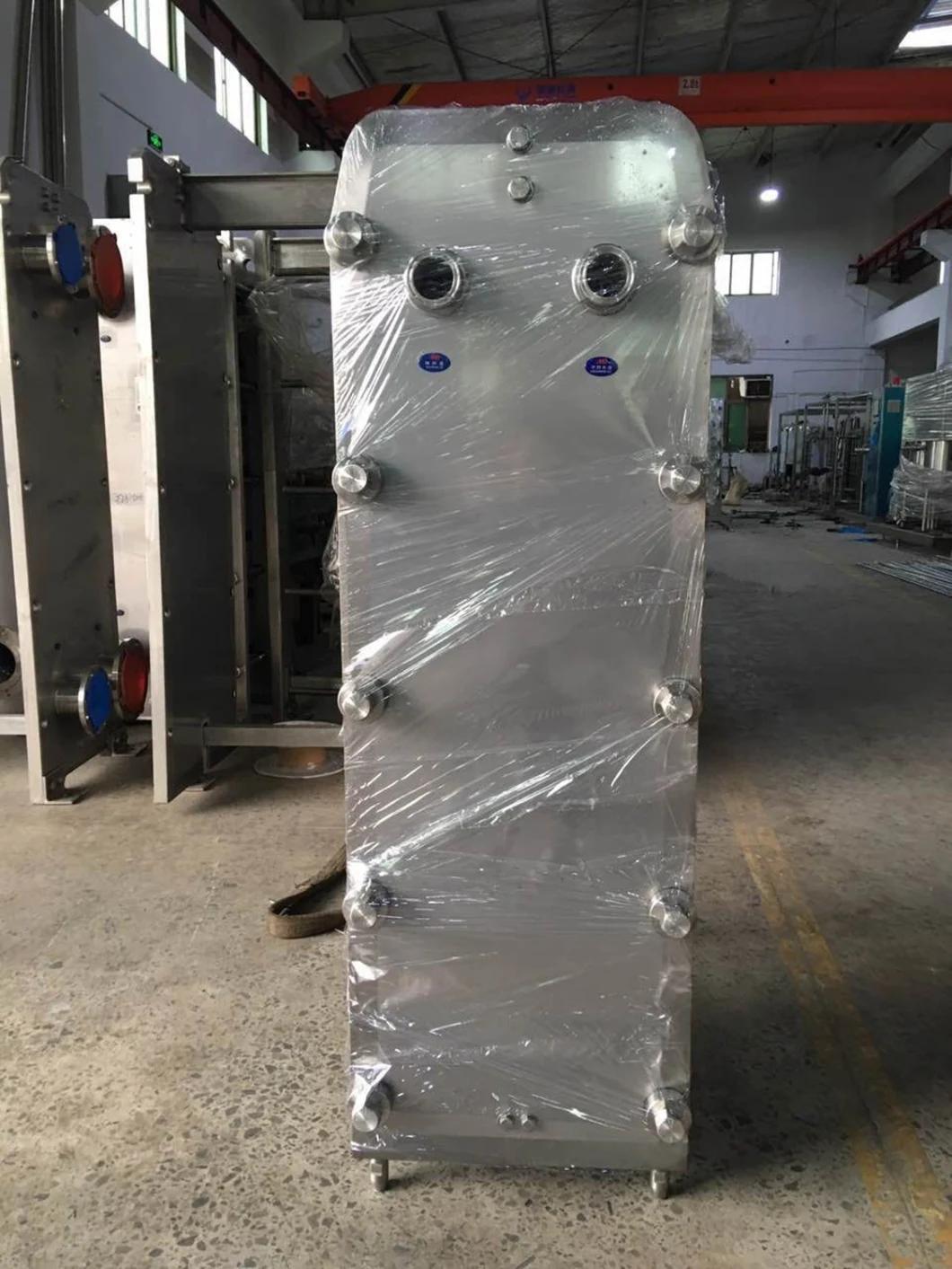

Plate and Frame heat exchangers consist of a number of specially corrugated stainless steel plates assembled in a frame and bolted between two pressure plates, one of which is fixed and the other adjustable.
Turbulence is created in the liquid flow channels, giving very high heat transfer coefficients and resulting in a compact, efficient heat exchanger.
 Plate and Frame heat exchangers provide highly efficient thermal performance.
Corrugated plates induce extremely turbulent flow, resulting in maximum rates of heat transfer and minimized fouling. Multiple corrugation patterns allow optimization to meet specific thermal and hydraulic requirements.
Plate and Frame heat exchangers are also extremely space-efficient, easy to maintain, and can be inspected and cleaned without removing the plates from the frame.
Milk Yogurt Juice Stainless Steel Heating Exchanger .
