Stainless Steel Capacity Design Millk Cooling Chilling Tank Factory

Shanghai Kaiquan Machine Valve Co., Ltd.
  • Process:Frozen and Chilled
  • Power Source:Electric
  • Certification:CE, MET, CSA, UL, SA8000, ISO9001
  • Automatic Grade:Automatic
  • Application:Milk
  • Name and Description:Stainless Steel Capacity Design Millk Cooling Chi

Base Info

  • Model NO.:KQ Series
  • Material:Sanitary Stainless Steel 304 ,316
  • Fresh Bulk Milk Cooling and Storage:300litres to 10000litres
  • Refrigerant:404A ,R22
  • Compressor:USA Copeland
  • PU Insulation Wall Thickness:80mm
  • Outside Shape:Vertical and Horinzontal
  • Milk Cooling Tank Function:Cooling, Storage ,Mixing
  • Capacity:300L=15000L
  • Packing:Wooden Box
  • Warranty:One Year .
  • MOQ:1set
  • Motor Brand:Siemens ,ABB ,China Brand
  • Insulatioin:Polyurethane Foam
  • Name:Stainless Steel Capacity Design Millk Cooling Chil
  • Transport Package:Standard
  • Specification:ISO
  • Trademark:KQ
  • Origin:China
  • HS Code:8479820090
  • Production Capacity:1000

Description

Type

KQ-1T

Vertical type

KQ-2T

Laying type

KQ-3T

Laying type

KQ-5T

 Laying type

KQ-6T

 Laying type

KQ-8T

 Laying type

KQ-10T

 Laying type

Capacity(L)

1000

2000

3000

5000

6000

8000

10000L

Refrigerating Output(W)

9000

15000

22000

37000

38000

55000

74000

Refrigerating  Fluid(R)

R404/R22

R404/R22

R404/R22

R404/R22

R404/R22

R404/R22

R404/R22

Insulating Property

1C/4h

≤1C/4h

≤1C/5h

≤1C/5h

≤1C/5h

≤1C/5h

≤1C/6h

Agitator Speed

36r/min

36r/min

36r/min

36r/min

36r/min

36r/min

36r/min

Power (Kw)

3.8

5.9

7.5

10.5

11

13

19.2

Voltage

380V/50Hz,3phases

380V/50Hz,3phases

380V/50Hz,3phases

380V/50Hz,3phases

380V/50Hz,3phases

380V/50Hz,3phases

380V/50Hz,3phases

Dimension(mm)

1800*1200*1500

3400*1550*1750

3600*1700*1900

3900*2050*2150

4500*2050*2150

6300*2050*2250

8000*2100*2400

Weight(Approximately)

0.6T

 0.75T

0.9T

1.1T

1.3T

Stainless Steel Capacity Design Millk Cooling Chilling Tank Factory

Stainless Steel Capacity Design Millk Cooling Chilling Tank Factory
Milk Vat Milk Cooling Vat Milk Storage Vat Storing Vat
Milk cooling & storage. Milk cooling & storage cooling tank and control unit. Rapid and efficient milk cooling is essential for preserving milk quality
Stainless Steel Capacity Design Millk Cooling Chilling Tank Factory

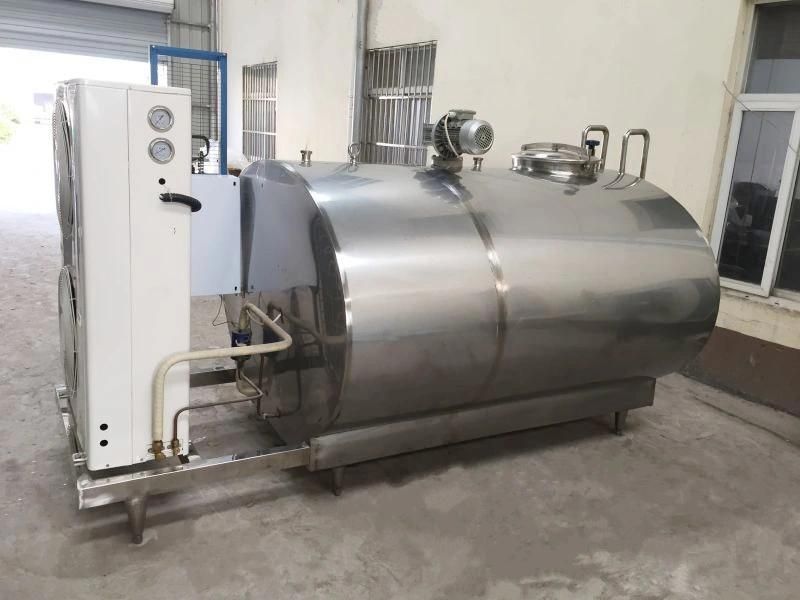

SS304 MILK COOLING TANK
Producing milk cooling tanks, collection centres, tubular coolers, milking machine components, pasteurisers, ice water

Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
Stainless Steel Capacity Design Millk Cooling Chilling Tank Factory
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device
