• Model NO.：kq-mt
• Name：Heating Mixing Tank Heating Cooling Tank Tank Wit
• Agitator Speed：36rpm, 48rpm, 960rpm,2900rpm
• Material：SS304,SS316
• Heating and Mixing Tank：for Heating and Mixing Liquid, Liquid and Powder
• Storage Tank：Aseptic Storage Tank with Manhole
• Delviery：10 Days
• Packing：Wooden Box
• Orign：Shanghai China
• MOQ：1 Piece
• Application：Food Industry
• Spare Parts：Available
• Motor Brand：Siemens ,ABB ,Chinese Motor
• OEM：Yes
• Working Pressure：Make It to Your Order
• Cleaning：Rotary Ball
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：200L To30000L

Basic Info.

Model NO. kq-mt Name Heating Mixing Tank Heating Cooling Tank Tank Wit Agitator Speed 36rpm, 48rpm, 960rpm,2900rpm Material SS304,SS316 Heating and Mixing Tank for Heating and Mixing Liquid, Liquid and Powder Storage Tank Aseptic Storage Tank with Manhole Delviery 10 Days Packing Wooden Box Orign Shanghai China MOQ 1 Piece Application Food Industry Spare Parts Available Motor Brand Siemens /ABB /Chinese Motor OEM Yes Working Pressure Make It to Your Order Cleaning Rotary Ball Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 200L To30000L

Product Description

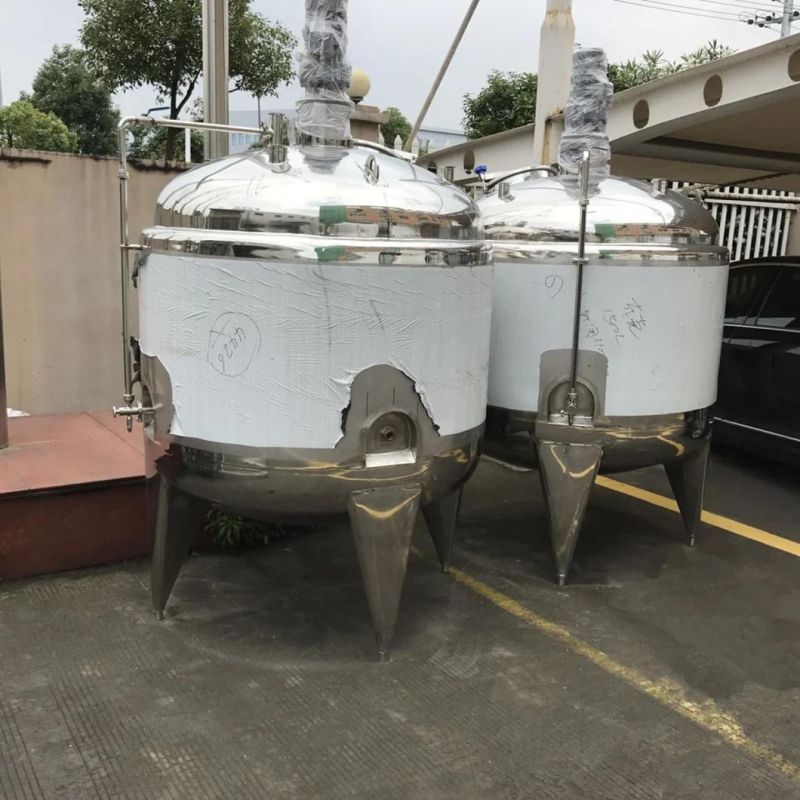

Heating Mixing Tank Heating Cooling Tank Tank With Agitator
Material: Ss304




* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
*PU INSULATION WALL: 50MM
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down manhole and pipe will be as the picture you sent to us
* Accessories:
(1) Manhole covers
(2) Charging/discharging hole at the bottom,
(3) CIP Cleaning ball
(4) Steam heating tube
(5) Rack & blender etc.
(6) the electric motor
Agitator blending tank
1. More than 10 years experience
2. Capacity: 100-5000L
3. Manufacturer
4. Custom-made solution

1

sugar mixing tank

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

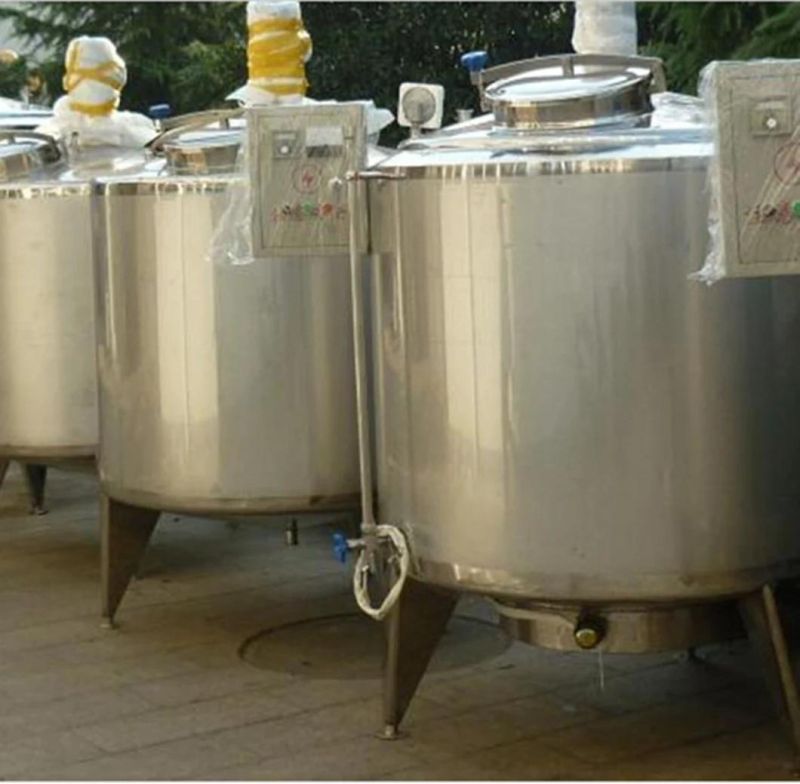

Steam heating chemical agitator tank blending tank
PME Multi-function Blending Reactive Mixer/ vacuum homogenizer mixer
High speed disperser, might mixing and disperse viscously. Solid and liquid raw material can dissolve material which is hard to dissolve such as AESAESALSA during liquid production which can save energy consumption and shorten production period.
Main blender adopts stepless speed variator device and under low temperature and high viscosity condition, less air bubble will be formed;
Heating Mixing Tank Heating Cooling Tank Tank With Agitator
Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank etc.
2. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristics
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements).
8. Side blender.
9. Liquid level meter and lever controller (According to customer requirements).
10. Eddy-proof board.
Heating Mixing Tank Heating Cooling Tank Tank With Agitator
