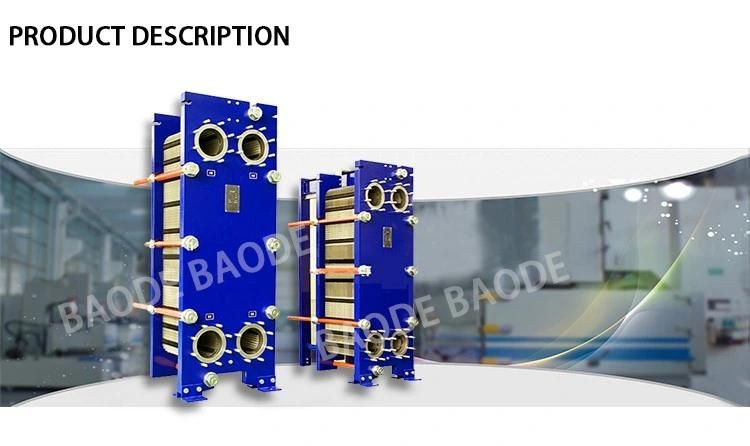

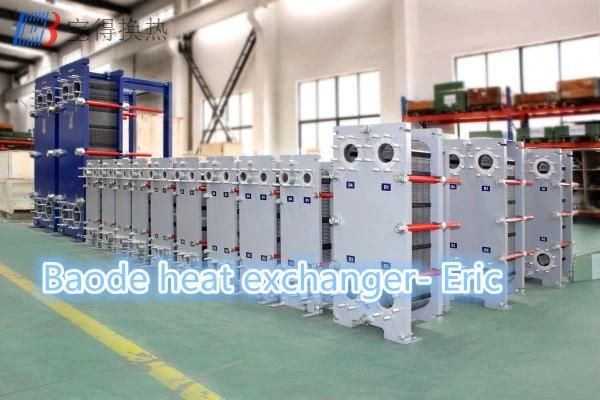

Milk Cooler Tl10b Stainless Steel Type Plate Heat Exchanger
Jiangsu Baode Heat-exchanger Equipment Co., Ltd.- Type：Heater Exchanger
- Application：Pasteurization
- Transport Package：Standard Plywood Box
- Specification：ISO9001, CE, UL, WRAS, ROHS and etc.
- Trademark：Baode
- Origin：China
Base Info
- Model NO.：BH Series
- HS Code：8419500090
- Production Capacity：1000 PCS,Month
Description
BSL100BCross Reference TL10B Height, H [mm] 1885 1923 Width, W [mm] 480 480 Min standard length, L [mm] 850 850 Max standard length, L [mm] 2350 3250 Vertical port distance, VC [mm] 1338 1338 Horizontal port distance, HC [mm] 225 225 Max temperature [° C] 160 160 Max pressure [barg] 10 16 Flange size DN100/4" DN100/4" Max. flow rate [kg/s] 50 Material Applicable Temp Applicable fluids NBR -15C to +135C Water, sea water, Mineral oil, salinous water EPDM -25C to +180C Hot water, Steam, Acid, Alkali F26 -55C to +230C Acid, Alkali FTP 0C to +160C High Concentrated acid, Alkali, High temperature oil, Steam
