• Model NO.：500ton,day
• Condition：New
• Customized：Customized
• Control：PLC Touch Screen
• Running Maize Mill in Factory：Yes, Warmly Welcome to Visit
• Weight：165t
• Power(W)：Around 888kw
• Certification：SGS, BV, Ce ISO
• Motive：Power
• Material：Maize, Corn, Yellow Maize, White Maize
• Machine：Maize Flour Milling Machine, Grain Mill Machine
• Name：500ton,Day Maize Flour Milling Machine Grain Mill
• Pipe：Stainless Steel of Maize Flour Milling Machine
• Transport Package：Suitable for Sea Transport
• Specification：HDFM500T,D
• Trademark：HDF
• Origin：Hebei, China
• HS Code：8437800000
• Production Capacity：500ton,Day

Basic Info.

Model NO. 500ton/day Condition New Customized Customized Control PLC Touch Screen Running Maize Mill in Factory Yes, Warmly Welcome to Visit Weight 165t Power(W) Around 888kw Certification SGS, BV, Ce ISO Motive Power Material Maize, Corn, Yellow Maize, White Maize Machine Maize Flour Milling Machine, Grain Mill Machine Name 500ton/Day Maize Flour Milling Machine Grain Mill Pipe Stainless Steel of Maize Flour Milling Machine Transport Package Suitable for Sea Transport Specification HDFM500T/D Trademark HDF Origin Hebei, China HS Code 8437800000 Production Capacity 500ton/Day

Product Description

5-500 Ton Maize Flour Milling Machine Maize Milling
Technology data of maize flour milling machine


  (1) Production capacity: 500T(maize)/24H
  (2) Products variety:
       1) Maize fine flour, all through 44 mesh (400micron) sieve
       2) Maize rice;
       3) Maize germ;
       4) Maize bran;
       5) Coarse Fodder.
   (3) Extraction rate:
      1)Fine Maize flour: 30~40%
      2) Maize rice:35-40%
      3) Maize germ: 8-10%
      4) Maize bran and Fodder flour:10-14%
  (4)Workshop dimension: 48×15×13m(L×W×H)
  (5)Power supply: About 888kW.
  (6)Total weight of the equipment: 165T.
  (7)Container:10*40' (common one suit for transportation).
   (8)Install time: two- four months.


2-----.The core technologies of our group are in the filed of maize  milling  process engineering, with European
technology, South Africa maize process, China wheat process, roll out unique and innovative wheat flour and
maize meal processing line . It has the following features:

   (1) the cleaning system
        Degerminator :
         1) Dry degermination with low fat content. Combined with Buhler and Satake
         2) Technology. Multi-faceted sieve tube design, the screen The high-quality Stainless steel
         3) Nitriding treatment

    (2)the milling system
          Roller Mills
          1) The partitioned paneling and swing-out feed module guarantee ideal
access to the feeding and grinding rolls. This makes residue-    free   cleaning possible.
          2) A pulse generator automatically adjust the feed material at the entrance door
          3) Bearing SKF
         4) Temperature monitor

    (3)Plant Control System
         1) PLC control system with CCTV surveillance system realize Seamless integration
         2) Automatic weighting and packing system

3.-----Our market of maize flour milling machine:



Capacity	Countries	Year
20tons/24h maize flour mill	Zimbabwe	2009
	RD Congo	2010
	Zambia	2010
	Zambia	2011
	RD Congo	2011
50tons/24h maize flour mill	Malawi	2009
	Kenya	2010
	Zimbabwe	2010
	Uganda	2011
100tons/24h maize flour mill	South Africa	2010
	Venezuela	2010

500ton/Day Maize Flour Milling Machine Grain Mill Machine for Africa

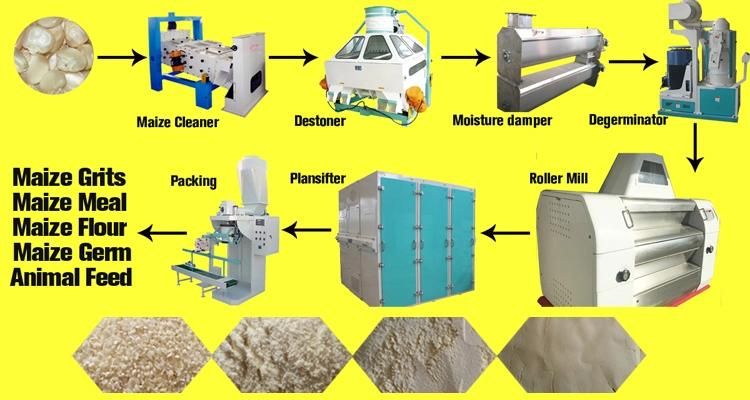

4-----Main machine of  maize flour milling machine
1.Roller Mills
1)The partitioned paneling and swing-out feed module guarantee ideal
access to the feeding and grinding rolls. This makes residue-free
cleaning possible.
2) a pulse generator automatically adjust the feed material at the entrance door

2.Plansifter
1) Material: High-strength alloy steel
2)up and down sifter circles with steel plate overall by bending
3)Transmission system using spring force component institutions
4)Sieve frames of wood coated with synthetic resin,without backwire
5)All the inside walls as well as the doors are provided with high-grade insulation
6)Vertical and horizontal clamping system

3.Degerminator :
dry degermination with low fat content.
Technology. Multi-faceted sieve tube design,the screen The high-quality stainless steel nitriding treatment



5-----Pre-sale services of maize flour milling machine:
If you want to start a maize and corn flour milling business, please just tell us which capacity can meet your
needs (How many raw material do you process per 24hours?)
and all of your requirement for this flour milling project (Such as final products you need, machine technic,land
dimensions if have,warehouse building dimensions if have.
More idea from you will help to make a proper design for you. )
If you are not very clear which machine is best suitable for you, we will suggest some kinds for your choice.
You will find the best one for you!
Technician teamavailable:
Machine design (Techical flow sheet,drawings),
Grain storaging design (silos etc)
Flour storage design
Warehouse building design (steel structure & concrete building simple design)
A factory layout if you need.



6-----Contact me for maize flour milling machine:
If you need more detail design and list ,official quotation please contact us freely by email ,leave SMS on
Vivian Lv
Export manager
I am on Cell: +86 13722890692

Shijiazhuang Hongdefa Machinery CO.,LTD
Add:Shijiazhuang,Hebei Province, China
