• Model NO.：1stack-4stacks
• Production Capacity：1000 Sets Per Month

Parameters12" filter stacks16" filter stacks1 stack2stacks3stacks4stacks1stack2stacks3stacks4stacksTotal Height mm950121014901760960123015001770Inlet to center distance mm200250Shell diamater mmφ 325φ 450Inlet/outlet height mm280280Inlet/outlet size2"2" Stacks Qty.Modelshell Materialinlet/outlet connectionO-ring1B124FE1B=1stack12=12"stack4=304F=FlangeE=EPDM2B=2stacks16=16"stack6=316LK=Tri-clampP=PTFE3B=3stacks  L=Screw threadV=Viton4B=4stacks   S=Silicon

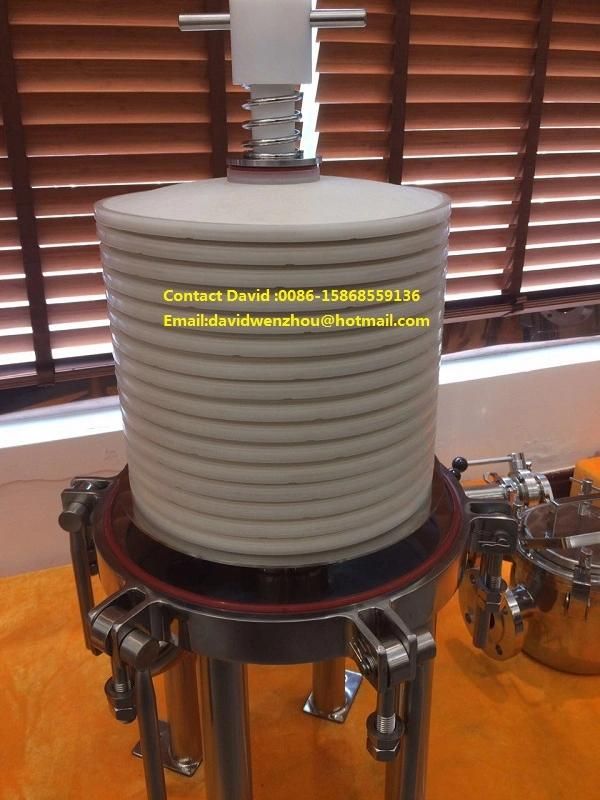

GDB Lenticular Filter is a new type of stacks filter, can be used in place of diatomite filter, for tiny impurities in varied kinds of liquid filtration,clarification,purification.

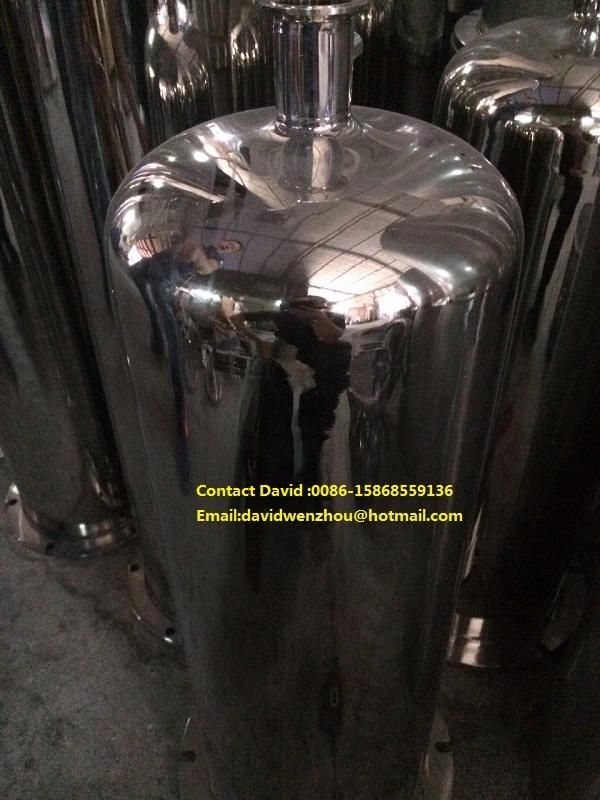

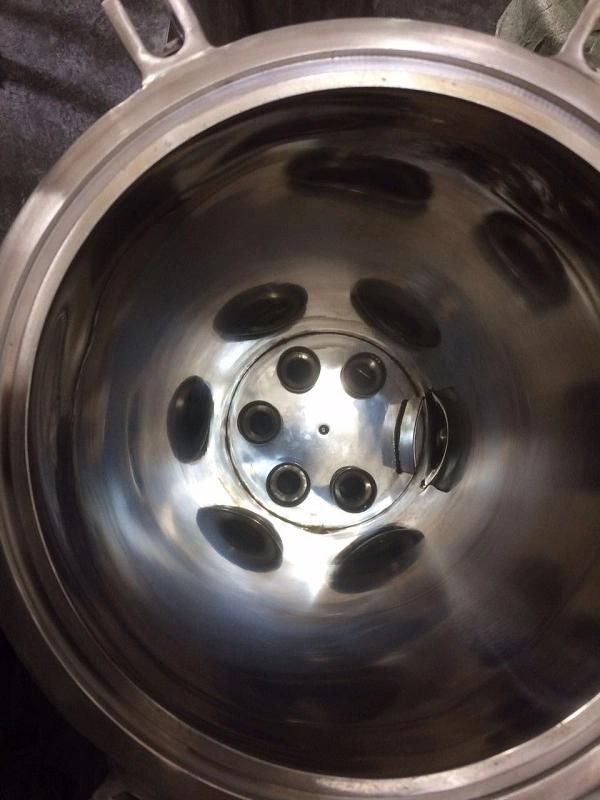

The structure is designed and manufactured according to the health level,internal is no dead corner and mirror polishing,it ensure no residual liquid and easy to clean.

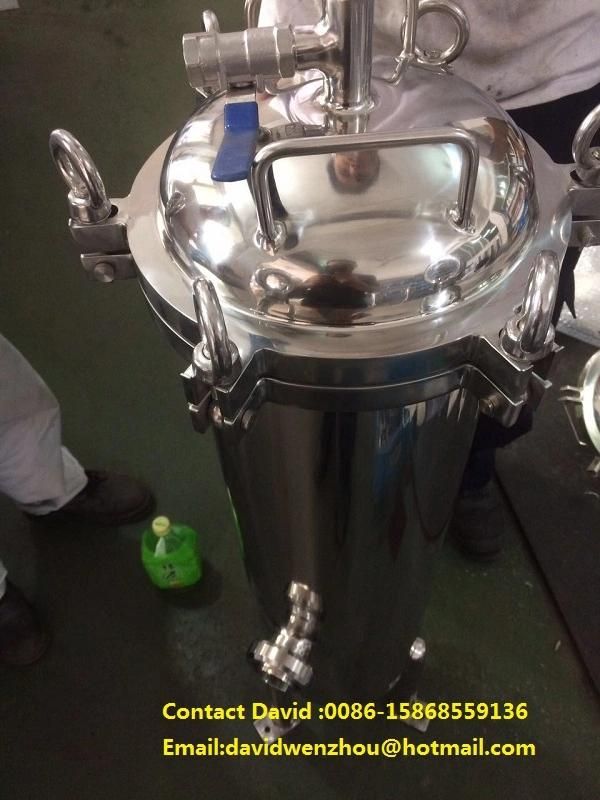

GDB lenticular filter housing can max install 4 filter stacks, it can fit for big flow requirements.

Easy to clean, the inlet/outlet can be configured special discharge valve,easy to drain.
Easy to replace the filter stacks,reduce the filter medium leakage.

Application:
Mircobe and solid filtration of alcohol,syrup,beer.
End filtration of fruit juice and juice concentrate.
Pre filtering of juice membrance filtration.
Clarificaiton of alcohol,enzyme dissolution , liquid gum,olive oil .
Pharmaceutical,chemical,electronic filtration.

Details contact David  phone: 0086-15868559136
