• Model NO.：1T-10T
• Material：Ss316L
• Transport Package：Normal Export Package
• Specification：1T-10T
• Trademark：Tianlong
• Origin：Wenzhou, China
• Production Capacity：100sets Per Month

Basic Info.

Model NO. 1T-10T Material Ss316L Transport Package Normal Export Package Specification 1T-10T Trademark Tianlong Origin Wenzhou, China Production Capacity 100sets Per Month

Product Description

Heating type of cleaning liquids is automatic heating.Temperature of cleaning is set on temperature controller,and steam regulator vavles are controlled to regulate following volume of steam,in order to make cleaning liquid kept to the temperature needed.Automatic alarming and indication are adopted for level control in all tanks of CIP station.When concentration of cleaning liquid is not up to the concentration of cleaning , thick acid liquids or thick alkali liquids will be added through pneumatic diaphragm pumps.During cleaning,CIP liquids are fed through pipes and valves by operators.Operators shall add water into tanks when they are in shortage of water .

Advantages:automatic control on heating of cleaning liquid is utilized to regulate temperature of cleaning to the temperature required by technologies.Thick acid liquids or thick alkali liquids are added through pneumatic diaphragm pumps.which improves safety in operation.Cost is reduced by automatic control on temperature and alarming of levels.

Disadvantages:comparatively high capital investment .Requirements on maintenance technicians are comparatively high.

Accurate control on temperature ,safety in operation,both reduce production cost capital.Investment on production is not very high .Therefore , it is a good choice for all large , medium and small enterprises of foods in china .

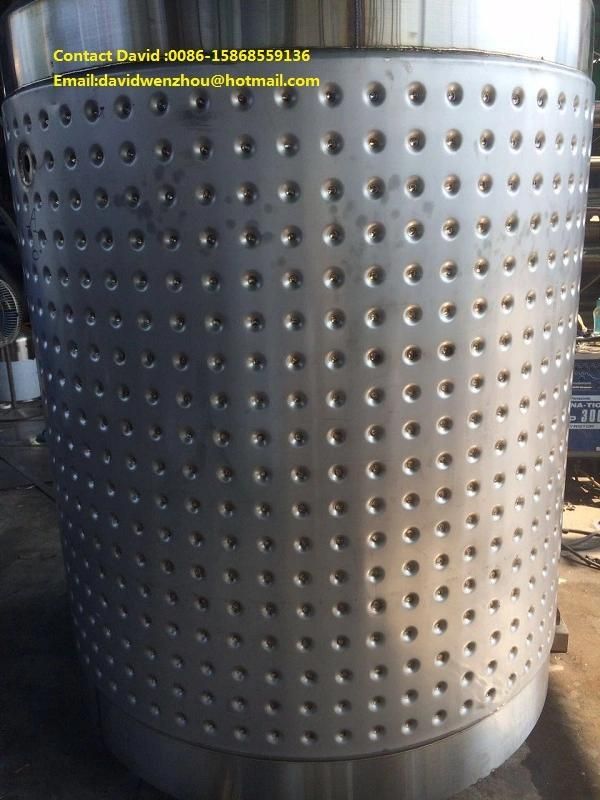

Note:1.Plate heating type: heat exchanging efficientcy of plate is high,which reduces steam consumption and cost.Coil-pipe heating type:heat-exchanging efficiency is lower than plate heating type.but its invested cost is less than plate heating type.(Can be attached with steam-through heating).
2.All specifications of joint type have systems of three basic types of tanks (including acid tank,alkali tank and hot water tank).All specifications of split type are of systems of three types,four types and five types of tanks.
