• Power：Electric, Gas, Diesel
• Service：Engineer Oversea Available
• Product：Puff Snack Making Machine
• Transport Package：Plastic Filma and Wooden Cases
• Specification：Stainless steel
• Trademark：SUNWARD
• Origin：Jinan
• HS Code：8438800000
• Production Capacity：30 Sets Per Month

Model

TSE-65-III

TSE-70

TSE-85

Installed capacity(kw)

70

105

205

Real power(kw/h)

50

75

150

Output(kg/h)

100-150

200-260

400-500

Dimension(mm)

17000*1300*2200

20000*1500*2200

30000*1500*2600

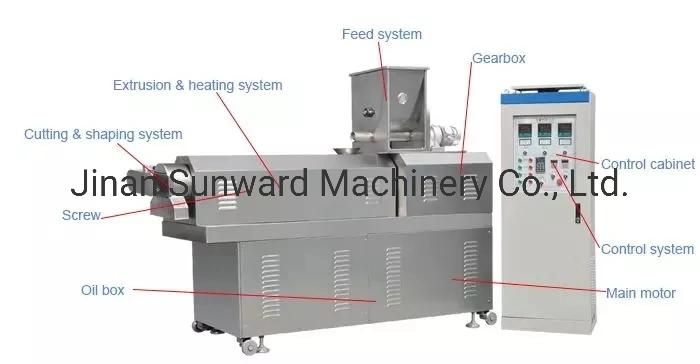

2.1 Twin-screw extruder



1.The main extruder adopts frequency speed controlling with high automation.
2.The screws are made of the stainless steel and special craft, which has the advantage of durable usage, high pressure,and longer life.
3.The forced lubrication system ,which can guarantee the equipment transmission life longer.
4.Auto-temperature control system and self-cleaning ,which makes it more convenient.
5.It has the widest range of applications and can produce different products with different equipment and models.

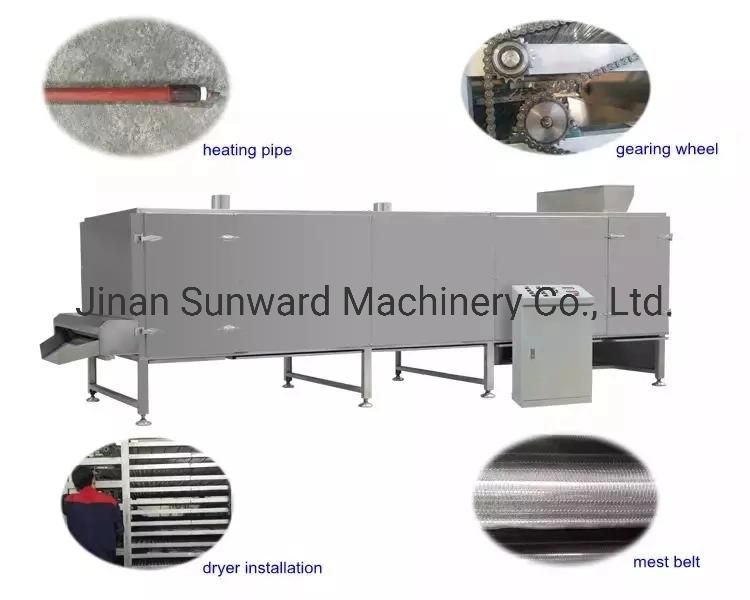

2.2 Multi-layer dryer



1.We have four types of dryers, which includes fuel ovens, gas ovens, electric ovens, and high temperature inflated ovens (used to produce corn flakes).
2.Dryer is compact, has small dry area and a largesuperficial area. It also features small scale of heat elimination and high thermal effciency.
3.Mesh belt conveyors and thermal insulation boards all use stainless steel material, making the equipment clean and sanitary.

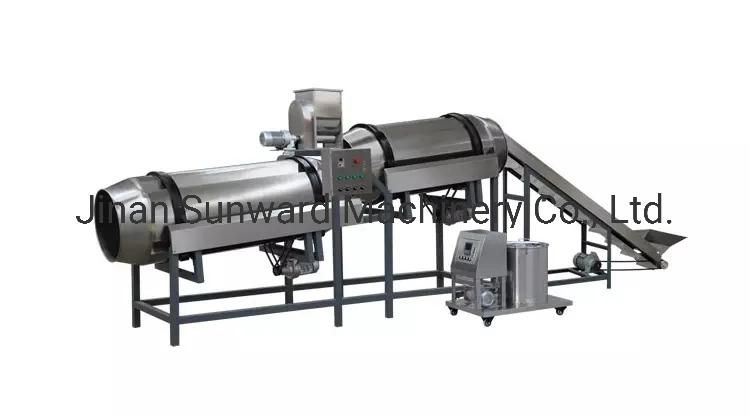

2.3 Flavoring line

1.The flavoring line could mixed products together with flavoring powder and flavoring liquid by self rolling.
2.We can supply both batch flavoring system and continuous flavoring system according to need.

Packaging & Shipping

Jinan Sunward Machinery Company is founded in 2008. For supplying best service, technology department, Sales department, producing department , after- sales department are always available for you. Sales department includes two international sales department and two domestic sales department.
