Electric Kettle Steam Kettle Gas Kettle Jacketed Pot Cooking Kettle
Shanghai Kaiquan Machine Valve Co., Ltd.- Usage:Biscuit, Cake, Pizza, Bread, Food Industry
- Power Source:Electric
- Timing Device:Without Timing Device
- Type:Cooking Kettle
- Voltage:All Is Ok
- Customized:Customized
Base Info
- Model NO.:KQ-500
- Name:Electric Kettle Steam Kettle Gas Kettle Jacketed
- Function:Heating and Mixing
- Capacity:100L to 1000L
- Mixer Type:Mixer , Mixer with Scraper
- Application:Cooking , Pasteurizing and Mixing Liquid
- Material:Food Grade Stainess Steel 304 ,316
- Heating:Electricity ,Gas ,Steam
- Delivery:10 Days
- Packing:Wooden Box
- MOQ:1set
- Transport Package:Standard Export Wooden Box
- Specification:ISO
- Trademark:KQ
- Origin:Shanghai, China
- HS Code:8479820090
- Production Capacity:2000set ,Year
Description
Basic Info.
Model NO. KQ-500 Name Electric Kettle Steam Kettle Gas Kettle Jacketed Function Heating and Mixing Capacity 100L to 1000L Mixer Type Mixer , Mixer with Scraper Application Cooking , Pasteurizing and Mixing Liquid Material Food Grade Stainess Steel 304 /316 Heating Electricity /Gas /Steam Delivery 10 Days Packing Wooden Box MOQ 1set Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai, China HS Code 8479820090 Production Capacity 2000set /YearProduct Description
Electric Kettle Steam Kettle Gas Kettle Jacketed Pot Cooking KettleMaterial: Food Grade Stainless Steel 304 / 316 /316L (Polished and Mirror )
![Electric Kettle Steam Kettle Gas Kettle Jacketed Pot Cooking Kettle](http://www.522996.com/uploads/image/2021/46/3e/20/44/60c047c5a3aeff41e1de03820363d3ff.jpg)

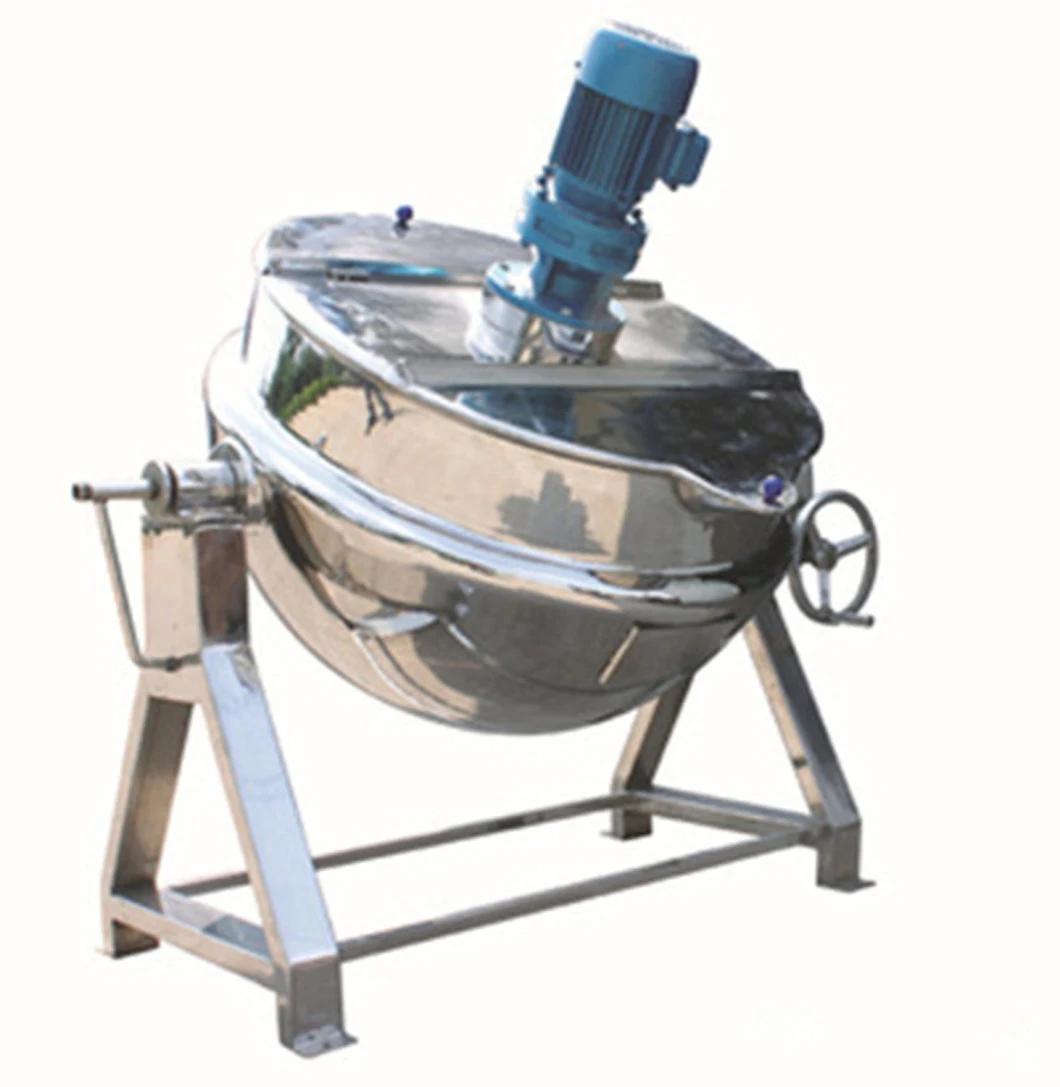

Electric Heating Jacketed kettles
Stainless steel double-layered boiler/kettle, used for heating, pasteurizing, cooking, mixing juice, sauce, fruit jam and processing meat, food, Candy, pharmacy, dairy, liquor, cake, drink, candied fruit, etc
Material: SS304
Heating by Electricity
* Type: With Jacketed wall
* Internal shell thickness: 3 or 4 mm, SS304
* Jacket thickness: 3 or 4mm, SS304
![Electric Kettle Steam Kettle Gas Kettle Jacketed Pot Cooking Kettle](http://www.522996.com/uploads/image/2021/aa/b0/32/cd/b6e5fb80fae34abbafe59a15b9f6f6bd.jpg)

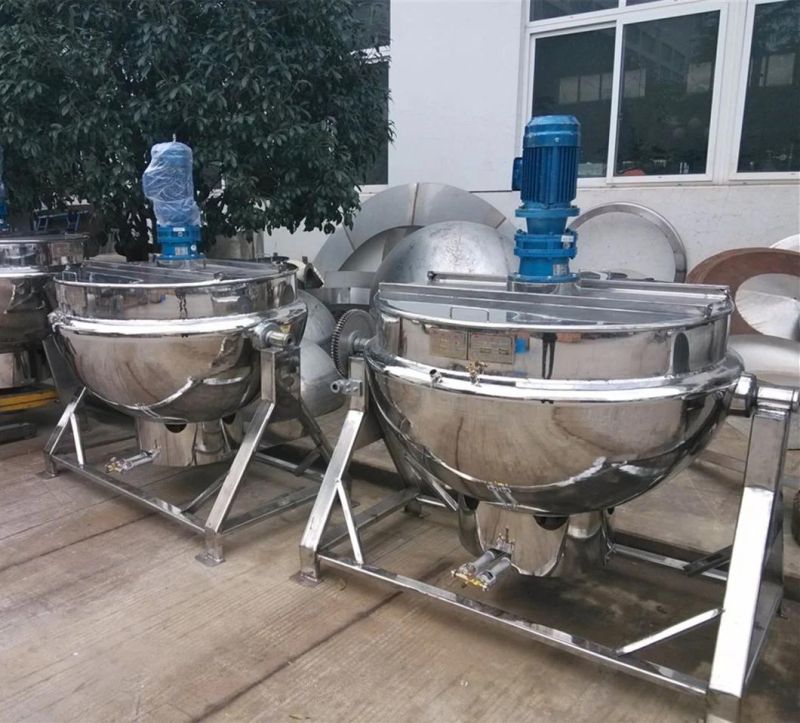

Capacity: 300L~1000L
![Electric Kettle Steam Kettle Gas Kettle Jacketed Pot Cooking Kettle](http://www.522996.com/uploads/image/2021/59/67/b6/17/08bd18d981a4f280afcda9dbedfbb976.jpg)
TankCapacity(L) | 200, SS304 | 300, SS304 | 500, SS304 | 1000,SS304 |
REV | 36r/min | 36r/min | 36r/min | 36r/min |
Electric motor of the agitator | 0.55KW,380v,50hz | 0.75KW,380v,50hz | 0.75KW,380v,50hz | 1.1KW,380v,50hz |
Electric heating tube power | 15KW,380v,50hz | 18KW,380v,50hz | 24KW,380v,50hz | 45KW,380v,50hz |
Heating Area(M2) | 0.9 | 1.1 | 1.9 | 4.5 |
Material Input/output(DN MM) | 38 | 38 | 38 | 50 |
OUTSIDE DEMENSION(L*W*H)MM | 900*900*1600 | 1000*1000*1500 | 1100*1100*1700 | 1400*1400*1750 |
![Electric Kettle Steam Kettle Gas Kettle Jacketed Pot Cooking Kettle](http://www.522996.com/uploads/image/2021/c3/19/96/cf/8ecba86aa9a503c80bb496ed7e3bfb52.jpg)
![Electric Kettle Steam Kettle Gas Kettle Jacketed Pot Cooking Kettle](http://www.522996.com/uploads/image/2021/c6/73/c8/b7/9b5b314d3cc0c287d167745f09dd91c8.jpg)
