• Model NO.：KQ Series
• Application：Milk
• Customized：Customized
• Name：Fresh Milk Tank Milk Cooling Tank Milk Storage Ta
• Material：Stainless Steel 304 ,316
• Milk Cooling Tank Compressor：USA Copeland
• Refrigerant：R404A , R22
• Milk Tankapplication：Cooling and Storage Fresh Milk
• Milk Transportation Tank：Also Provided
• Milk Vat：with Air Compressor
• Delivery：10 Days
• MOQ：1 Set
• Origin City：Shanghai China
• Motor Brand：Siemens ,ABB ,China Brand
• Cleaning：CIP Cleaning Ball
• Spare Parts：Available
• Packing：Wooden Box
• Filter：Yes
• Transport Package：Wooden Box
• Specification：SANITARY, FOOD GRADE
• Trademark：KAIQUAN
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：1000 to 10000L

TypeKQ-0.5T
Vertical typeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T

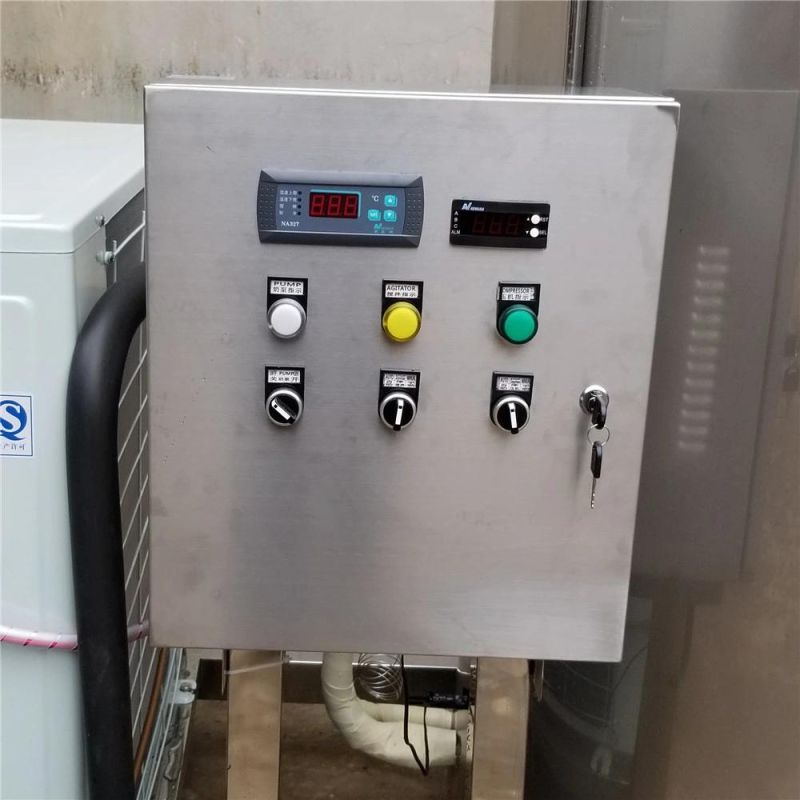

 Laying typeCapacity(L)50010002000300050006000800010000LRefrigerating Output(W)90009000150002200037000380005500074000Refrigerating  Fluid(R)R22/404AR22/404AR22/404AR22/404AR22/404AR22/404AR22/404AR22/404AInsulating Property≤1ºC/4h≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.83.85.97.510.5111319.2Voltage220V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15001800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T0.6T 0.75T0.9T1.1T1.3T1.8T2.05TAdopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.


The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.

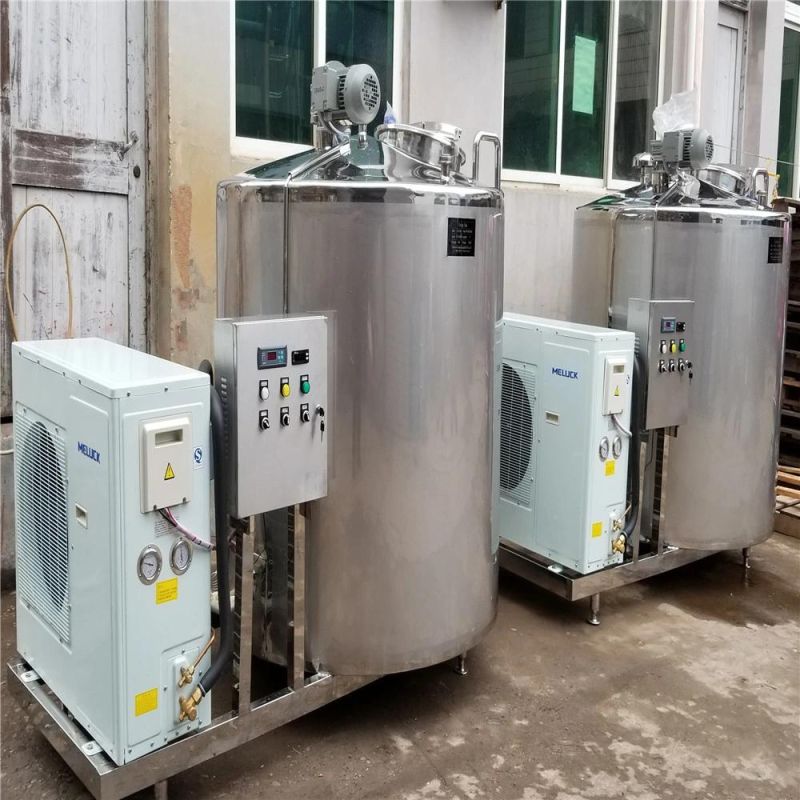

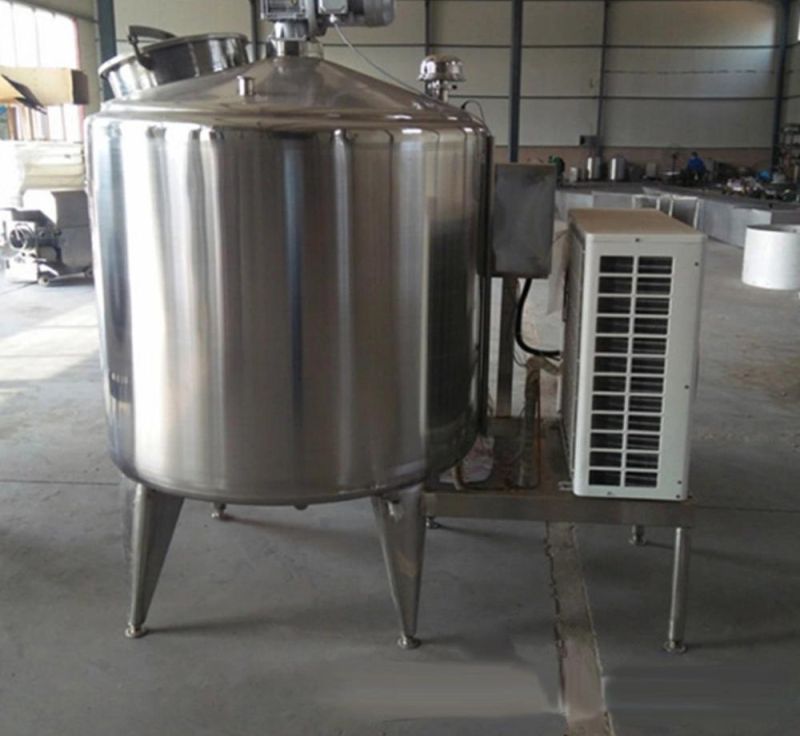

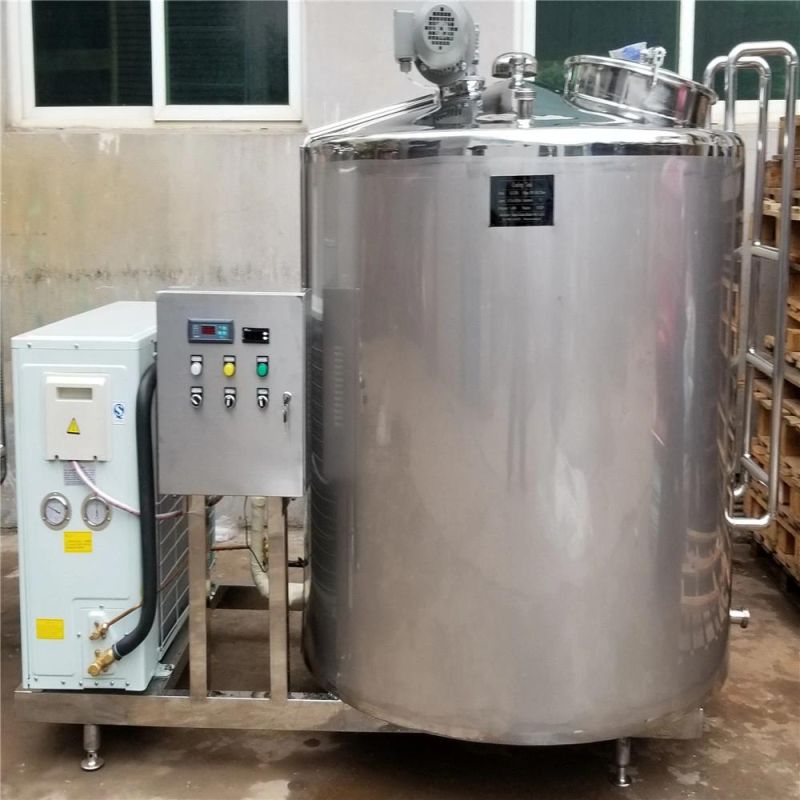

Fresh Milk Tank Milk Cooling Tank Milk Storage Tank
