• Model NO.：Wheat Bran Finishers Machine
• Transport Package：Wooden Box
• Trademark：COYO
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. Wheat Bran Finishers Machine Transport Package Wooden Box Trademark COYO Origin China Production Capacity 50000PCS/Year

Product Description

Product Description



The bran beater is used in flour mills to process the materials sifted from each grinding material of the skin mill system and the bran screened from the last grinding material of each system. It can reduce the mill load, increase the system output and increase the flour yield.



Feature



The structure of the machine is composed of casing, frame, rotor, screen and transmission.

The shell and frame are made of 4mm thick steel plate cold folded and welded. A feed inlet is set at one end of the shell top, and a vent is set at the front of the top and under the rear wall panel. When the upper suction is used, the suction outlet is installed on the vent in front of the top. When the lower suction is used, the air suction outlet is installed on the conveying pipe of the collecting hopper, and there is an observation door on the front wall panel; At the same time, the screen can be disassembled and disassembled in this door.

The rotor is composed of main shaft, striking plate and punching frame. The rotor runs at a high speed. Depending on the proper spacing between the beater and the sieve, the flour in the material fed into the machine is separated, and the material on the sieve is pushed to the outlet by the shifting teeth with a twist angle of 15 ° on the beating plate.

The screen part is composed of screen frame and screen. Due to the change of the gap distance between the plate and the screen, the screen can automatically generate micro vibration, which can automatically clean the screen opening.

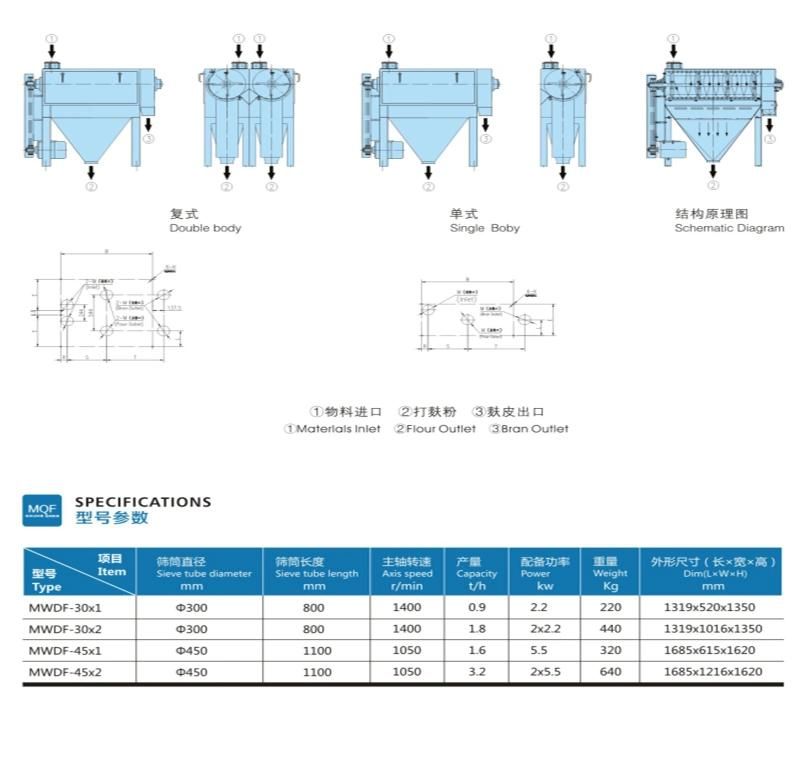

Technical Parameter
