• Model NO.：Cleaning Purifier Machine
• Transport Package：Wooden Box
• Trademark：COYO
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. Cleaning Purifier Machine Transport Package Wooden Box Trademark COYO Origin China Production Capacity 50000PCS/Year

Product Description

Product Description



Flour cleaning machine is a kind of grain processing machinery. A machine for separating pure and more pure endosperm particles from the material ground by a mill. It is composed of a screen body with two-way two-layer screen surface or double screen body with two or three-layer screen surface, equipped with air duct, air chamber, etc. each layer of screen surface is composed of four screens with different screens in series. The screen body is supported by four rubber springs of different sizes and driven by eccentric vibration motor. From the bottom of the screen body, the airflow passes through 2 or 3 layers of screen surface upward and enters 32 air chambers on the upper part of the screen body. The air volume is adjusted by the interface of the two air chambers. The combined effect of vibration, screen and air flow can make the material entering the cleaning machine loose and be roughly divided into three layers according to the specific gravity, particle shape, surface properties and aerodynamic characteristics. The light bran is absorbed and the endosperm with husk is exported as the material on the screen and sent to the pulverizer for recycling to remove the coated embryo milk particles; The pure and purer endosperm particles are taken as the sieve residue, and then enter the mill to further grind into flour. Now the main widely used 49 cleaning machine and 60 cleaning machine.



Feature



Model:FQFD49×3×2

Capacity:0.5-2.8t/h(Coarse powder 2800 ,Fine   powder 800)

Power:2×0.18

Air volume(m3/h):2400-4200

Screen width(cm):490×2

Size:2700×1290×1750

Weight:1020



Model:FQFD60×3×2

Capacity:0.7-3.3t/h(Coarse powder 3300 ,Fine   powder 960)

Power:5×0.25

Air volume(m3/h):3000-5100

Screen width(cm):600×2

Size:2700×1490×1850

Weight:1220

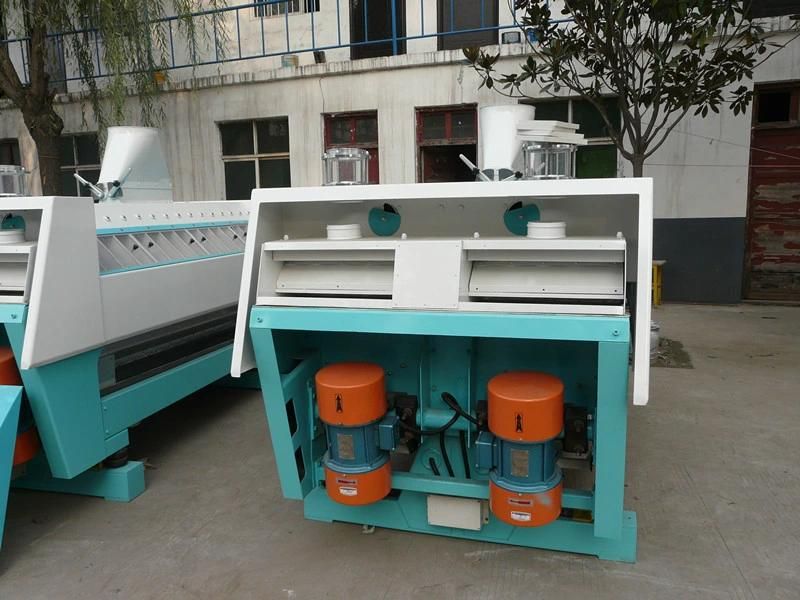

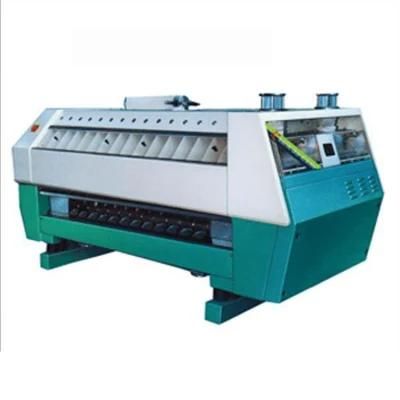

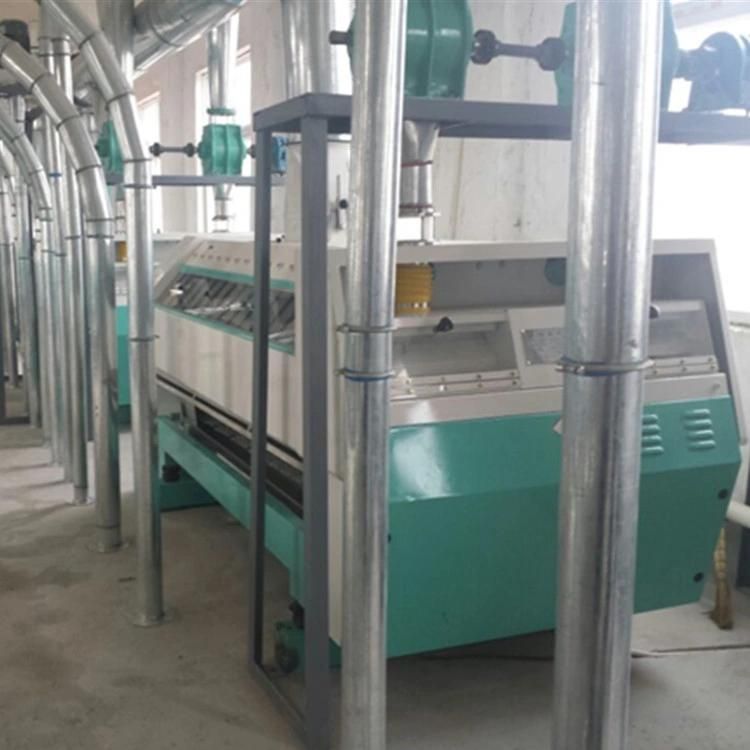

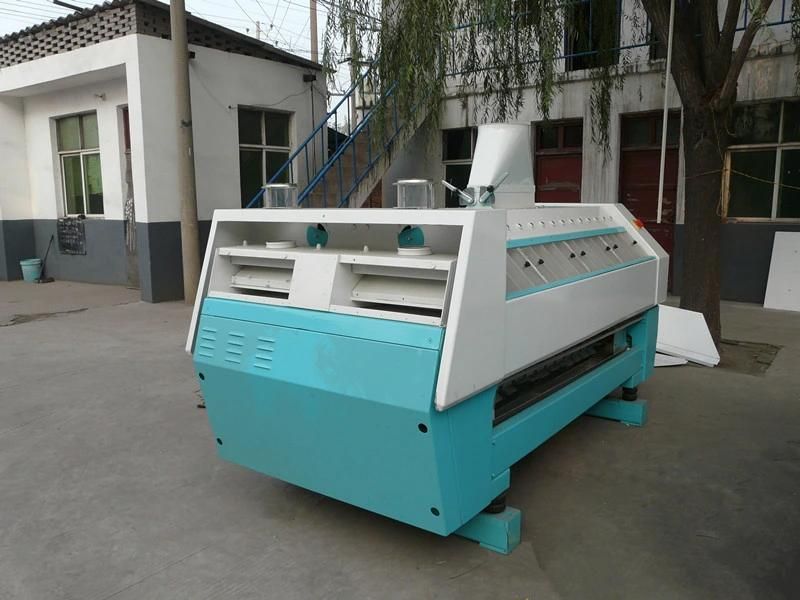

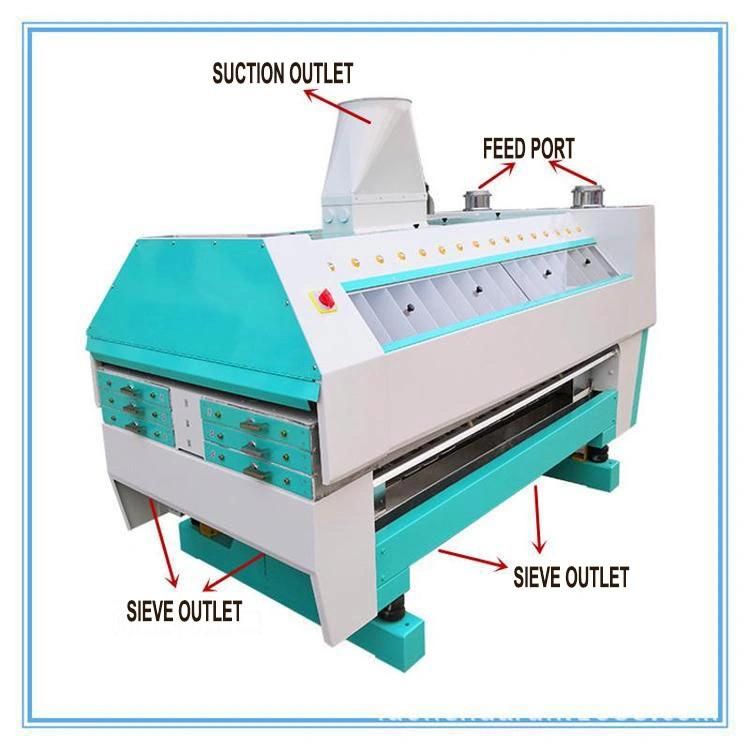

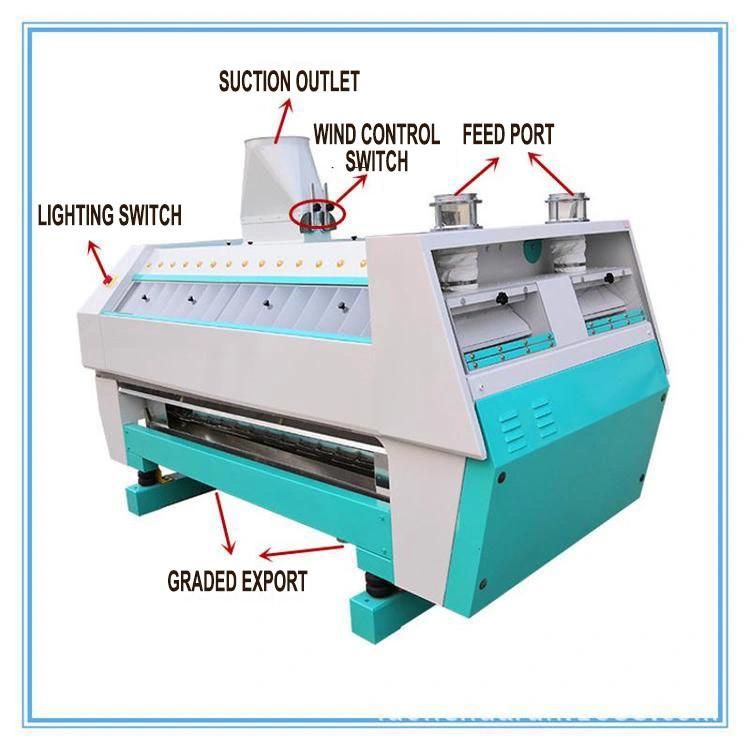

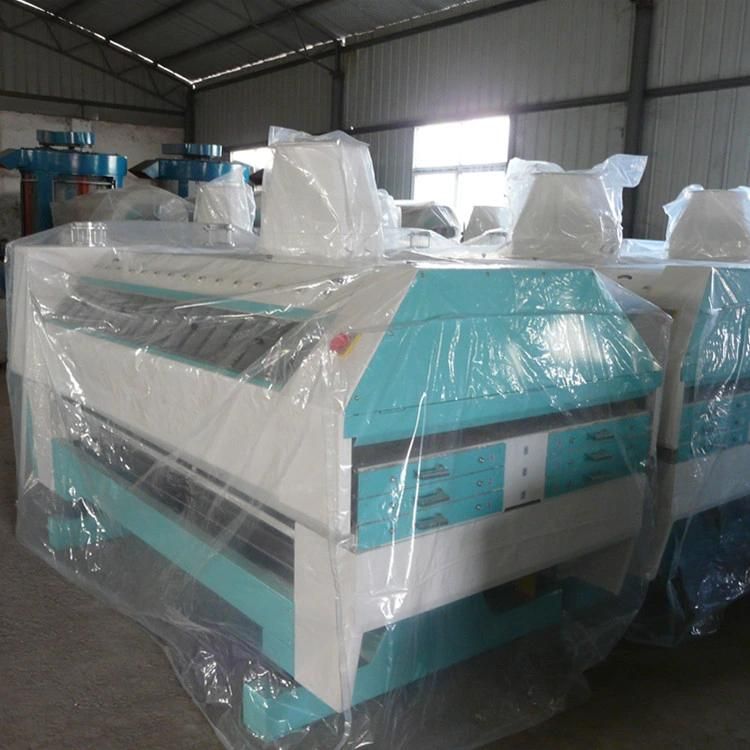

Product Picture
