• Model NO.：GJB
• Name and Description：Food Grade Stage 3000L 4000L 5000lpiston Homogeniz
• Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Product Material：Sanitary Stainless Steel 304,316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Certificate：Ce
• Voltage ,Hz,Phase：Customized Electricity Motor
• Stage：Two Stage
• Working Life：More Than 10years
• Spare Parts：Provide
• Packing：Wooden Box
• Warranty：One Year
• After Sales Service：Yes
• Motor：Siemens ,ABB,China Brand
• Piston：3 Piston , 4piston
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Name and Description Food Grade Stage 3000L 4000L 5000lpiston Homogeniz Appication Milk , Juice, Beverage, Butter, Honey, Cream Product Material Sanitary Stainless Steel 304/316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Certificate Ce Voltage ,Hz,Phase Customized Electricity Motor Stage Two Stage Working Life More Than 10years Spare Parts Provide Packing Wooden Box Warranty One Year After Sales Service Yes Motor Siemens ,ABB,China Brand Piston 3 Piston / 4piston Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

Food Grade Stage 3000L 4000L 5000LPiston Homogenizer Price

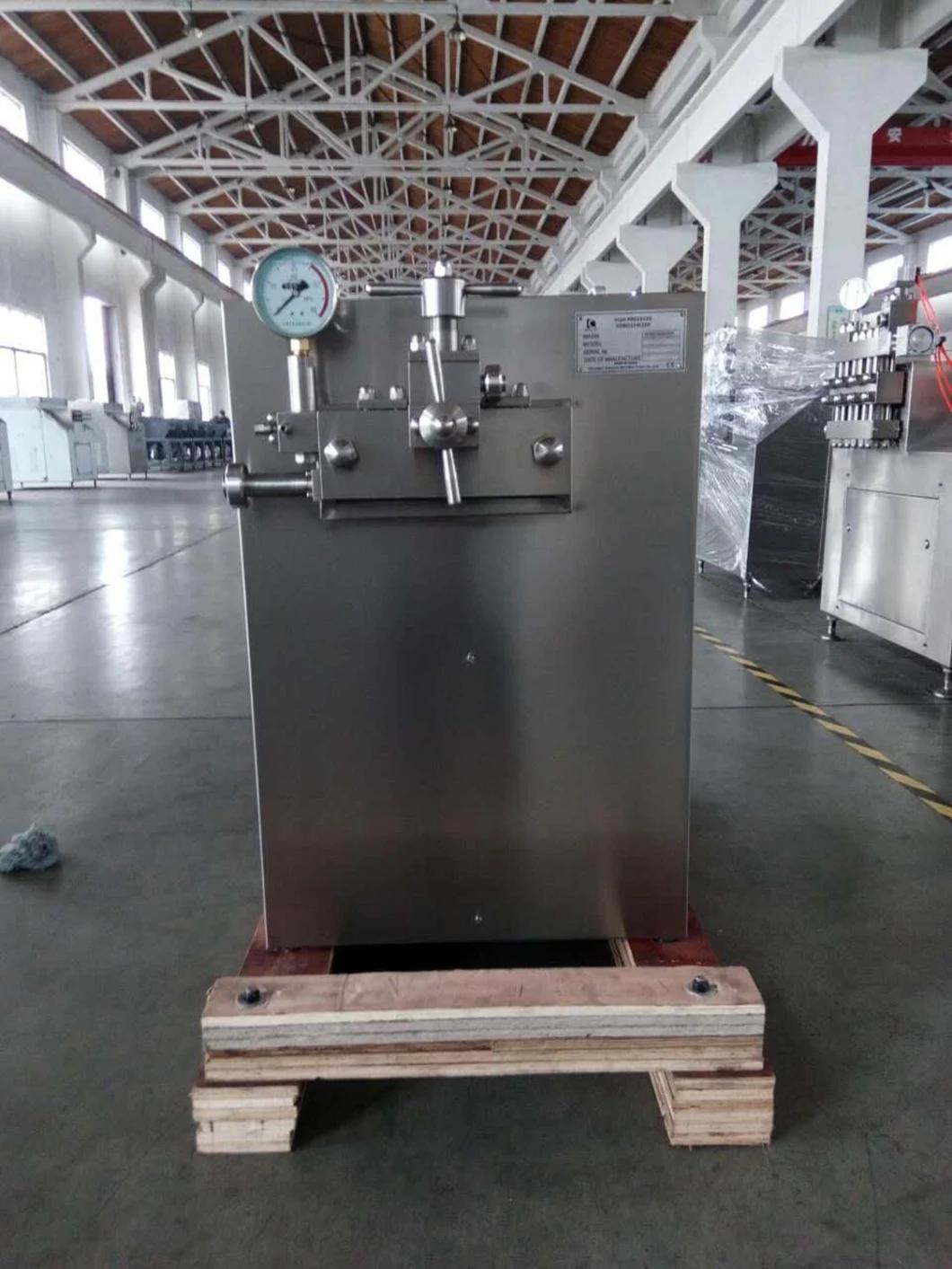

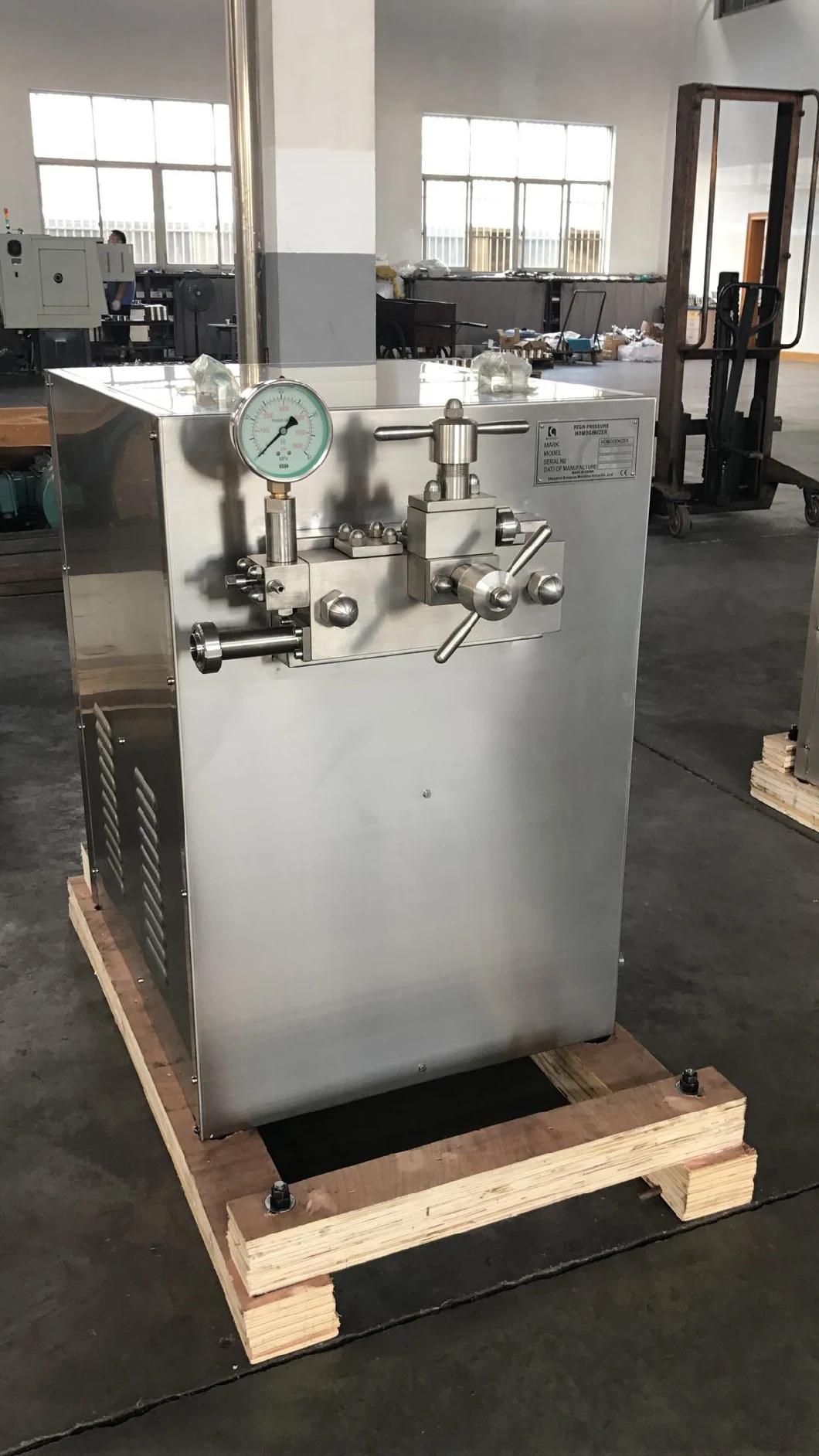

GJB high pressure homogenizer
Ice Cream Homogenizer Small Homogenizer Dairy Homogenzier Juice Homogenizer
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us,  the 250bar milk homogenizer,
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer,  40MPA homogenizer


High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

Food Grade Stage 3000L 4000L 5000LPiston Homogenizer Price .
