• Model NO.：GJB
• Name and Description：Food Grade Ce Certificate Stainless Steel Piston Y
• Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Material：Food Grade Stainless Steel 304,316
• Working Pressure：25~100MPa
• Motor Power：5.5-110kw
• Flow Ralte：500~10000L,H
• Certificate：Ce
• Voltage：380V50Hz 3phase
• Homogenizer Pressure：Two Stage
• Working Life：More Than 10 Years
• OEM：Yes
• Packing：Wooden Box
• Warranty：One Year
• Motor Brand：Siemens ,ABB, China Brand
• Piston：Two Piston
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Name and Description Food Grade Ce Certificate Stainless Steel Piston Y Appication Milk , Juice, Beverage, Butter, Honey, Cream Material Food Grade Stainless Steel 304/316 Working Pressure 25~100MPa Motor Power 5.5-110kw Flow Ralte 500~10000L/H Certificate Ce Voltage 380V50Hz 3phase Homogenizer Pressure Two Stage Working Life More Than 10 Years OEM Yes Packing Wooden Box Warranty One Year Motor Brand Siemens ,ABB, China Brand Piston Two Piston Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

Food Grade CE Certificate Stainless Steel Piston Yogurt Homogenizer Price
Yogurt Homogenizer Ice Cream Homogenizer Paste Homogenizer Honey Homogenizer
GTB high pressure homogenizer pump series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.



The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.

The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

Do not use the product to handling the suspending liquid or the high viscosity liquid. (viscosity less than 0.2 PA. S)

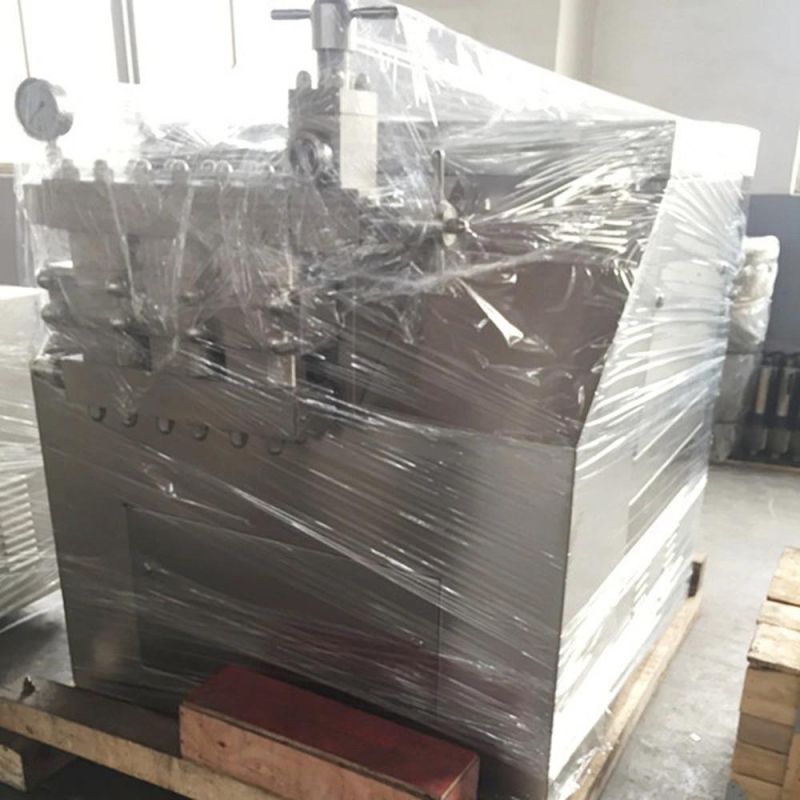

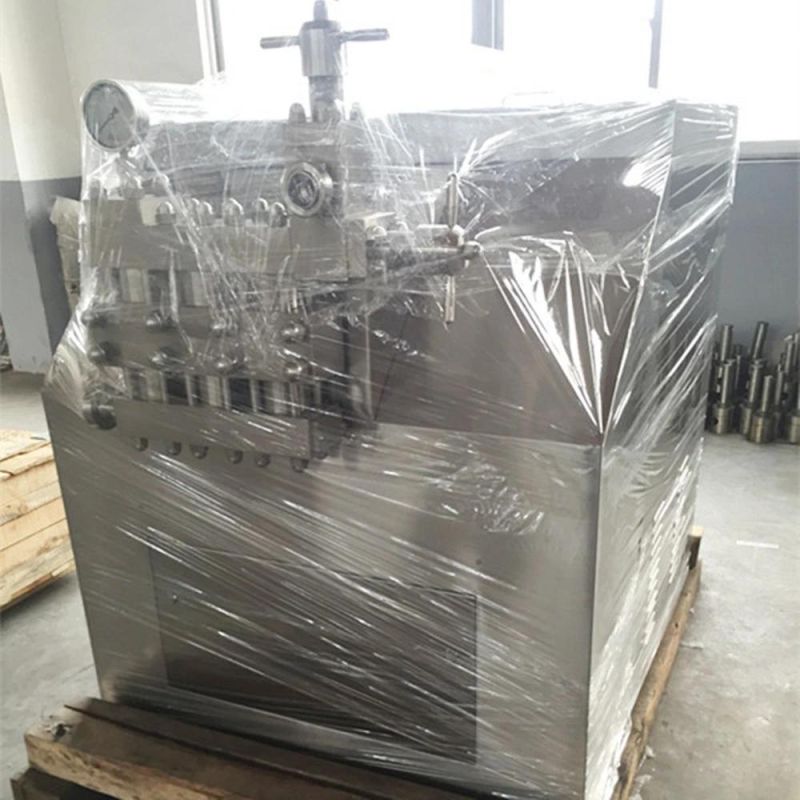

GJB high pressure homogenizer
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us,  the 250bar milk homogenizer,

CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer,  40MPA homogenizer
Tea drinks homogenizer,  juice homogenizer
homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

Food Grade CE Certificate Stainless Steel Piston Yogurt Homogenizer Price .
